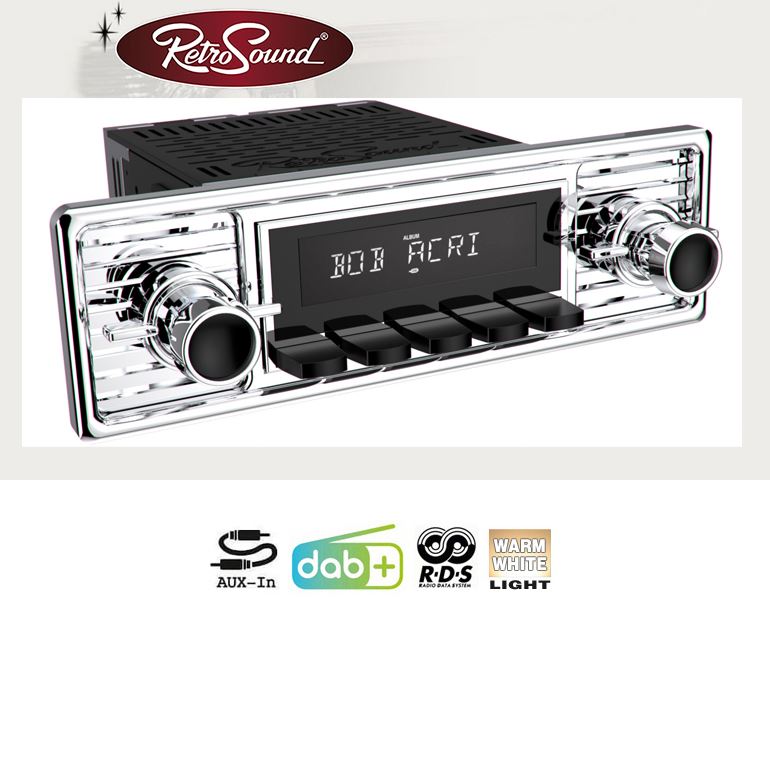

RetroSound RSD-GULLWING-1DAB - "MOTOR-1DAB"-DAB+ Complete Set "Gullwing"

RETROSOUND "MOTOR-1DAB" DAB+ complete set "Gullwing" with accessories

RSD-GULLWING-1DAB

The "Model MOTOR-1DAB" is the entry-level model with DAB+ digital radio from RetroSound. It is visually identical to the cheaper models and has DAB+ and RDS in addition to their equipment.

EQUIPMENT

• DAB+ digital radio
• FM radio with RDS capabilities
• AUX input (3.5mm) on the back of the device

SCOPE OF DELIVERY

• MOTOR-1DAB RETROSOUND DAB+ radio module
• RETRO-RADIO-CB RETROSOUND display unit (chrome with black buttons)
• RSP-308 RETROSOUND Front Panel (Vchrome)
• RSP-309 RETROSOUND Inserts (Chrome)

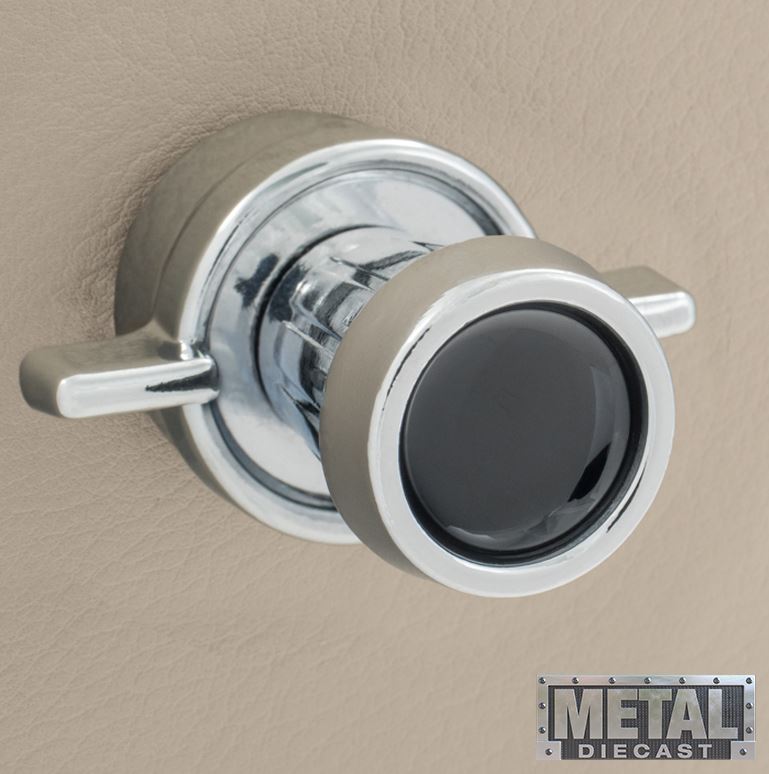

• RSP-071 RETROSOUND metal control knob (black/chrome)
• RSP-054 RETROSOUND metal operating ring (chrome)
• RSP-294  RETROSOUND ISO mounting kit for DIN slot
• H-NUMBER confirmation from TÜV Süd

OPTIONAL ACCESSORIES

DAB1 - AMPIRE DAB+ antenna splitter Passive rod or telescopic antennas were installed in most classic vehicles. These are also suitable for DAB+ radio reception. In this case, order the DAB1 antenna splitter at the same time. For glass antennas or electronically amplified roof antennas, you must install a separate DAB+ antenna.

BTR200- AMPIRE Bluetooth receiver for the 3.5mm AUX input You need the BTR200 receiver so that you can also connect your smartphone to the car radio via Bluetooth. This is plugged into the AUX input on the back of the device. The music is then selected via the smartphone.

RS-TOOL - AMPIRE 1/2" tool for RetroSound control knobs The union nuts of the two control knobs have a wrench size of 1/2 inch. The right tool is not common in Europe. So that you can during the installation If you do not cause any damage with the wrong tool, you should order the RS-TOOL at the same time.

H MARK

Any concerns that your H-license plate might be endangered by the installation of a RetroSound car radio are unfounded. In the download you will find a confirmation with the approval of the entire AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord, Dekra, KÜS, GTÜ) stating that the RetroSound Model Zuma" and the RetroSound Model Two" including vehicle-specific panel and control buttons may be installed in classic cars with an H license plate or do not prevent the allocation of the H license plate!

TECHNICAL EQUIPMENT

• warm white LCD lighting
• DAB+/FM/MW radio receiver with RDS and 30 preset stations
• Tuner with European odd and even radio frequencies
• Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
• 3 equalizer programs plus individual bass/treble/fader/balance setting
• XBAS loudness function

EXTENSION POSSIBILITIES

• AUX input (stereo)
• Separate switch-on line for motor antenna and amplifier

TECHNICAL DATA RADIO PART

• FM European broadcasting Frequency range 87.5-107.9 MHz. (0.05 MHz. in steps)
• MW frequency range 530-1710 kHz (9 kHz. in steps)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATA

• Dimensions radio base unit 101x51x136mm
• Power supply 10.5 to 14.4 volts
• Maximum power consumption 15 amps
• Quiescent current 3.5 mA
• Output power 12V, 4 ohms, <1% distortion: 4x15 watts sinus
• Speaker impedance 4-8 ohms
• Input sensitivity AUX1 >300 mV / 6 kOhm

E-APPROVED

• E-approval e13 03 10006 e13*72/245*2006/96*10006*00
