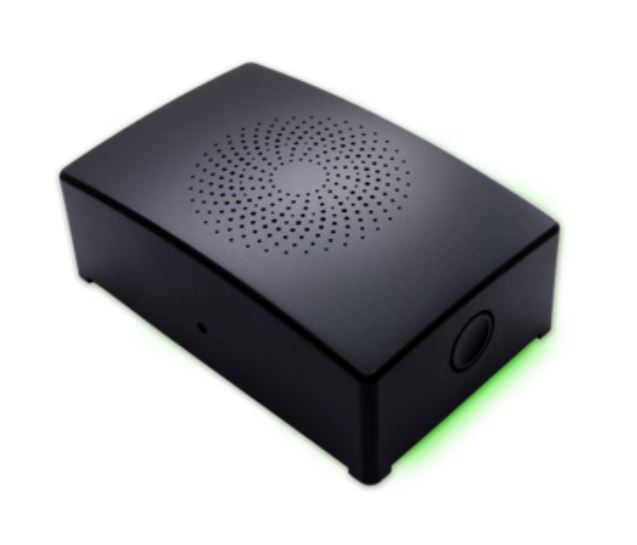

Thitronik G.A.S.-pro III CO - gas warning system generation 2020

Thitronik G.A.S.-pro III CO - Generation 2020

It can do everything that the standard G.A.S.-pro can do, but in many ways it can do some things much better.
The G.A.S.-pro III will even be available in two basic setups: one, as is well known, with an integrated liquid gas or anesthetic gas sensor and one with an integrated CO sensor.
Both variants can be combined with another gas or CO sensor.
Otherwise, the G.A.S.-pro III represents a technical quantum leap:
Its power consumption drops to a minimum of 26 mA with an integrated liquid gas/KO gas sensor, and to just nine milliamperes with an integrated CO gas sensor.
The internal siren increases to a piercing 94 dB, and an integrated humidity sensor optimizes the already precise measurement when there is high humidity in the vehicle or when there is breathing air in the immediate vicinity of the sensor. In addition, an alcohol filter function (liquid gas/KO gas sensor) eliminates false alarms caused by alcohol in the air.
Last but not least: Thanks to the integrated radio unit, the new G.A.S.-pro III does not have to be connected to the control center, only to the vehicle's electrical system. Finally, connect to the control center via easy add. Done.

• Gas detection according to DIN EN 50291-2 (CO version)
• CI bus capable
• Detects propane and butane, anesthetic gases or
• carbon monoxide (depending on equipment)
• permanent temperature compensation
• regular self-test to determine
• functionality
• Alarm output/siren output
• Auto Sense input
• Alcohol filter function
• Buttons for "Pause" and "ON/OFF"
• LED display for both sensors

Technical data

• Power supply 12/24V DC
• Current consumption 9 mA (CO)/26 mA (liquid/KO gas)
• Sensor inputs 1 × internal, 1 × external
• Sensitivity 50 ppm (CO)/700 ppm (butane)
• Sound pressure 94 dB (internal siren)
• Temperature range -20°C to +60°C
• Dimensions (W × H × D) 61 × 97 × 35 mm
• Weight approx. 74 g
