Ampire AS100 - Sensor Abschleppschutz für Alarm-Anlagen

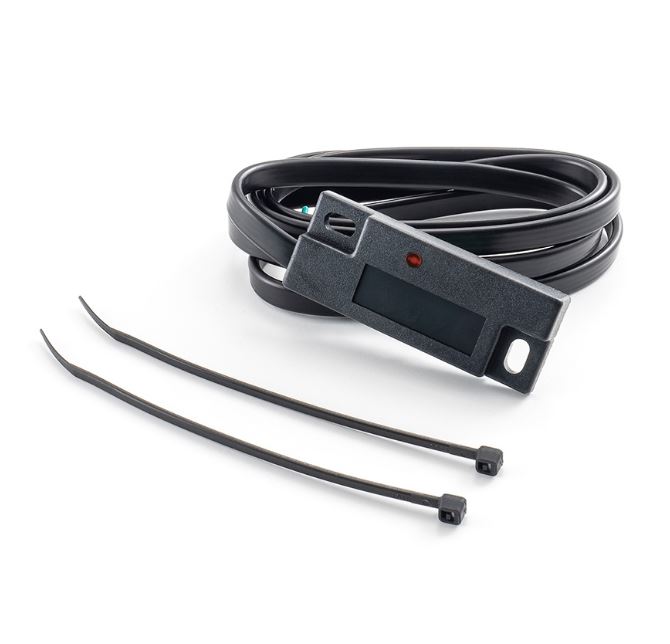

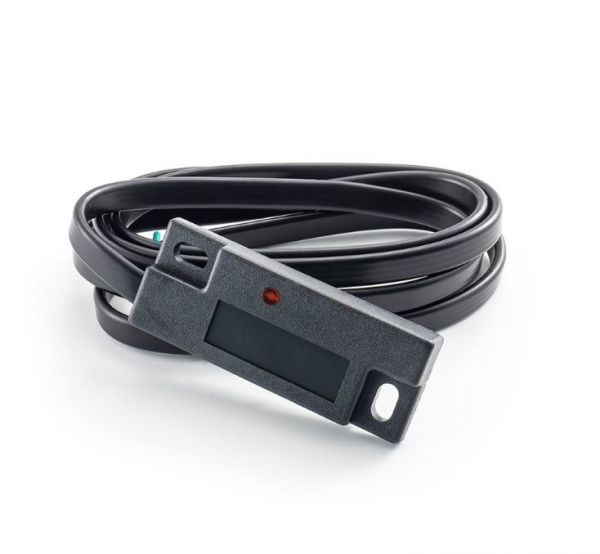

The AS100 is a digital tilt sensor or position sensor. This sensor, developed by Ampire Electronics, works on a multi-dimensional level. This means that no matter whether you tilt the vehicle forwards, backwards or sideways, the alarm will sound. The sensor also detects movement in or against the direction of travel if the vehicle is moving. This sensor adjusts itself and never needs to be readjusted. Of course it also detects if you are parking on a slope and readjusts its initial position every time the alarm system is activated. The best place to install the sensor is under the driver or passenger seat, far outside the sill area. The sensor is absolutely insensitive to heat sources or loud sound sources.

TECHNICAL DATA

• Operating voltage: 12 Volt DC
• Power consumption: <4.5 mA
• Sensitivity of alarm triggering: <1.5°.
• Switch-on delay: 60sec.
• Load capacity alarm output: max.50mA
• Sensor output: short earth pulse on alarm
• Working temperature: -35°C to + 80°C
• Dimensions: 55 x 21 x 7 mm
• E-approval: E20 97RA-01 1533

IMPORTANT NOTE

The AS100 must not be connected to a constant power supply. It must only be supplied with power when the alarm system is armed. Please use the "ground when set" output of the alarm system. The sensor calibrates itself in the first 60 seconds.

NOTE

The AS100 is the successor of the 507T and 507M tilt sensor.
