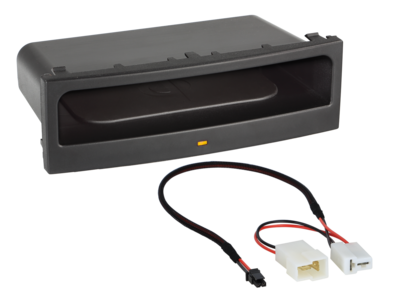

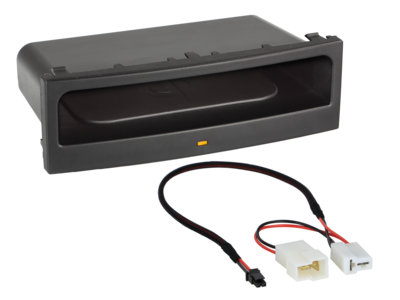

Product information ACV INBAY - Inductive charging shelf Mercedes Sprinter (W906)/VW Crafter

Made in Germany 10 Watt
This storage compartment supports wireless inductive charging of smartphones using INBAY.
All INBAY products work with it the globally established Qi standard for wireless charging.
All smartphones certified by the international Wireless Power Consortium are compatible with INBAY.
INBAY meets the following technical standards:

• Qi certified by the Wireless Power Consortium
• E-test mark according to ECE regulations > 10R - 05 15197
• EMC standard > FMC 1278
• FOD - "foreign object detection" - foreign body detection

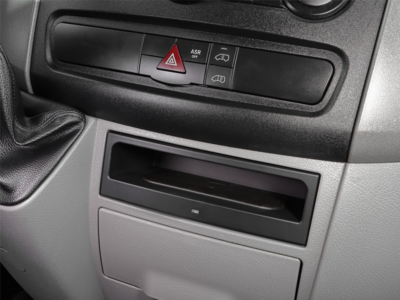

INBAY in the vehicle:

• No disruptions to the vehicle bus system
• No disruptions to the vehicle electronics
• No interference with AM/FM/DAB+ reception

Connection:

• Mercedes Y-cable plug & play

For the following vehicles:
Mercedes

• Mercedes Sprinter (W906) 04/2006 - 08/2013
• Mercedes Sprinter (W906) 08/2013 - 05/2018

VW

• VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
• VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Color:

• black

Size of smartphone with protective case:

• 163mm x 95mm max.

Input voltage:

• +12V DC

Charging voltage:

• 5V,9V

Charging current:

• 1.2A max.

Charging power:

• 5W compatible smartphones > 5W max.
• 7.5W compatible smartphones > 7.5W max.
• 10W compatible smartphones > 10W max.
• Apple iPhone > 7.5W max.
