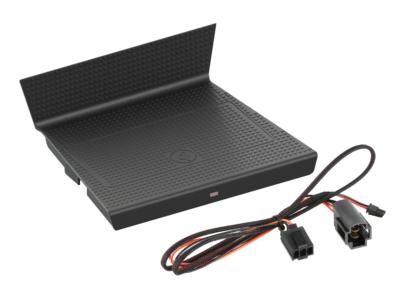

Product information ACV INBAY - Inductive charging shelf Seat Leon 11/2012-12/2016

Made in Germany 10 Watt

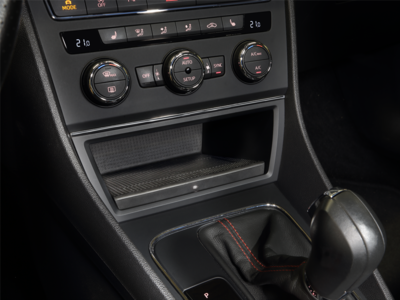

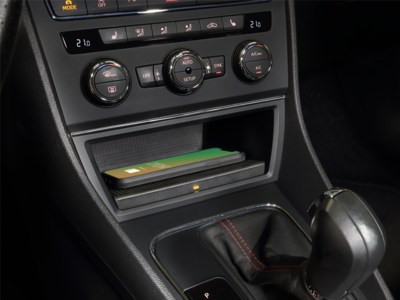

This storage compartment supports wireless inductive charging of smartphones using INBAY.
All INBAY products work with the globally established Qi -Standard for wireless charging.
All smartphones certified by the international Wireless Power Consortium are compatible with INBAY.
INBAY meets the following technical standards:
< /span>

• Qi certified by the Wireless Power Consortium
• E-test mark according to ECE regulations > 10R - 05 15197
• EMC standard > FMC 1278
• FOD - "foreign object detection" - foreign body detection

INBAY in the vehicle:

• No disruptions to the vehicle bus system
• No disruptions to the vehicle electronics
• No interference with AM/FM/DAB+ reception

Connection:

• Seat specific Y-cable plug & Play

For the following vehicles:

• Seat Leon (5F) 11/2012 - 12/2016

Colour:

• black

Size of smartphone with protective case:

• 138mm x 75mm max.

Input voltage:

• +12V DC

Charging voltage:

• 5V,9V

Charging current:

• 1.2A max.

Charging power:

• 5W compatible smartphones > 5W max.
• 7.5W compatible smartphones > 7.5W max.
• 10W compatible smartphones > 10W max.
• Apple iPhone > 7.5W max.
