Ampire BS3L - Battery disconnect switch, 250A, 6-48 VDC, control LED, 3 positions NEW

These patented AMPIRE battery isolators are ideal for vintage cars, mobile homes, trucks, boats and much more.
With this switch you can choose between two batteries.

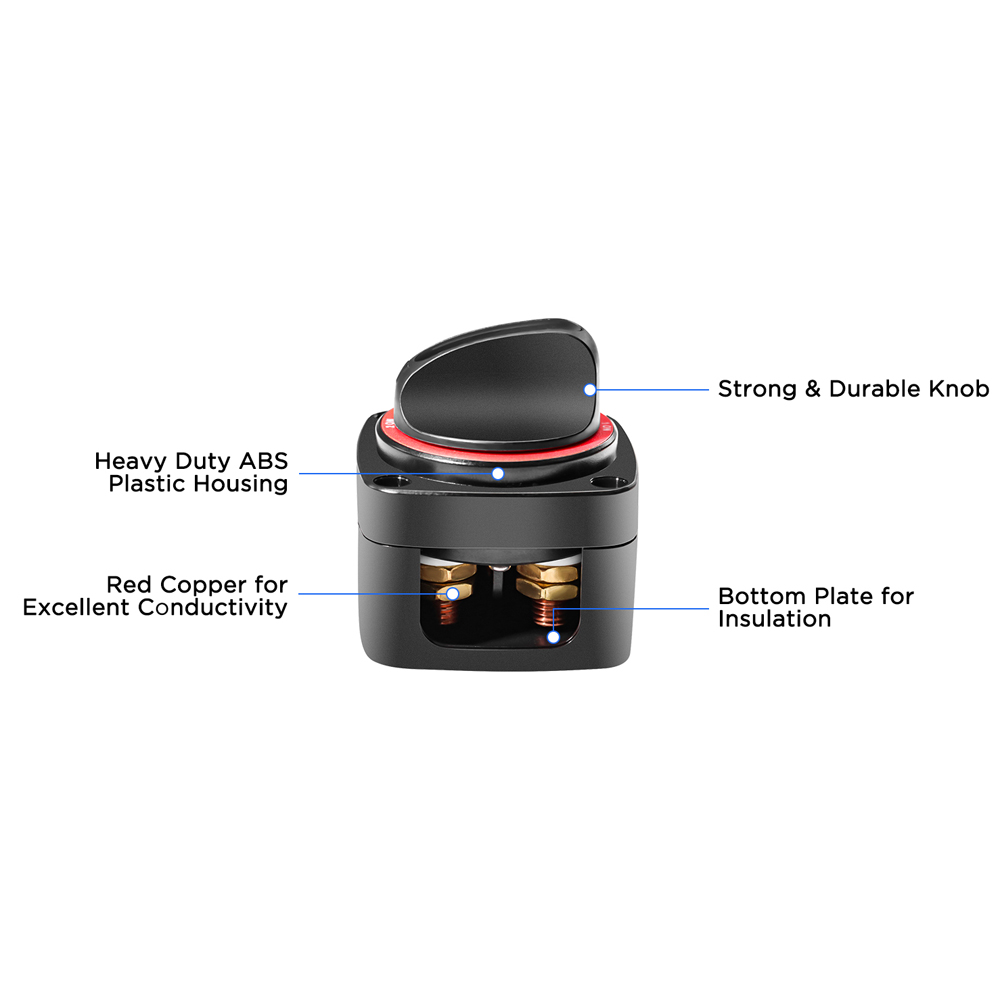

Features

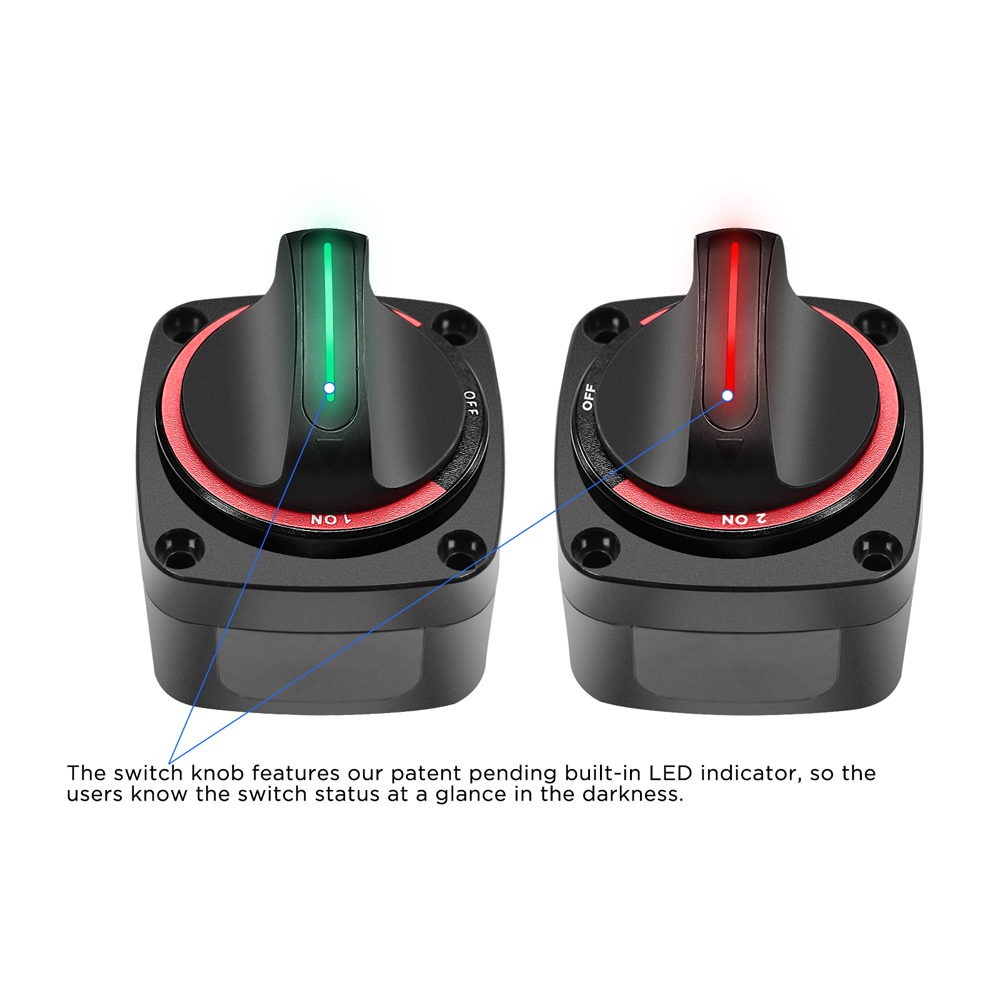

•  Red/green LED display in the handle
•  Robust ABS plastic housing
•  Bolts and nuts made of 100% copper
• including 30mm mounting frame
•  including stainless steel screws for flush/surface installation

Technical data

•  Three Switch positions: ON 1, ON 2, OFF
•  250 amps load capacity (continuous)
•  400 amps load capacity (interruptions)
•  800 amps load capacity (short-term)
•  6 to 48 volts DC operating voltage
•  separate connection for the control LEDs integrated in the handle
• Power consumption of the red control LED: 25mA (battery 1)
•  Power consumption of the green control LED: 6mA (battery 2)
•  Dimensions: 69x69mm (LxW)
•  Installation frame: 30mm
• Height: 45mm or 75mm with installation frame
•  Installation depth: 25mm without installation frame
