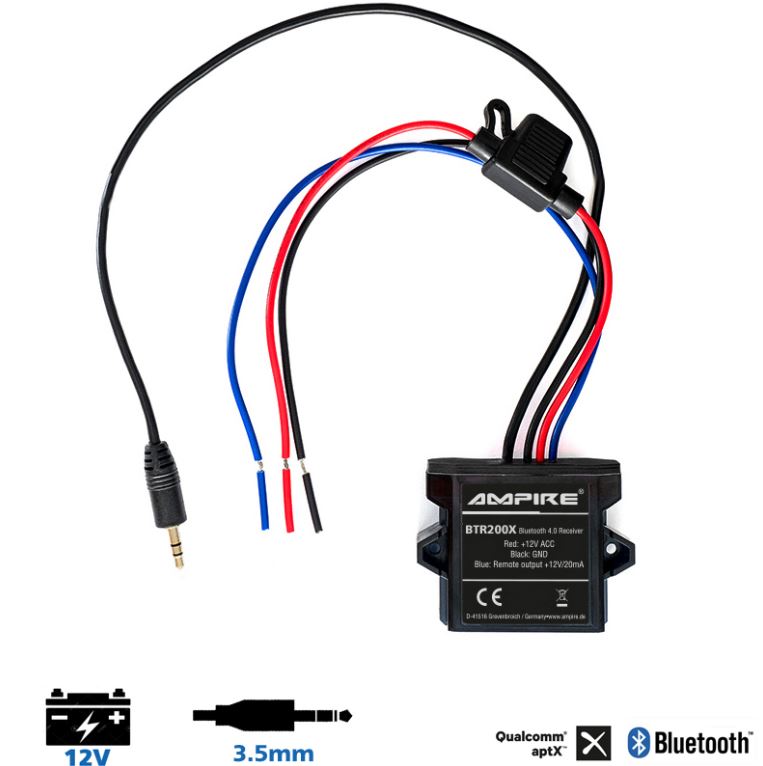

Ampire BTR200X - Bluetooth receiver

If you want to be able to listen to your music, audio books or navigation wirelessly via Bluetooth in your car, then the Bluetooth receivers from the BTR series are the solution. You can retrofit wireless A2DP Bluetooth audio streaming to most navigation and car radio systems using the Bluetooth receivers from Ampire.

The connection is easy to set up and is automatically restored via Bluetooth 4.0. The BTR series uses the Bluetooth protocol for headphones on your smartphone and does not affect the functionality of your Bluetooth hands-free system.

The BTR200X Bluetooth receiver has been developed for navigation and car radio systems with a 3.5mm jack input and a 12 volt electrical system.

Listen to Bluetooth® in CD quality with aptX®

As an alternative to the standard Bluetooth®, we also have receivers with the Bluetooth® aptX® codec. This codec is becoming increasingly popular. If you use devices with the aptX standard, you can significantly improve the sound quality of your Bluetooth streams.

What improves Bluetooth® aptX®

The aptX® codec uses a more efficient method for compressing audio data, which makes better use of the available bandwidth. The prerequisite for aptX® streams is that both the playback device and the transmitter also support Bluetooth aptX®. The function can be recognized by the aptX® lettering on the device. The codec supports common audio formats such as MP3 and FLAC.

Features

• 3.5mm jack plug with 1.0V signal output
• splash-proof, marine certified
• automatic switch-on
• automatic remote output (+12V DC)
• QDL licensed Bluetooth 4.0 CRS I9chip (CSR8635)
• A2DP in the highest EDR specification
• aptX audio codec from Qualcomm®
• BT audio streaming of lossless files such as Wave, Flac, Lossless, etc.
• SSID display name: BTR200
• 10m Range

Smartphone compatibility

• Android
• Apple iOS
• Microsoft

Connections

• Audio output: 3.5mm jack plug
• Power supply: +12V ignition (ACC/K15) with 2A fuse
• Remote output: Blue cable +12VDC/20mA

Technical data

• Voltage: +12V DC
• Current consumption including remote output: <65mA
• Voltage/current remote output: +12V DC, max.20mA
• Bluetooth 4.0
• CSR8635 chip
• aptX audio codec from Qualcomm®
• Frequency range: 20Hz-20kHz
• Encoding: Low Complexity Subband Codec (SBC)
• Bit rate: up to 384 kBit/s (48 kHz sampling)
• Audio output voltage: 1V RMS
• Bluetooth 4.0 / transmission power <10mW EIRP and aptX
• Red cable: +12V (0.459mm² or 26x 0.15mm), 305mm length
• Black cable: ground (0.459mm² or 26x 0.15mm), 305mm length
• Blue cable +12VDC/20mA (0.459mm² or 26x 0.15mm), 305mm length
• Dimensions of the housing: height: 20mm, width: 65mm, length: 50mm

Bluetooth approval

• Declaration ID D025151
• Referenced Qualified Design ID 56386
• Listing Date 08 December 2014

Teaching the device

• Make sure that Bluetooth is enabled on your Device is switched on
• switch on the ignition
• the LED (6) flashes blue (pairing mode)
• to connect, select BTR200X in the Bluetooth menu of your device
• after a successful connection, the LED lights up continuously and a single beep sounds over the audio system

Note

• up to 9 devices can be connected to the BTR200X, but only one device can stream music at a time
• the BTR200X always remembers the last device that was paired and connects automatically after switching on
• a connection to another device must be made manually, as described above
• if the connected device is out of range for more than a minute, the connection is automatically interrupted and the BTR200X goes into pairing mode [the LED (6) flashes]
• can only be used in vehicles and not in continuous operation

Operation

• all settings, such as volume, music selection and play/pause, are made on your device
• the BTR200X can be installed out of sight because it has no controls or buttons that need to be operated
