ATBB 2118.04 - 16V Antenne aktiv - FM/DAB+ Set mit 5m Kabel DIN/SMB

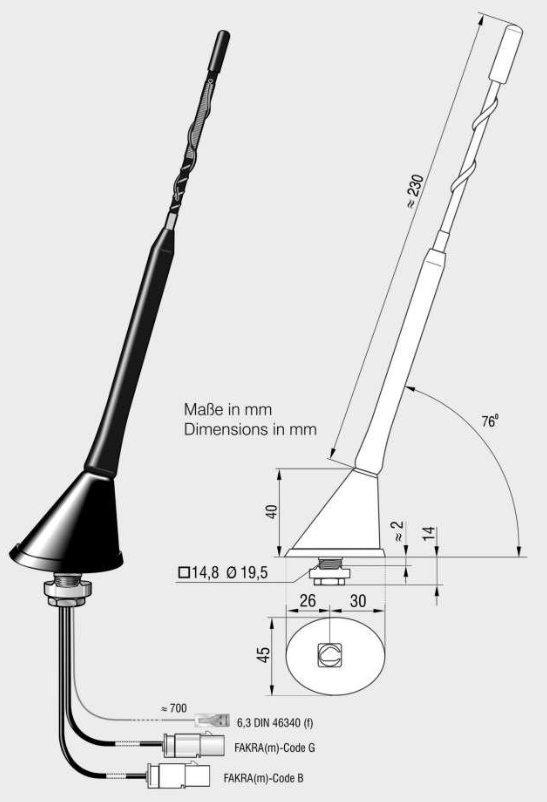

Roof antenna with the following characteristics:

• 16 V antenna with short rod low noise, length approx. 23 cm
• DAB reception, active and low noise in the BAND 3
• FM / FM / AM reception, active and low noise
• 12 Volt power supply optionally via inner conductor of the cable connections (phantom power) or via DIN socket (see ATB formation)
• low installation depth (about 15 mm)
• Amplification: FM: 14dB
• Gain: DAB +: 10dB
• Amplification: AM: 6dB
• Power supply: 12 volts, 25mA
• Cable to antenna:
• Cable: RG 174, AM / FM 145 mm, Fakra plug, white
• Cable: RG 174, DAB + 185 mm, Fakra plug, gray

Extension cable:

• 1 piece 5 meter lead for FM / FM (with Fakra socket and DIN plug)
• 1 piece 5 meter cable for DAB + (with Fakra socket and SMB socket)

Note:
In many vehicles with an active 16V antenna, only a filtered FM signal is transmitted, i. the DAB + signal is outside the transmitted frequency range.

Solution:
Remove active roof antenna and replace it with an active roof antenna like the one mentioned here.

These antennas are also available under the number, ATBB 2118.01 (item no .: 02096211801) without the 2 extension cords.
