ACV 152000-01 - Antennamounting bracket 400mmx400mmx1mm stainless steel V2A

ACV
Preview: ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A Preview: ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A Preview: ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A
ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A
ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A
ACV 152000-01 - Antennenmontageträger 400mmx400mmx1mm Edelstahl V2A

€34.90 *

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • Order number: 02004152000-01
  • EAN 4026724341461
Description Evaluations 0
Description
ACV 152000-01 Antenna mounting bracket Mounting support for installing FM and... more
Close menu
Product information "ACV 152000-01 - Antennamounting bracket 400mmx400mmx1mm stainless steel V2A"

ACV 152000-01

Antenna mounting bracket

Mounting support for installing FM and multifunctional FM 16V or FM Shark II antennas.

For vehicles with GRP or other non-electrically conductive bodies, such as mobile homes, caravans or vehicles with special bodies.

By using this mounting plate, induction currents cause the antenna rod to be reflected to optimize reception.

In standard assemblies, this opposite pole to the reflection is the conductive vehicle body.

For the following application:

  • Antenna mounting on mobile homes

Note:

  • Check the installation ratio for the hole in the vehicle interior before installation
  • Clean and glue the mounting plate and mounting point with suitable agents

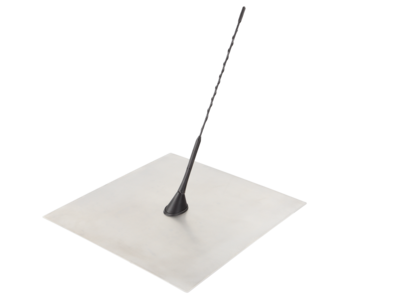

  • Image 2: Installation example with antenna 15-7677850

Properties:

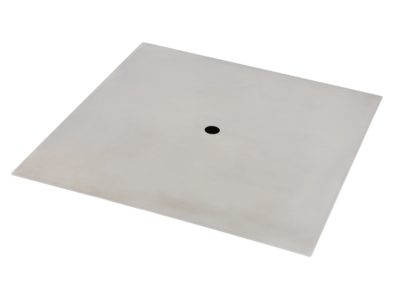

  • Dimensions: L 400mm x W 400mm x H 1mm
  • Hole: Ø 20 mm
  • Corners: rounded / deburred
  • Material: EN 1.4301 / X5CrNi18-10 / 10088-3 / austenitic
  • Chrome-nickel steel
  • Trade name: stainless steel V2A

Suitable for the following antennas:

  • Shark roof antenna AM/FM Shark: 15-7677805

Shark II

  • Roof antenna AM/FM DAB/DAB+ GNSS (GPS/GLONASS) Shark II: 15-7677810
  • Roof antenna AM/FM DAB/DAB+ GNSS (GPS/GLONASS) Shark II: 15-7677890
  • Roof antenna AM/FM GNSS (GPS/GLONASS) Shark II: 15-7677825
  • Roof antenna AM/FM DAB/DAB+ Shark II: 15-7677815
  • Roof antenna AM/FM DAB/DAB+ Shark II: 15-7677892
  • AM/FM Shark II roof antenna: 15-7677830
  • AM/FM Shark II roof antenna: 15-7677894

16V

  • Roof antenna AM/FM DAB/DAB+ GNSS(GPS/GLONASS) 60°rod inclination: 15-7677840
  • Roof antenna AM/FM DAB/DAB+ 60° rod inclination 12V external: 15-7677850
  • Roof antenna AM/FM DAB/DAB+ 60° rod inclination 12V external: 15-7677855
  • Roof antenna AM/FM 60° rod inclination DAB+ suitable passive: 15-7677865
  • Roof antenna AM/FM 60° rod tilt 12V phantom: 15-7677872
  • Roof antenna AM/FM 60° rod inclination 12V external: 15-7677874
  • Roof antenna AM/FM 60° rod inclination passive: 15-7677870
  • Roof antenna AM/FM 76° rod inclination 12V passive: 15-7677878
  • Roof antenna AM/FM 76° rod inclination 12V external: 15-7677880
  • Roof antenna AM/FM 45° rod inclination passive: 15-7677882
  • Roof antenna AM / FM 60° rod inclination 12V phantom: 151324-01
  • Roof antenna AM / FM 60° rod inclination 12V phantom: 151324-02
  • Roof antenna AM / FM 60° rod inclination 12V phantom: 151324-03
quantity: 1 piece
Product group: Antenne/ -adapter
