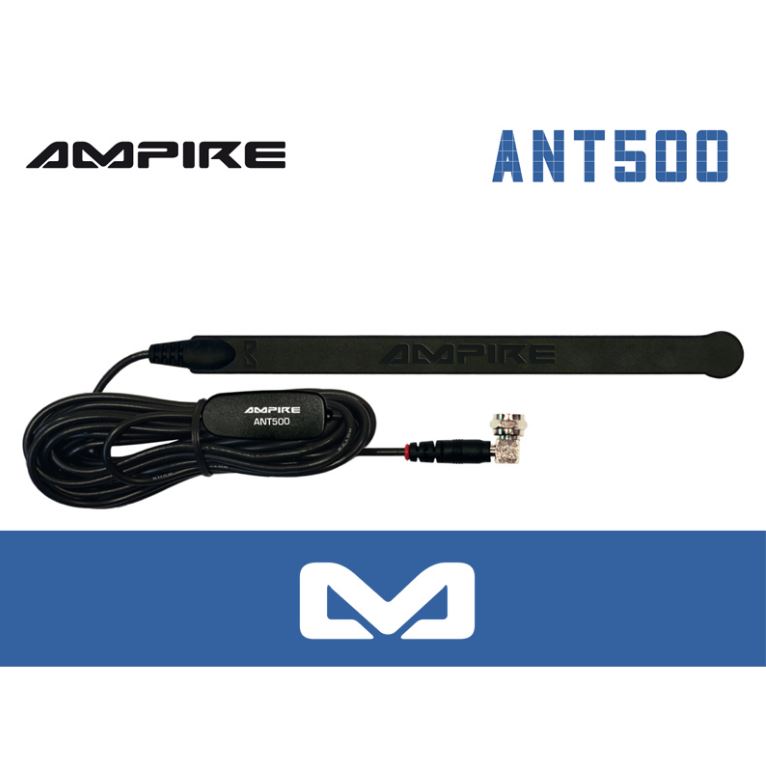

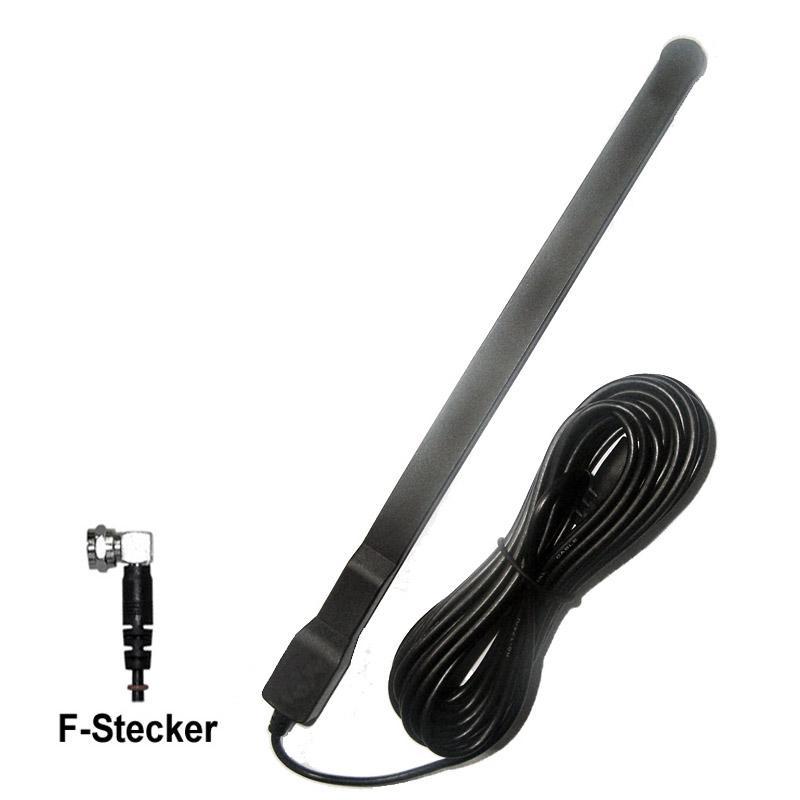

Ampire ANT500 - DVB-T/DAB+ active antenna with 20dB gain

Ampire
Preview: 1ANT500_D1.jpg Preview: AM_ANT500_01.jpg


5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .
€27.99 *
Content: 1 Stück

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • Order number: 02072ANT500
  • EAN 4260052634615
Description Evaluations 0
Description
Active DVB-T/DAB+ window adhesive antenna for DVB-T/DAB+ receivers with 5 volt phantom power and... more
Close menu
Product information "Ampire ANT500 - DVB-T/DAB+ active antenna with 20dB gain"

Active DVB-T/DAB+ window adhesive antenna for DVB-T/DAB+ receivers with 5 volt phantom power and F-connector connections

Technical data

  • suitable for vertical installation in front, rear and side windows
  • Plug & Play assembly
  • 550cm cable length with screwed F-connector
  • Cable type RG164, black
  • black antenna surface
  • Frequency range UHF 470MHz to 860MHz
  • Frequency range VHF-H 170-230MHz
  • Suitable for DVB-T (MPEG2/MPEG4) and DVB-T2 (HD compatible) TV reception
  • Suitable for DAB and DAB+ radio reception
  • waterproof
  • Built-in preamplifier and filter with +20dB gain
  • Operating voltage 5 Volt DC
  • Power consumption 35mA
  • Operating temperature -30°C to 80°C
  • RoHS compliant and approved
  • Compact dimensions 200 x 16 x 5mm (LxWxH)

Important note

  • Please note that you always need two antennas for a DVB-T diversity receiver and four antennas for a quad receiver.
quantity: 1 piece
Product group: Antenna
