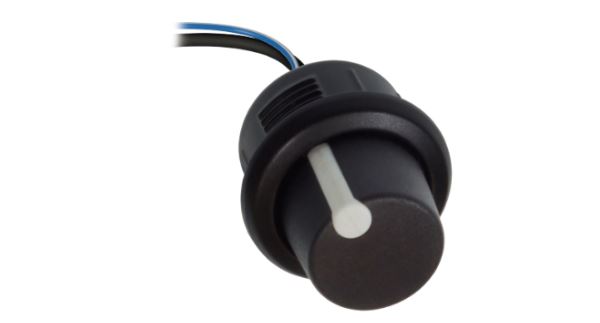

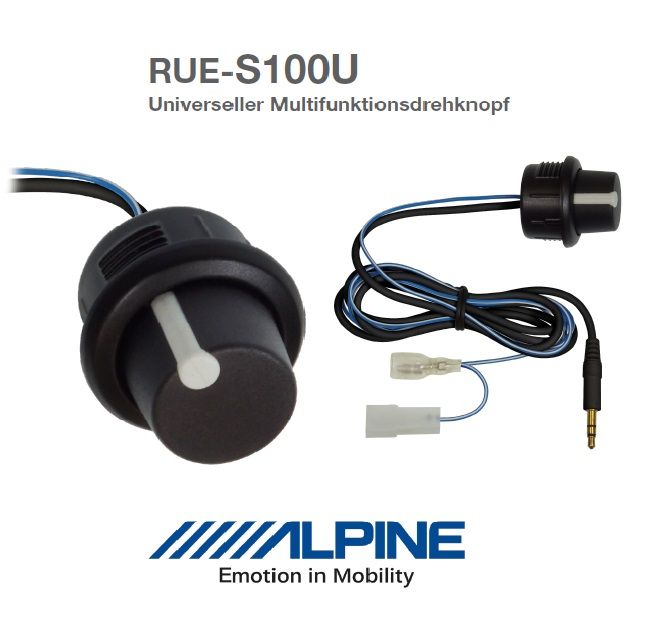

Alpine RUE-S100U - universal multifunction knob

RUE-S100U universal multifunction rotary knob

for all Alpine head units with steering wheel remote control connection

Special features

General

• Universal multifunction rotary knob
• Allows separate and basic operation of an Alpine radio in vehicles without steering wheel remote control
• Endless rotary control

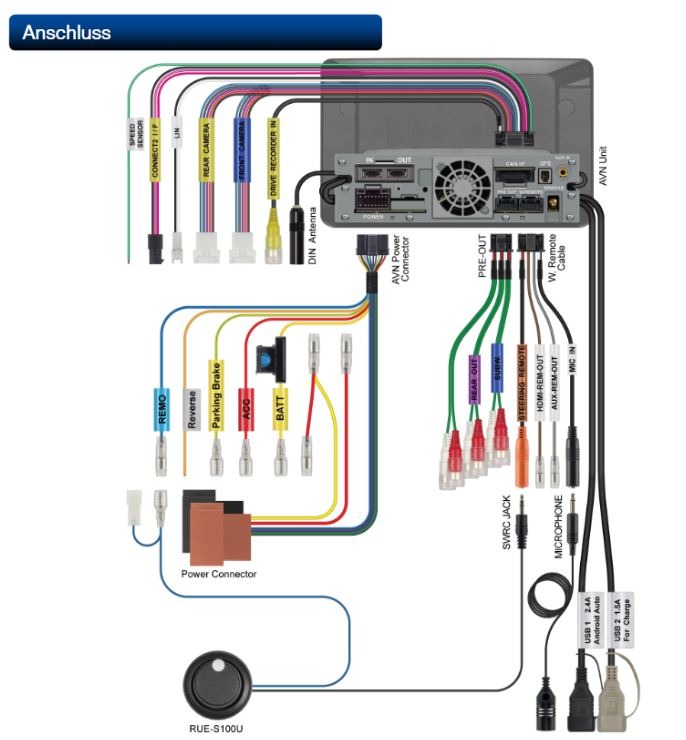

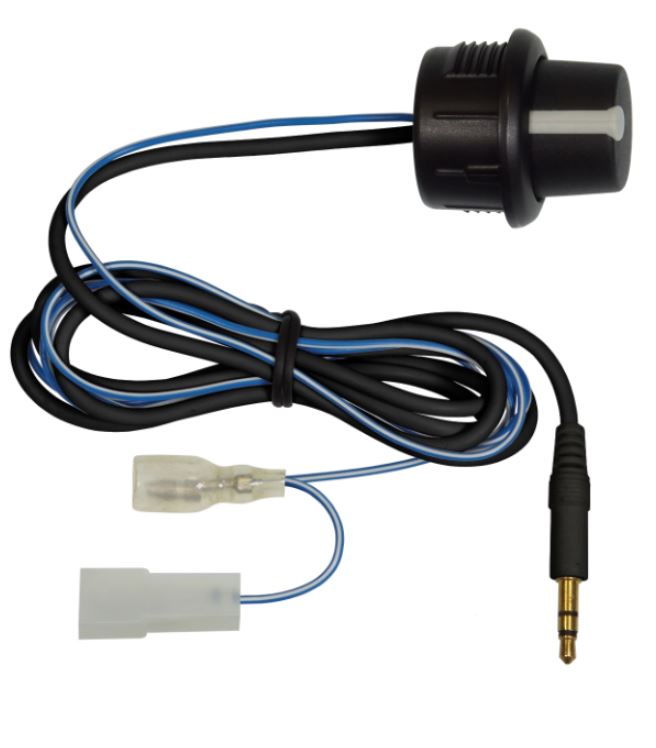

• 3.5 mm jack output - for connection to the steering wheel remote control input* of the Alpine radio
• Easy installation and connection
• +12V remote input for power supply - is connected to REMOTE OUT of the Alpine radio
• Basic functions in basic mode (standard): volume +/-, source, mute and telephone
• Two additional "Expert Modes" with additional functions can be selected according to customer requirements
• Very compact design enables flexible installation in the dashboard or center console
• Compatible for all Alpine radios with steering wheel remote control input*
• Housing material: plastic
• Color: black housing and black multifunction button with white markingDimensions
• Installation diameter (hole size): ~30 mmTotal height:36 mm
• Housing dimensions:29.4 (35) mm x 20.1 mm
• Length of connection cable:100 cm

* No additional connection with an analog steering wheel remote control possible.

Multifunction remote control

The wired remote control RUE-S100U is designed for connection to an Alpine Radio with steering wheel remote control input.
It enables basic operation of the Alpine radio, such as volume control, source selection, mute, etc.
The remote control is very compact and can be installed anywhere in the dashboard or center console.
It has a simple rotary/push button that is very intuitive to use. In Expert mode, additional operating levels are available to the user.
There, for example, the search function can be selected and controlled using the rotary control.
