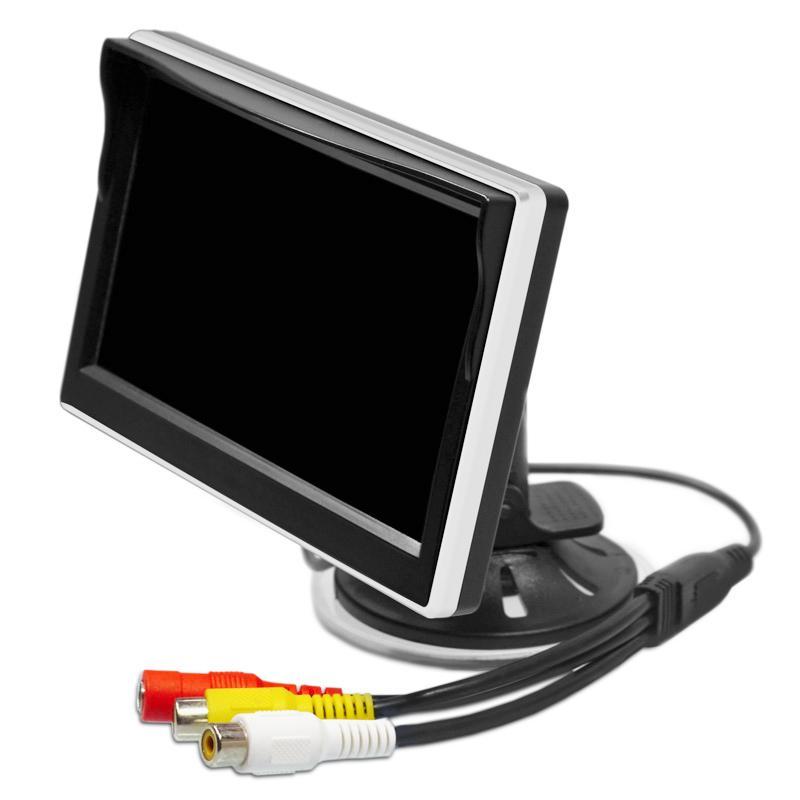

Ampire RVM051 - 5" TFT monitor with 2 inputs

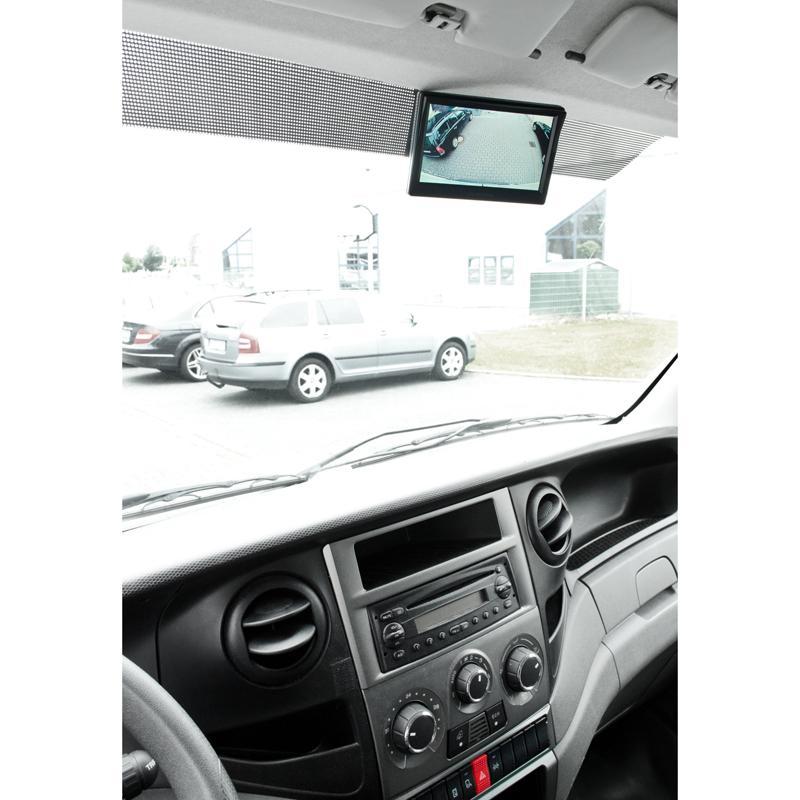

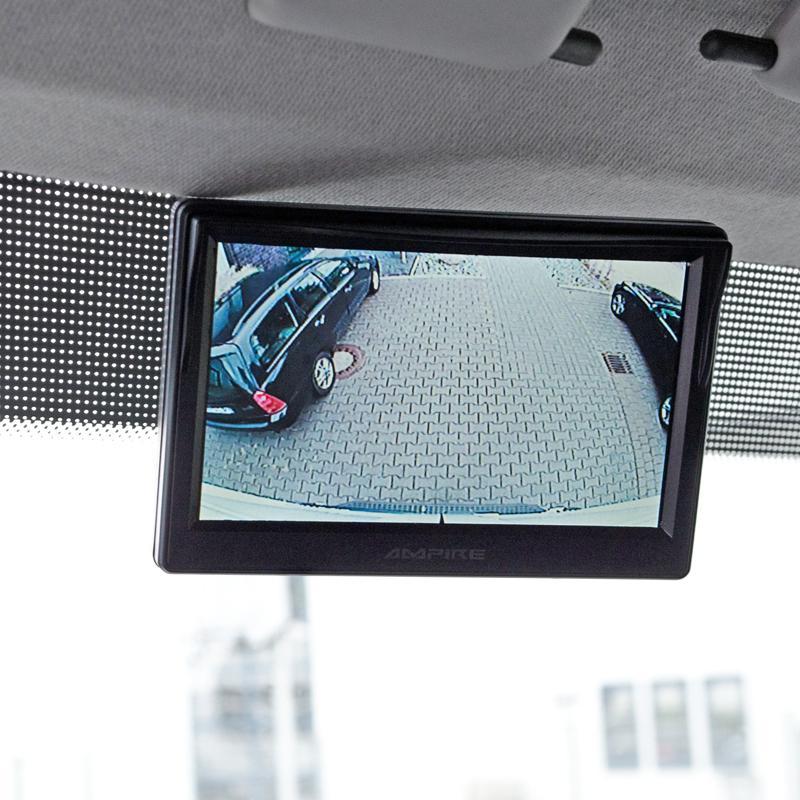

This first-class 12.7cm (5'') digital LCD surface-mounted monitor is the ideal problem solver if you do not have space for larger monitors. You will always find a place to install the universal RVM. In addition, the wide range of image display settings makes it ideal for rear-view cameras. Of course, you can also connect the video signal of a DVD player or DVB-T receiver to the second video input to entertain your passengers during the journey.

Technical data

• 12.7cm (5'') HD digital TFT LCD display (color)
• LED backlighting
• 16:9 screen format
• Resolution 800x480 pixels (HD)
• 2x video inputs (FBAS Cinch) 1 Vss, 75 Ohm
• Automatic NTSC/PAL switching
• Automatic switch-on (2 sec.)
• Operating voltage 10-32 Volt DC
• Operating temperature -20° to 60°C
• Storage temperature -30° to 80°C
• Monitor dimensions 126x83x33mm
• Our monitors are subject to ISO 9241-307, pixel error class II
• Menu language: English/Chinese

Scope of delivery

• 5" monitor

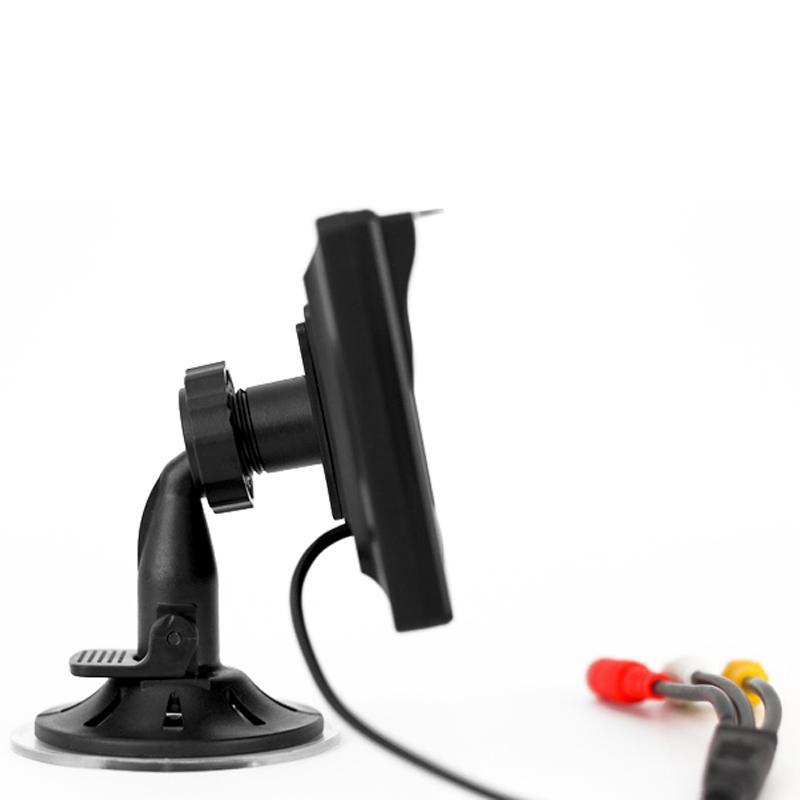

• Suction cup mount
• Adhesive foot mount
• Connection cable

Certification

CE- E13 10R-02 2332

RoHS- WEEE

Important note

The monitor is not intended for use as 24h surveillance monitor and could be damaged.
