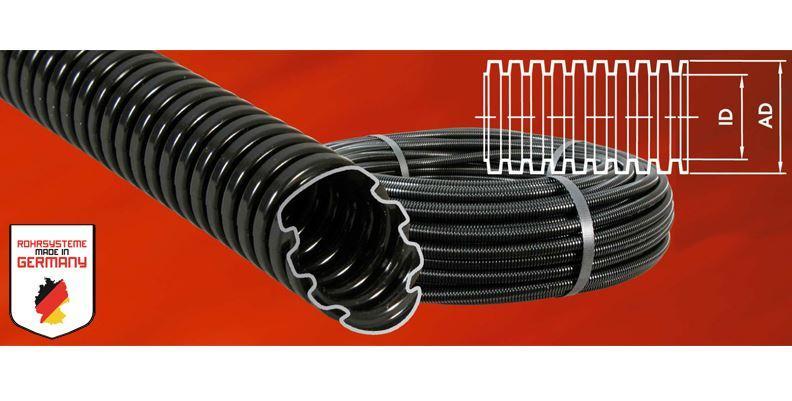

Ampire slotted corrugated tube black - 12.7mm - 1 m

High-quality, slotted corrugated pipe for the mechanical protection of cable harnesses in the engine compartment and body in German OEM quality. Can be used in automotive, shipbuilding and mechanical engineering.

operation area

- Engine compartment, body, vehicle interior, machine / apparatus construction, control cabinets.
- Protection of vehicle cables from heat, moisture, chemicals and UV radiation.

Technical specifications

- Material: polyamide 6
- Temperature range: -40 to +120 degrees C (240h), briefly +150 degrees C.
- Flame protection: UL 94: HB according to FMVSS 302: <100 mm / min.
- Halogen free
- UV-resistant according to DIN EN ISO 8580
- Color: Black
- Length: 1 meter (as a running meter)
- Inner diameter: 12.7mm
- Outside diameter: 15.8mm
- Nominal diameter: NW 13
- Bending radius:> 10 mm
- Version: slotted
- Resistance to: alcohols, petrol, diesel, fats, mineral oils

MADE IN GERMANY
