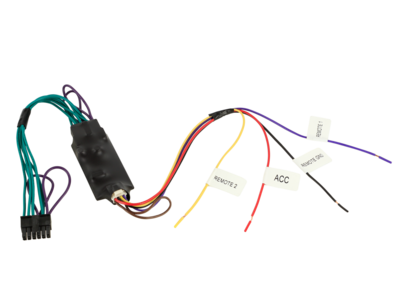

ACV 42ctsmartlead - LFB cable for devices with LFB learning function

Radio connection cable acv > Devices with LFB learning function Blaupunkt / China HU / ESX / Garmin/ Kenwood 2020> / Snooper / XZent

The Smartlead provides all available steering wheel remote control signals including scroll wheel functions for analogue devices with two or three cable control that can be taught.
The connection variant is shown in the radio manufacturer's BDA.
All device connections must be made before the steering wheel remote control interface is connected to the vehicle.
In addition, the LFB function must be taught in a radio menu according to the radio manufacturer's BDA.
Check for functionality before final assembly.

For the following application:

Devices with analogue LFB teaching function

• Blaupunkt 2010> Key1 / Key2 / (GND) connection
• China HU Key1 / Key2 / (GND) connection
• ESX Key1 / Key2 connection
• Garmin Key1 / Key2 / GND connection
• Kenwood 2020> Key1 / Key2 / GND connection
• Snooper Key1 / Key2 connection
• XZent Key1 / Key2 / GND connection
