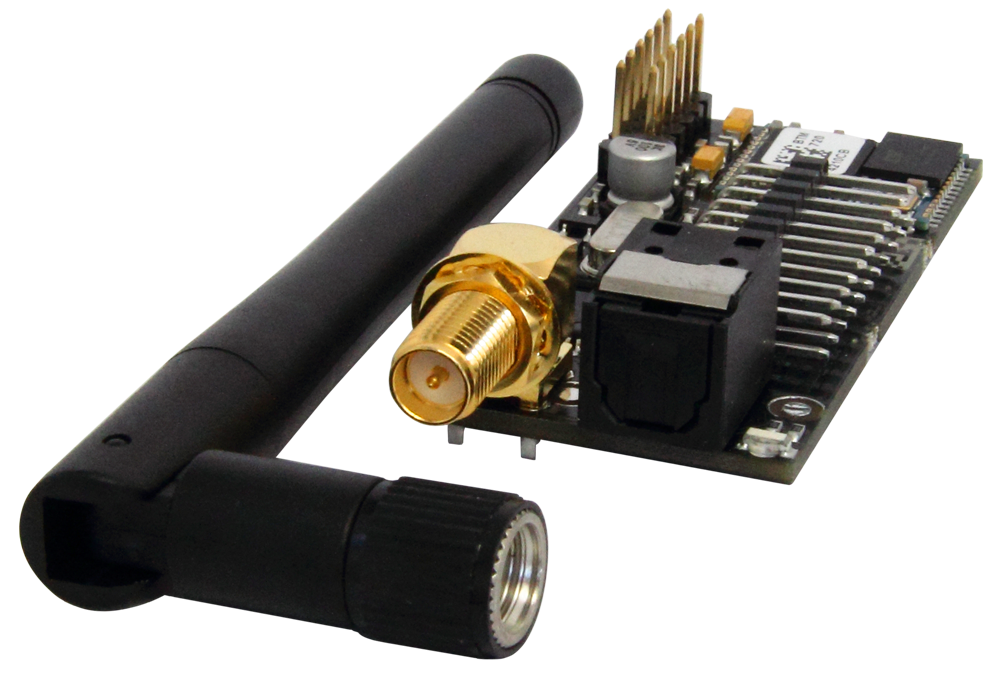

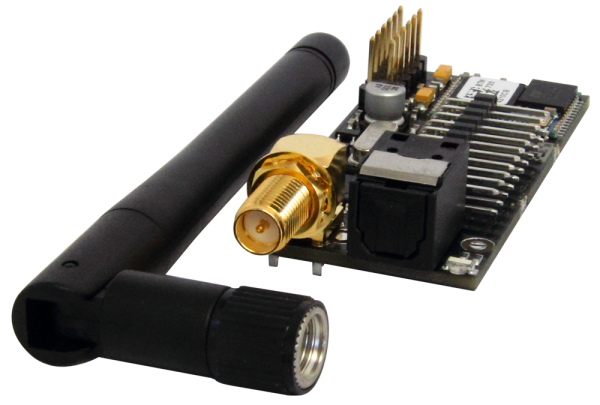

Match MEC BT - Steckmodul für PP 86DSP

Description:
The MATCH Extension Card BT extends MATCH devices with a Bluetooth Audio Streaming function and an optical digital output in SPDIF format.
Due to the support of the Qualcomm aptX codec and A2DP codec, wireless audio streaming in CD-like audio quality is possible.
Furthermore, the direct signal transmission (without additional AD-DA conversion) from the BT module to the DSP allows lossless audio processing and thus outstanding sound performance.
The module will be delivered with a device-specific side panel and provides compatibility with all devices featuring Bluetooth wireless technology.

Features:

• Bluetooth Audio Streaming with Qualcomm aptX Codec
• Compatible with all devices featuring Bluetooth wireless technology
• Direct digital signal transmission to DSP for lossless audio processing
• Additional digital optical output
• Device-specific side panel included in delivery
• Specifications:
• Bluetooth standard v3.0 + EDR
• Bluetooth profile A2DP
• Bluetooth codec SBC and Qualcomm aptX
• Number of paired devices 8
• Wireless frequency range 2402 ~ 2480 MHz
• Range Up to 10 m
• Digital optical output SPDIF with 48 kHz / 24 Bit

Compatibility:

• MATCH PP 86DSP

Delivery contents

• 1 x MEC BT module

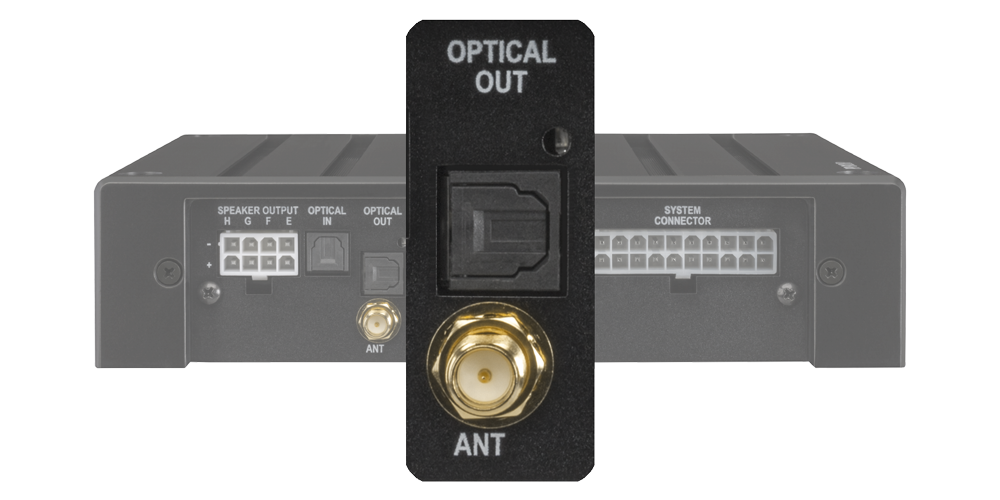

• 1 x Device-specific side panel MATCH PP 86DSP
• 1 x Antenna
• 1 x Instruction manual
