Eton PCC 20 – 20 mm²

ETON PCC 20 - high-quality power connection cable set, 20 mm², set for installing car amplifiers and active subwoofers, power cable kit with fuses for car hi-fi power amplifiers.

The high-quality 20 mm2 power connection cable set PCC 20 (AWG 4) from ETON includes everything you need to easily connect an amplifier or an active subwoofer! Perfectly cut to length and put together in a smart set. Engineered in Germany.

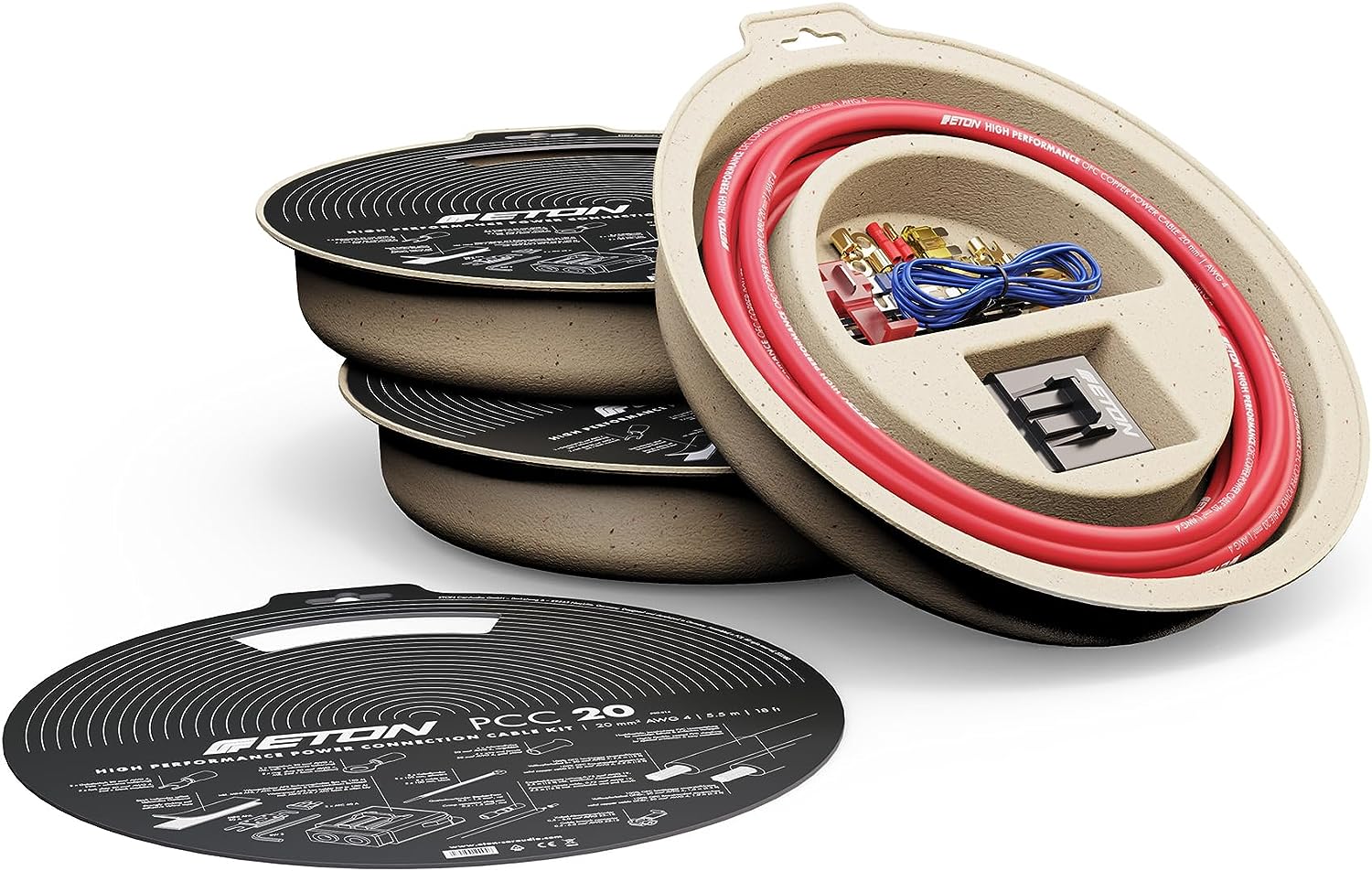

The newly developed, sustainable packaging includes a 5.5 m highly flexible, PVC-coated, 100% OFC fine-stranded power cable made of solid copper B+ and a matching 1 m GND cable with the same specification. An already pressed-on ring shoe in the right size with insulation makes installation easier and saves assembly time. The special PVC surface coating makes it easy to pull the cables inside the vehicle and protects the lines from kinks and breaks.

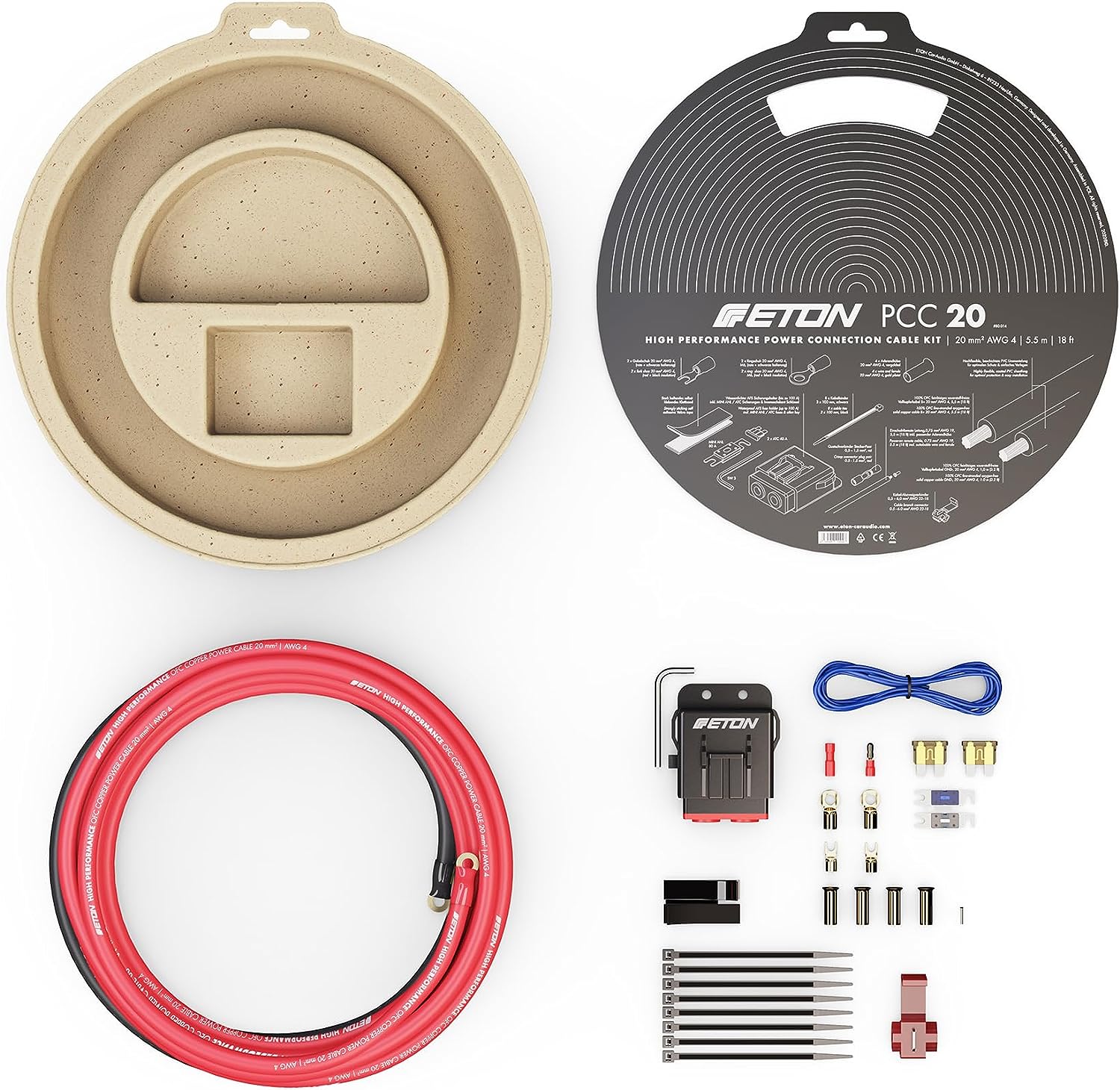

PCC 20 - 20 mm2 (AWG 4) - scope of delivery

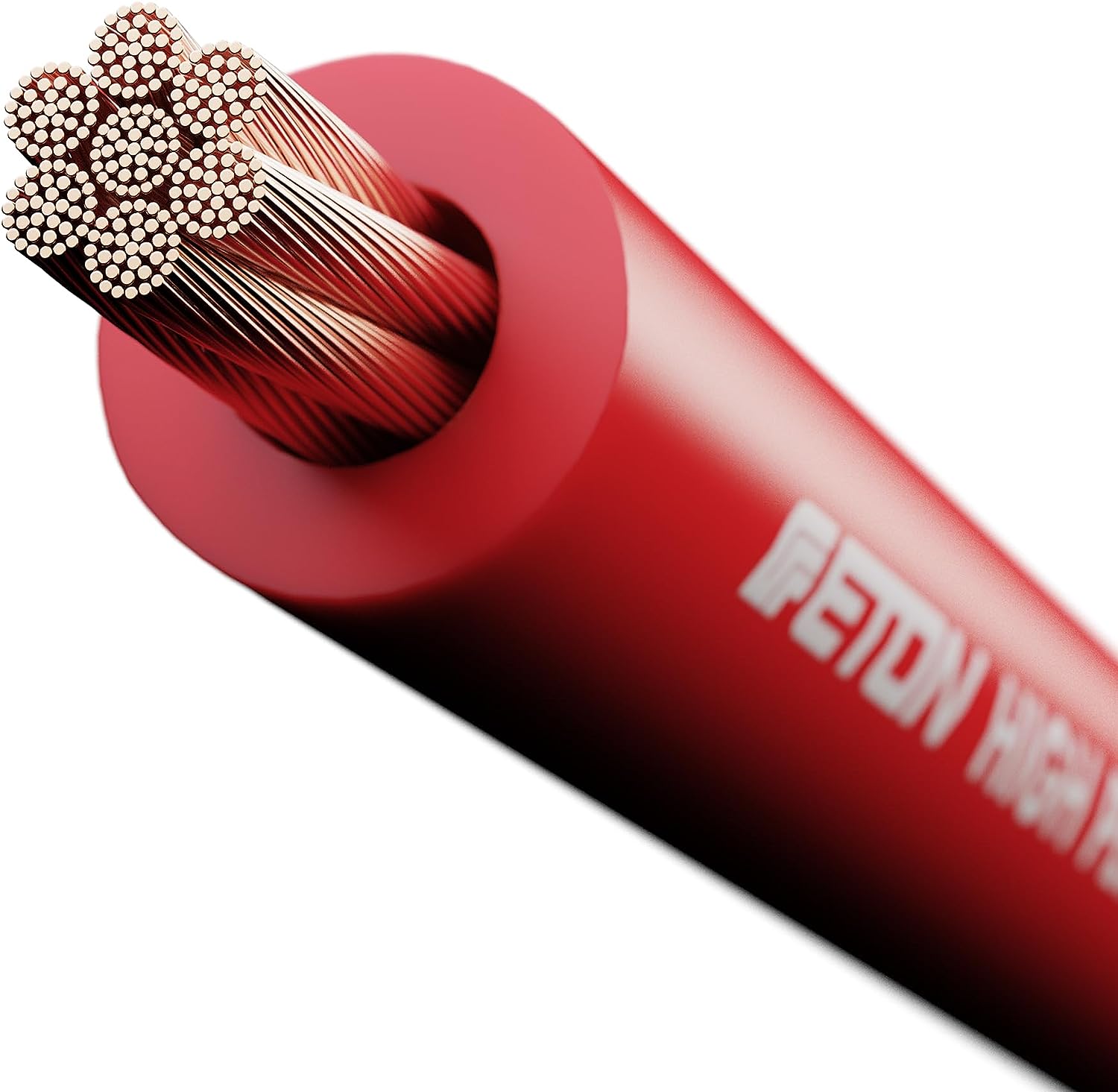

• 5.5 m 20 mm2 high performance power cable, fine-stranded 100% OFC oxygen-free solid copper cable, B+ red with pressed-on ring shoe, soft PVC sheathing and special coating

• 1 m 20 mm2 high performance power cable, fine-stranded 100% OFC oxygen-free solid copper cable, GND, black with pressed-on ring shoe, soft PVC sheathing and special coating

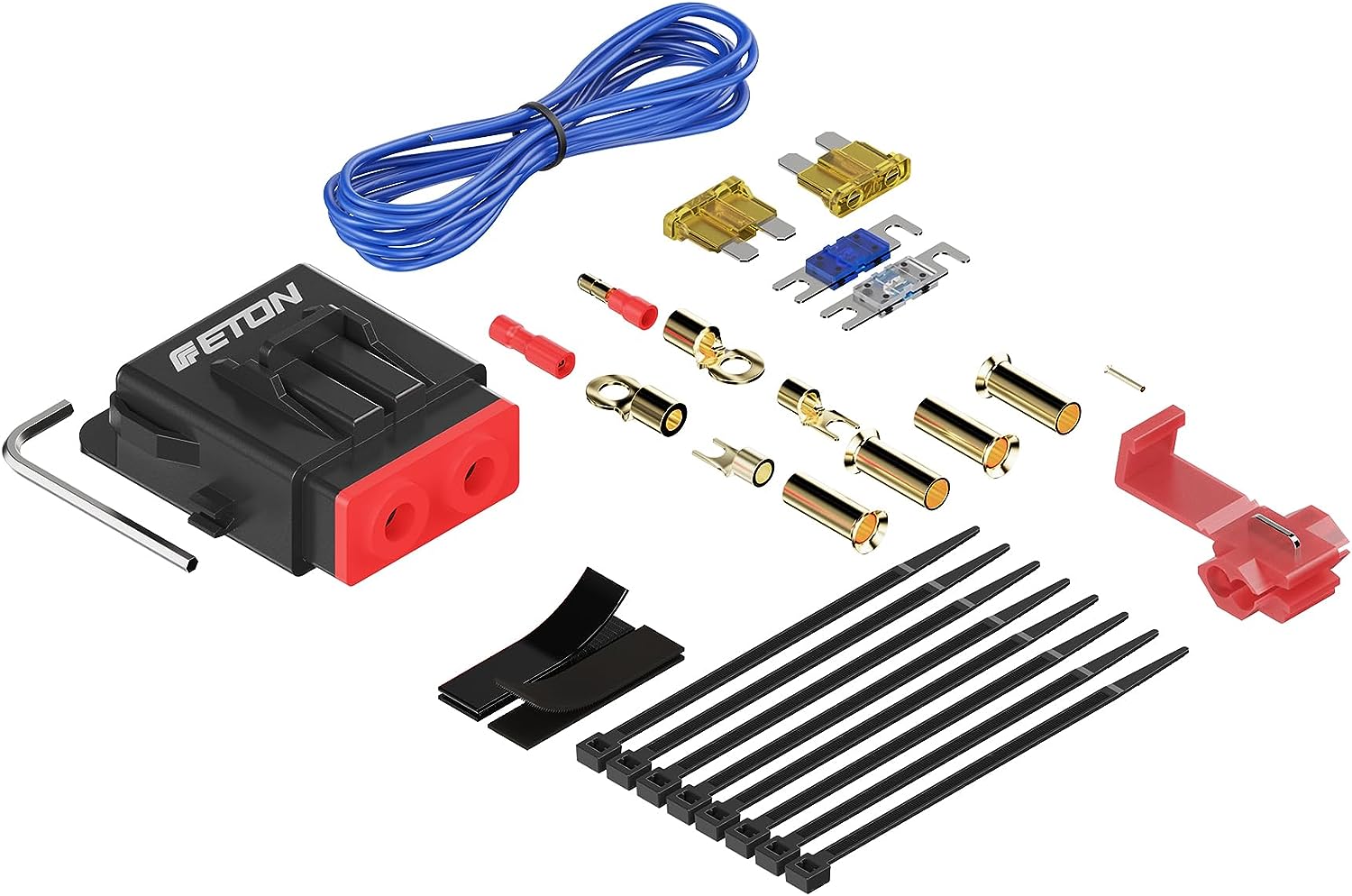

• Waterproof, modern AFS fuse holder for mini ANL and ATC fuses (up to 100 A) with matching Allen key

• MINI ANL fuse 80 A, ATC fuse 2 x 40 A

• 8 x cable ties 3 x 100 mm, black • Strong, self-adhesive double-sided Velcro

• 4 x ferrules 20 mm2 AWG 4, gold-plated

• 2 x ring shoe 20 mm2 AWG 4, M6 (red + black insulation)

• 2 x spade lug 20 mm2 AWG 4 (red + black insulation)

• 5.5 m switch-on remote cable 0.75 mm2 AWG 19, blue, incl. matching ferrule, gold

• Crimp connector plug pair: 0.5 – 1.5 mm2, red

• Cable branch connector for 0.5 - 6 mm2 AWG 22 - 18
