Alpine HCE-CS1100 - Side camera

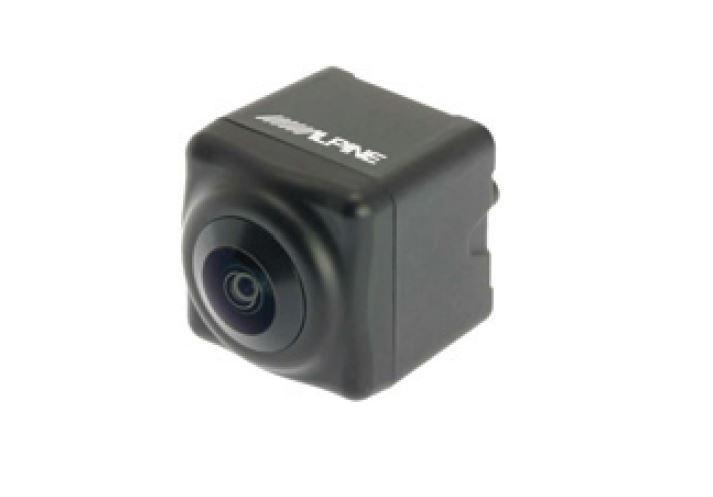

HCE-CS1100 HDR side camera (High Dynamic Range) with RCA and direct camera connection

The HCE-CS1100 is an HDR side camera (High Dynamic Range) for Alpine systems with direct camera connection or other systems with RCA connection.
A universal bracket for mounting on the outside mirror is included in the scope of delivery.
With an Alpine side camera you can get an optimal view of the front side area of the vehicle. This avoids dangerous situations that arise directly in the confusing front area right from the start.
The brilliant HDR technology offers significantly better image quality compared to conventional camera systems for easier maneuvering and more safety.

Alpine HDR cameras

The latest developments in Alpine HDR cameras are astonishing with their enormous image quality.
These cameras offer numerous technologies that make maneuvering much easier and safer.

• High-resolution camera for exquisite image quality with high Detailed display
• Night vision function in low ambient light with convincing display
• Quick aperture change when changing from dark to bright environments (e.g. when driving out of parking garages, tunnels, etc.)
• Very narrow plugs and thin cables for easier installation of camera and cables

Side overview of the vehicle

Install this side camera under your side mirror. You will then receive a clear overview of the situation during difficult driving maneuvers, such as cornering. B. When parking and reversing, a perfect overview of the front side area of the vehicle. This can prevent unpleasant damage. The camera is supplied with a practical housing for side mounting.

RCA and Alpine camera direct connection

With the practical RCA output, this camera can be connected and used with any screen. The HCE-CS1100 is supplied with an Alpine camera adapter that enables connection to any screen device.

Connect 3 cameras

The optional KCX-C250MC extension box enables the connection of up to three rear view cameras. You can switch between cameras using touch controls on your Alpine screen and select different display modes.

Extension Cable

This camera has a total cable length of 4.25 meters with direct camera connection or 7.25 meters when used with the RCA adapter.

If you need a longer cable for RVs, campers, trucks, etc., Alpine offers the optional 5m KWE-EX5CAM Camera Extension Cable.

Features

General

• High Dynamic Range (HDR) side view
• RCA video (NTSC) output
• Alpine camera direct adapter to RCA included

Camera

• CMOS color sensor
• Automatic exposure adjustment
• Automatic White balance
• Internal synchronization

Specification

Dimensions

• Camera: 23.6 x 23.6 x 26.5 mm (camera body)
• Power adapter: 38.0 x 25.0 x 15.0 mm (body)
• Cable length: 0.75 m
• Camera extension cable: 3.5 m
• Power supply cable (reverse/ACC/video/GND): 3 m

General

• Power supply: 9 V to DC 15.6 V
• Power consumption: 1.2 W (12V)
• Working temperature (power supply): -30°C - +70°C
• Weight - Camera: 33g
• Weight - Power supply: 83 g (including cable)

Camera

• Negative ground type
• Output image: Composite Video NTSC
• Output impedance: 75 Ohm (1Vp-p)
• Image sensor: 1/3.7 inch CMOS image sensor, aspect ratio 4:3
• Effective number of pixels: 640 (H) x 480 (V), approx. 300,000 pixels
• Lens: Focal length: f=2.8mm
• Lens: Brightness: F=1:2.0
• Viewing angle: Horizontal = 82.7°, Vertical = 60.5°
• S/N ratio: 40.5 dB or more
• Resolution (horizontal, center range): 330 TV lines
• Operating temperature range: -30°C - +70°C
• Illumination range: approx. 1.5Lx to 100kLx
