Ampire KC203-BLK - Rückfahrkamera, NTSC, Schwarz

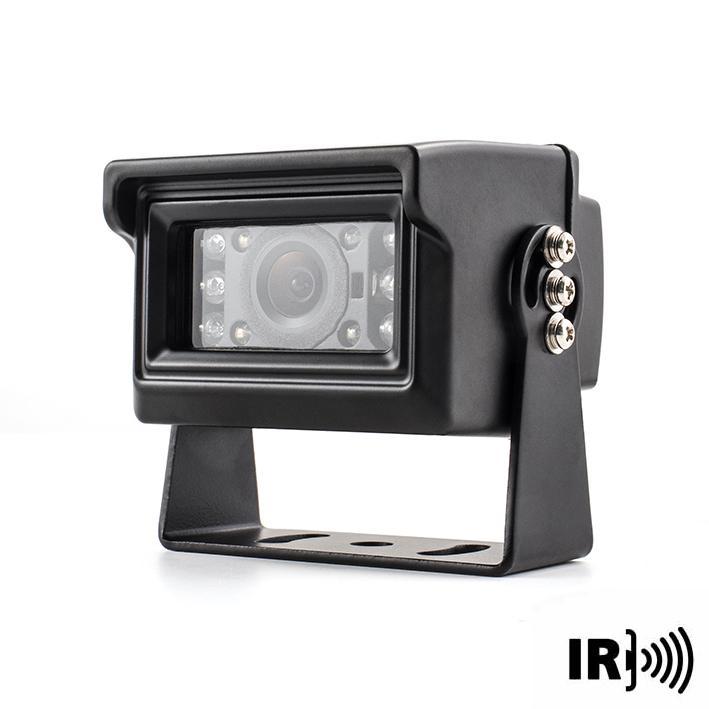

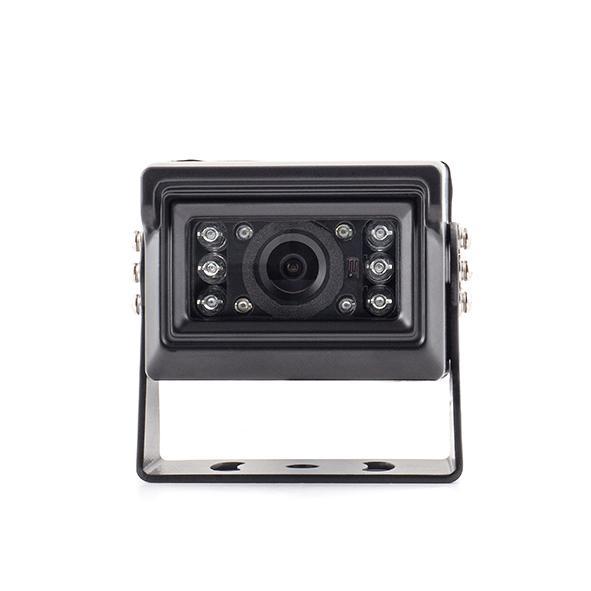

The KC203 surface-mounted camera is a reversing / surveillance camera with unlimited areas of application in cars, buses, mobile homes, trucks and trailers or for monitoring properties, buildings and rooms. The aluminum housing is weatherproof, waterproof and very stable. You can choose between a white (KC203WHI), a black (KC203BLK) or silver version (KC203SIL). The 10 integrated infrared diodes, which switch on automatically at dusk, enable monitoring in complete darkness. Delivery includes bracket and 10m connection cable. The standard image display is "mirrored" and can be switched to "normal".

Technical specifications

• Length of the connection cable: 10m
• Image sensor: SHARP 1/4 '' Color
• Sensor type: CCD
• Image standard: NTSC
• Resolution in pixels: 512 x 492 (H x V)
• Resolution in lines: 420 TVL (Enhanced)
• Frame rate: 60Hz
• Light sensitivity: 0 lux (IR lighting)
• Number of infrared LED: 10 pieces
• Lens opening: 2.4 mm
• Diagonal viewing angle: 120 °
• Exposure time: 1/60 ~ 1 / 100,000 sec
• Signal to noise ratio> 48dB
• White balance: automatic
• Level adjustment: automatic
• Output signal: video via cinch 1.0 Vpp 75 Ohm
• Working temperature: -30 ° C to + 70 ° C
• Operating voltage: 12 volts DC
• Power consumption without infrared lighting: 80mA
• Power consumption with infrared lighting: 146mA
• Dimensions: 50 x 50 x 60 mm
• Protection class: IP67
• Total weight: 0.2 kg
• E approval: E13-10R00-10R02-3857-00,
• CE: 960323L14,960323L13
• RoHS complied

Important note on installation

When cleaning the vehicle, avoid direct contact between the camera and high-pressure cleaners. Do not install the camera at the front of the vehicle in order to avoid damage to the camera, for example from gravel from vehicles in front. The camera is not suitable for continuous operation or monitoring. It must not be operated with an ignition (K15), otherwise the camera could be damaged by overheating.

Legal notice

An increase in vehicle dimensions, with the exception of cars and motorcycles, is subject to registration and must be assessed immediately by the technical test center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or converting the vehicle, ask an officially recognized expert for motor vehicle traffic or a test engineer from a monitoring organization whether the operating license will be affected or whether the change can be approved at all. The return of a used camera for credit is excluded.

Important NOTE

The connection cable of the KC203 is compatible with the connection cable of the KC202 but not with the connection cable of the KC201 and KC200.
