Ampire KC505 - Color Rear View Camera, Guidelines, mirrored / anti-glare

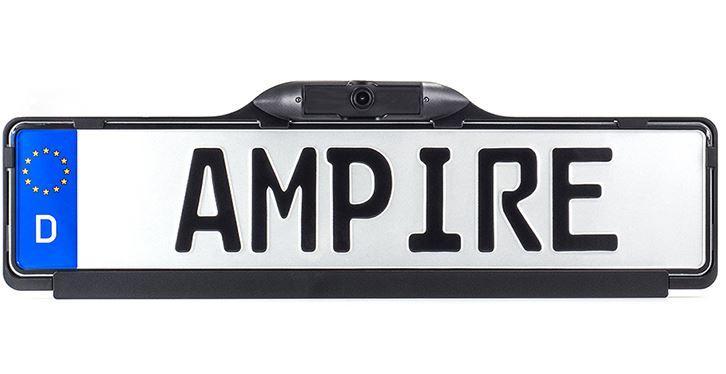

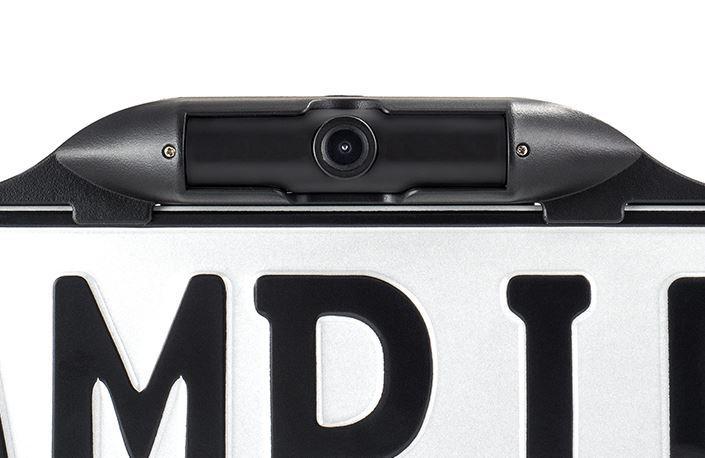

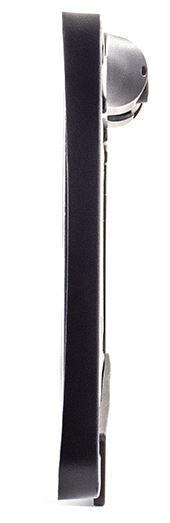

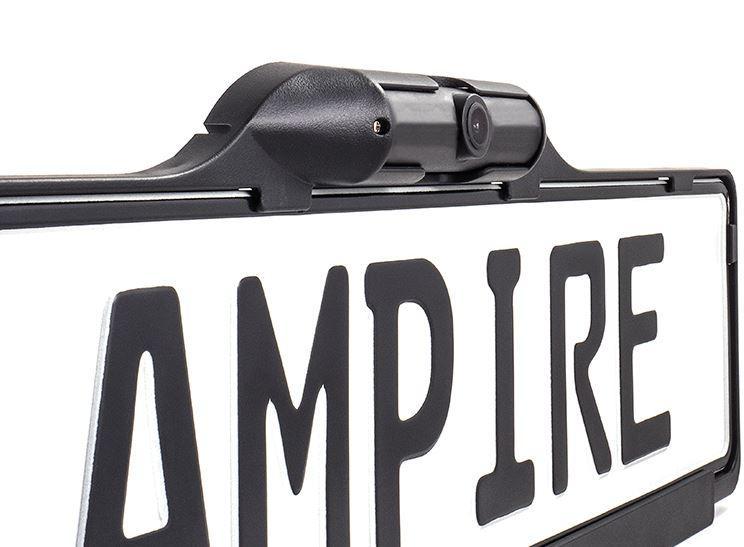

The KC505 camera is a very high quality CMOS camera integrated in a robust holder for mounting behind the license plate in German EU format. The vertical viewing angle of the camera is of course continuously adjustable to adapt to the inclination. The video signal is mirrored for mounting on the rear of the vehicle. This product has only been developed for German EU license plates in the size 110x520mm. Please check before ordering whether your license plate fits. EU license plates from Austria, for example, are 10mm higher and do not fit into the KC505. Only suitable for reversing operation and not for continuous operation and must not be connected to a constant power supply!

Technical specifications

• Image sensor: 1/3 "CMOS PC3089 color sensor
• Switchable auxiliary lines (default switched on)
• Image reproduction: mirrored / anti-glare (standard mirrored)
• TV standard: NTSC
• Viewing angle: 150 ° diagonally 120 ° horizontally
• Protection class according to DIN 40 050: IP67
• Effective resolution in pixels: 720 (H) x 480 (V)
• Frame rate: 60Hz
• Video signal: 1.0Vpp, 75 Ohm
• Level / white balance: Automatic
• Operating temperature: -20 ° C to 70 ° C; RH 95%
• Max. Storage temperature: -40 ° C to 80 ° C; RH 95%
• Max. Dimensions: 158mm x 530mm
• Video connection cable: 5.5m + 0.5m length
• Cinch video plug (male)
• Power connection cable: 1.2m length
• Operating voltage: 12 volts DC
• Power consumption: 82mA
• E approval: E13 * 10R00 * 10R05 * 14176 * 00

scope of delivery

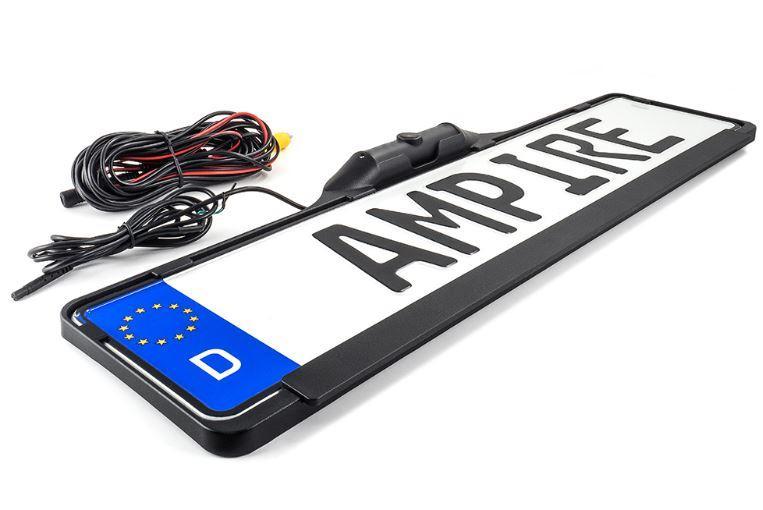

• Camera in license plate holder
• 5.5 meters of video cable

Important NOTE

When cleaning the vehicle, avoid direct contact between the camera lens and high-pressure cleaners. Do not install the camera at the front of the vehicle, the glass lens would be destroyed by gravel from vehicles in front. The camera is not suitable for continuous operation or monitoring. It must not be operated with an ignition (K15), otherwise the camera could be damaged by overheating.
