ACV 771000-6025 - Hella mobile home/caravan reversing camera 3rd brake light

Dual View 2 reversing camera

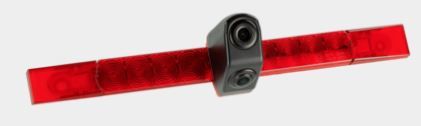

Camera lenses caravans / mobile homes with Hella 2DA 343 106-201 3rd brake light

To replace the OEM 3rd brake light red

Note:

All acv cameras are suitable for connection to +12V continuous operation

To replace the OEM Hella 2DA 343 106-201 3rd brake light

Port:

• red: long-range camera +12V switched load-stable secured
• yellow: close-up camera +12V switched load-stable secured
• black: Ground/GND body directly
• white: Ground/GND body directly

Product features

• Construction: plastic
• Color: black / red
• Extras: 2 camera lenses Sensor type: 1/3" CMOS
• Image System: NTSC Color Effective
• Pixel: 976 x 592 Lens: 1.9mm / F 2.0 Min.Lux: 0.1
• Resolution: 600 TV lines
• Viewing angle camera 1: diagonal 170° Viewing angle camera 1: horizontal 115° vertical 75° + 5°
• Viewing angle camera 2: diagonal 95° Viewing angle camera 2: horizontal 48 + 5° vertical 34 + 5°
• Dust and water protected: IP68
• Connector: 7-pin connector
• Supply voltage: 12 volts + 10%
• Current consumption: 180mA Operating temperature range: -30°C - 75°C
• Storage temperature: -40°C - 80°C
• Dimensions: see OEM brake light

Connection cable on the camera:

• 0.5 meter cable 7 pin connector (m)

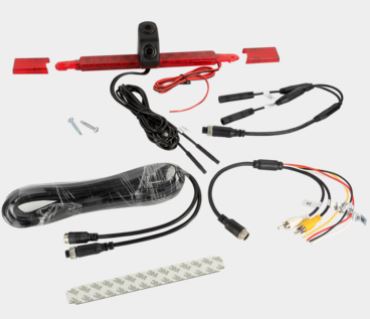

Cable set:

• 6.5 meter 7 pin extension
• 0.2 meter 7 pin connection cable

Port:

• black: body mass
• red: trigger line +12V switched camera1
• Cinch yellow: Camera1
• yellow: trigger line +12V switched camera2
• RCA white: Camera2

Installation accessories:

• Camera connection to interface normally open relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
• Camera connection to reversing light reversing camera
• Reversing signal voltage stabilizer: 771000-6100
