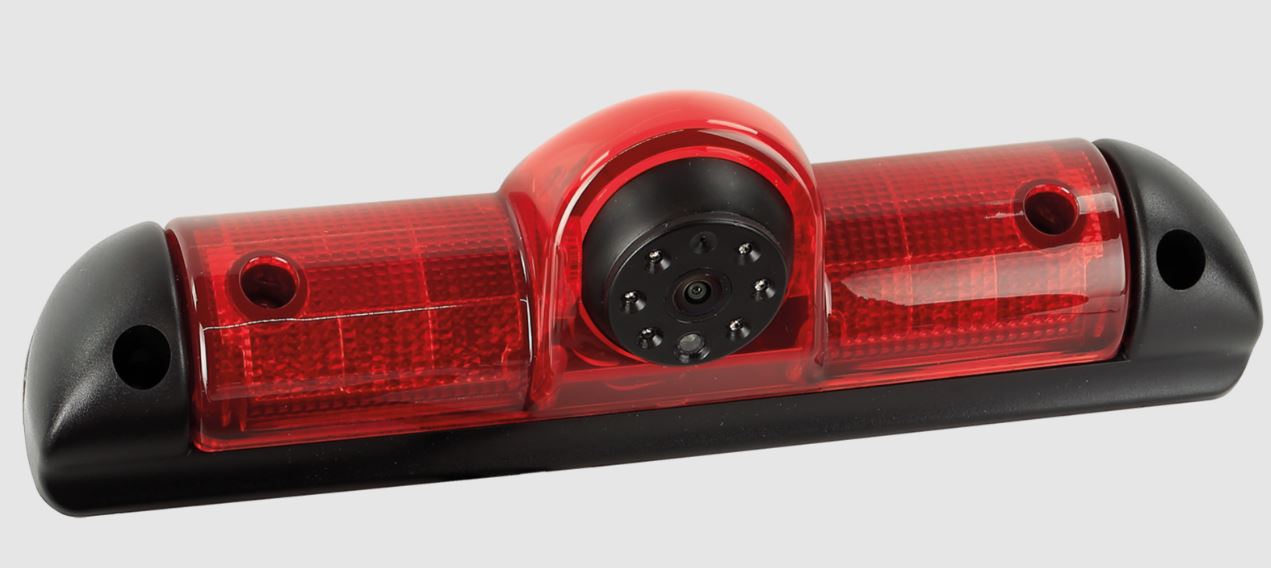

ACV Rear View Camera Citroen/Fiat/Opel/Peugeot

Reversing camera Citroen/Fiat/Opel/Peugeot

• Citroen Jumper (250) 10 /2006 - 05/2014
• Citroen Jumper (250) 05/2014 - 2022
• Citroen Relay (250) 10/2006 - 05/2014
• Citroen Relay (250) 05/2014 - 2022

• Fiat Ducato (ZAF250) 06/2006 - 05/2014
• Fiat Ducato (ZAF250) 05/2014 - 03/2021
• Fiat Ducato (ZAF250) 04/2021 - 2022

• Peugeot Boxer (Y) 02/2007 - 05/2014
• Peugeot Boxer (Y) 05/2014 - 2022

• Opel Movano Cargo C (Y) 10/2021 - 2022

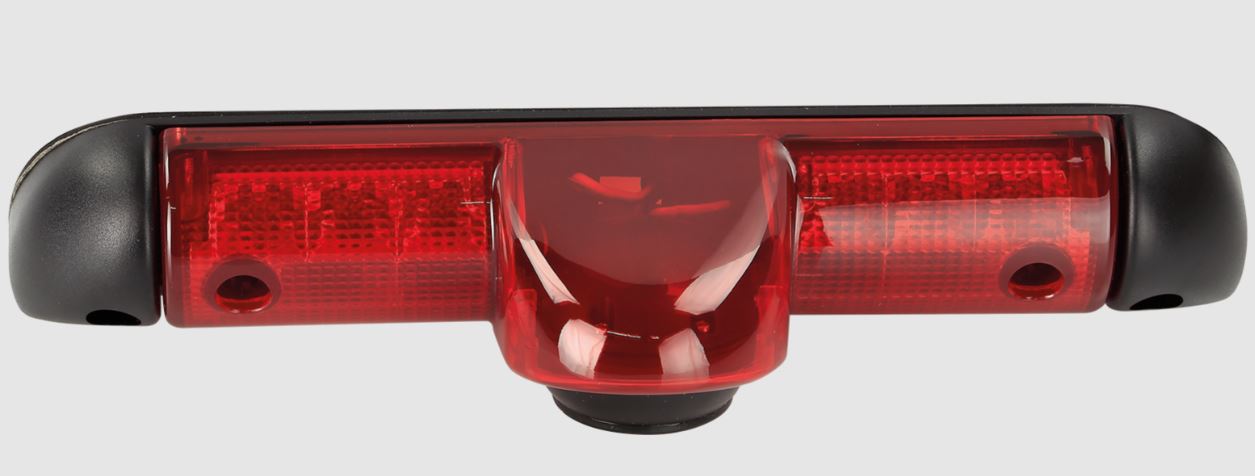

Zum OEM 3rd Brake Light Replacement

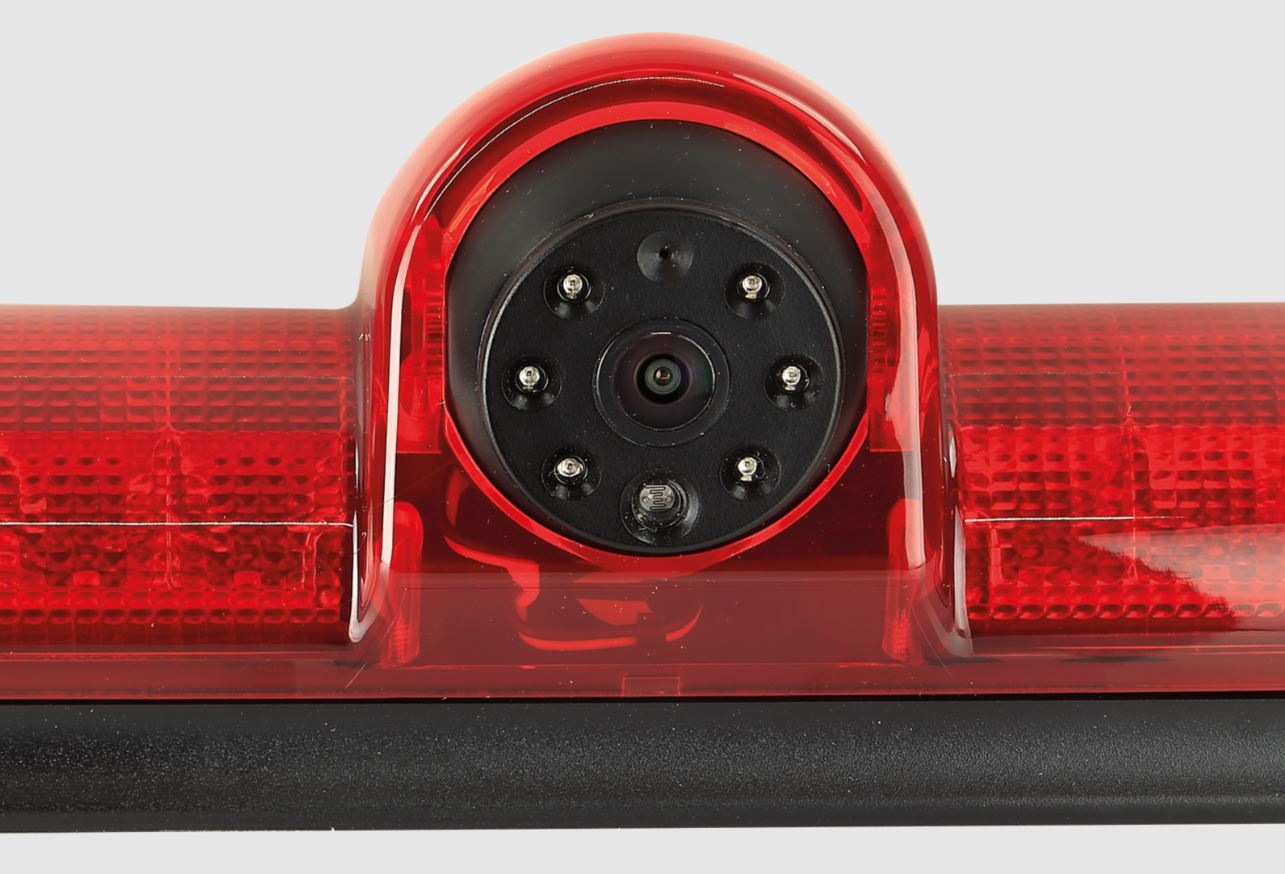

With guide lines, night vision function, 20° adjustable viewing angle

Note:

All acv cameras are suitable for connecting +12V continuous operation

Vehicles with interior fittings such as mobile homes or workshop vehicles

Installation without V screwing through the loading or interior

connection:

• red +12V switched load-stable (fused)< /li>
• black ground/GND body directly

Product features camera:

• Construction: plastic
• Colour: black / red
• Extras: Orientation lines via jumpers and night vision function, viewing angle adjustable by 20°
• Sensor type: 1 /3" CMOS
• Image system: NTSC color
• Effective pixels: 976 x 572
• Lens: 1.9mm / F 2.0
• Min.Lux: 0 with active night vision function
• Resolution: 600 TV lines
• Viewing angle: 160° + 5° Viewing angle: horizontal 115° vertical 75° + 5°
• Dust and water protected: IP68
• Connection: 4 pin mini plug 5.2 mm
• Supply voltage: 12V + 10%
• Current consumption: 150mA with night vision function switched on
• Operating temperature range: -30°C - 75°C
• Storage temperature: - 40°C - 80°C
• Dimensions: see OEM brake light

Connection cable on the camera:

1 meter cable with 4-pin mini plug 5.2 mm

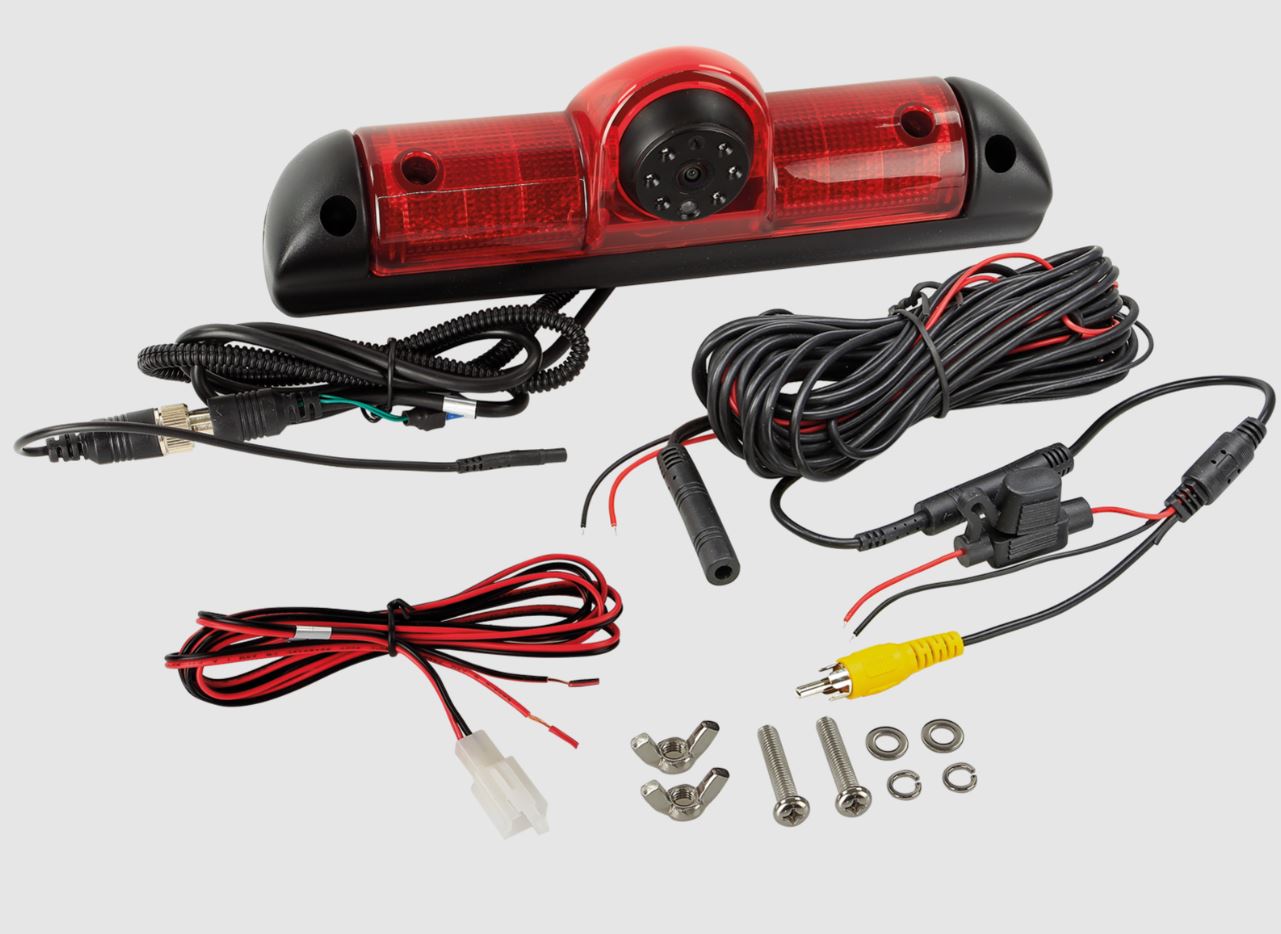

Cable set:

• 1 meter cable with 4-pin mini plug incl. 1 jumper
• 6.5 meter extension incl. 3 meter power line for connection to the reversing light and through-wiring to the connection cable on the end device
• 4-pin mini socket 10 mm and plug 5.2 mm
•  0.2 meter power connection cable including fuse and video connection cable (RCA)
< /ul>

Installation Accessories

Camera connection to interfaces normally open relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
• Camera connection to reversing light --> Reversing camera
• Voltage stabilizer reversing signal: 771000-6100
