Ampire KV-HELL-A2-WHI - Twin Bremslichtkamera

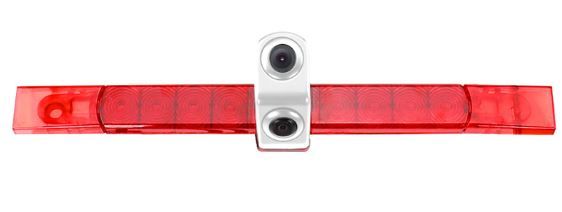

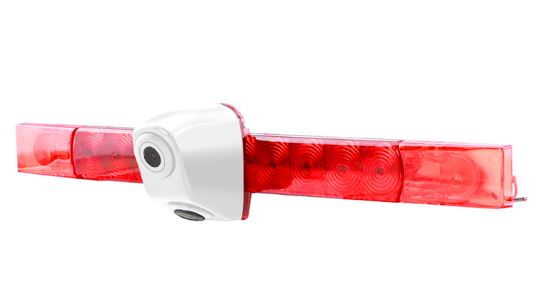

KV-HELL-A2-WHI Ampire Twin brake light camera (replacement for Hella 2DA 343 106-201), white:

Camera with third brake light. Suitable for most motorhomes with Hella or AL brake light (HELLA 2DA 343 106-201). For many camera preparations, but also universally usable. With the upper camera, like with a rear-view mirror, you always have an eye on the traffic behind you. The lower camera then switches on automatically when parking and looks straight down so that the driver can always see the vehicle dimensions exactly. The camera can be used in continuous operation.

Technical data

Upper camera (rear view)

• Sensor: 1/3 Super CMD2099
• Effective pixels: 976(H)*592(V)
• TV line: 700TVL TV system: NTSC
• Lens: 1.9mm
• Min illuminance: 0.1 LUX
• Waterproof: IP68
• Viewing angle: V/65° H/80° D/105°
• Connection: 15m cable length with 4P mini-DIN connector
• Operating voltage: 12V
• Operating temperature: -20° to +70°

Lower camera (parking view)

• Sensor: 1/3 Super CMD2099
• Effective pixels: 976(H)*592(V)
• TV line: 700TVL TV system: NTSC
• Lens: 1.9mm
• Min illuminance: 0.1Lux
• Waterproof: IP68
• Viewing angle: V/105° H/125° D/170°
• Voltage: 12V
• Power consumption: 150 mA
• Connection: 15m cable length with 4P Mini-DIN connector
• Operating temperature: -20° to +70°

Dimensions

• Brake light: 290 x 25mm
• Camera: 27 x 50mm
