Ampire KCX302 - Rear view camera

Ampire
Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera Preview: Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera
Ampire KCX302 - Rear view camera


5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .
€158.50 *

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • Order number: 02072KCX302
  • EAN 4260052640111
Description Evaluations 0
Description
Ampire Mini color rear view camera, built-in/undermount with 115°, front camera input The... more
Close menu
Product information "Ampire KCX302 - Rear view camera"

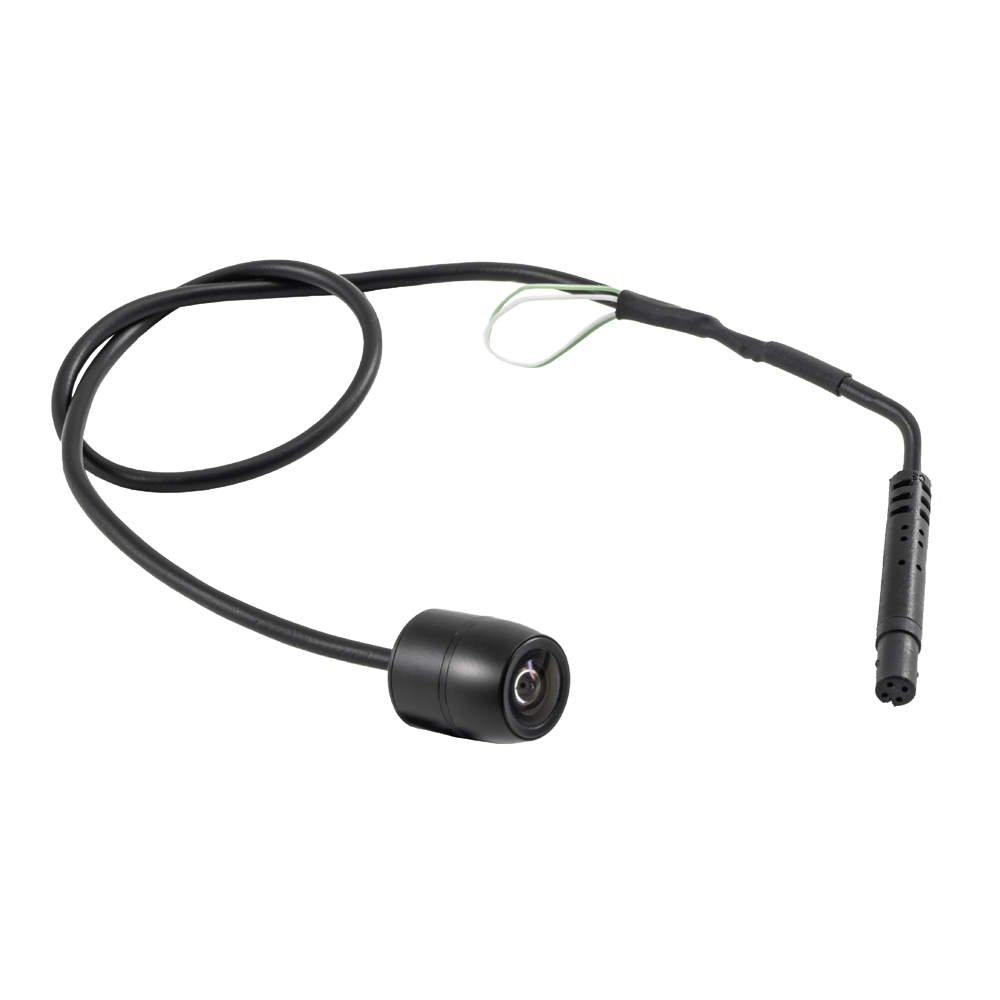

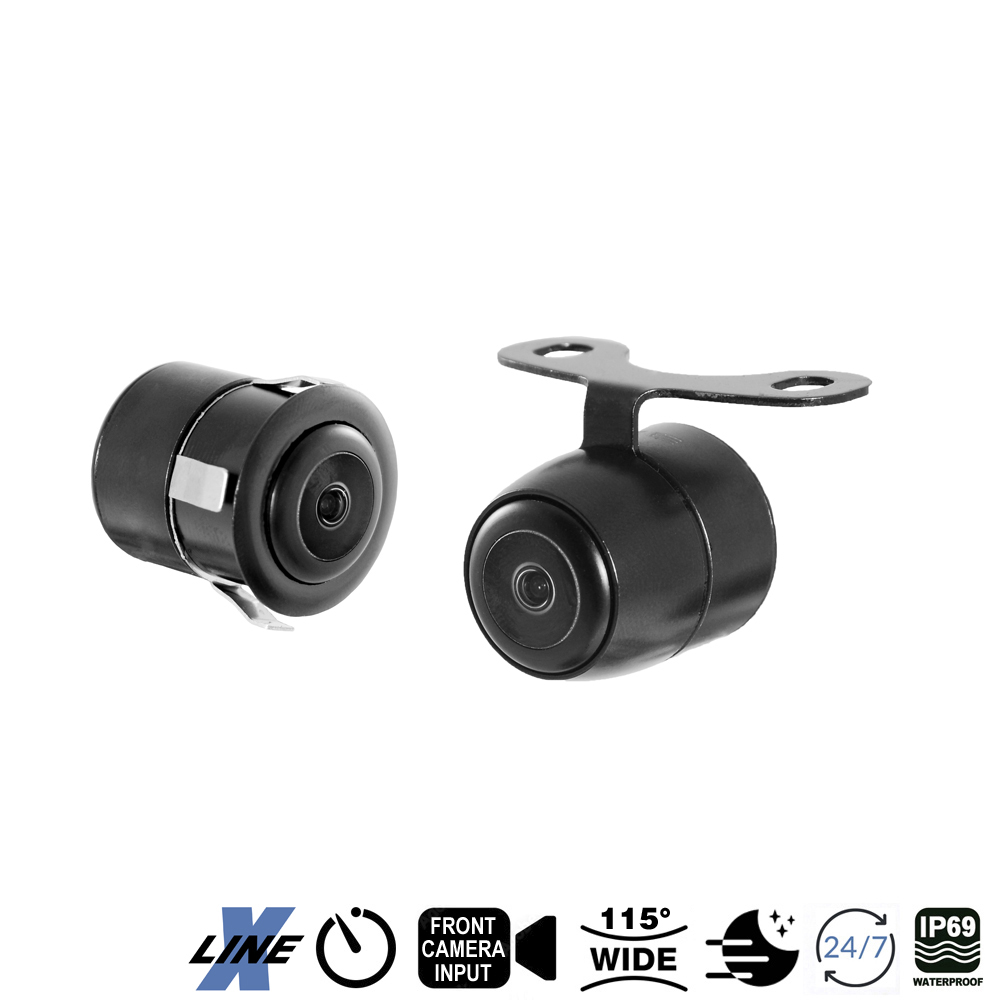

Ampire Mini color rear view camera, built-in/undermount with 115°, front camera input

The KCX302 miniature built-in/undermount camera is a rear view camera with unlimited application areas in cars, buses, mobile homes, trucks or trailers.
The matt black housing is particularly weather-resistant, IP69K waterproof and very sturdily constructed.
Two different guide lines (narrow/wide) can be optionally displayed in the video signal, which allows the viewer to park better.

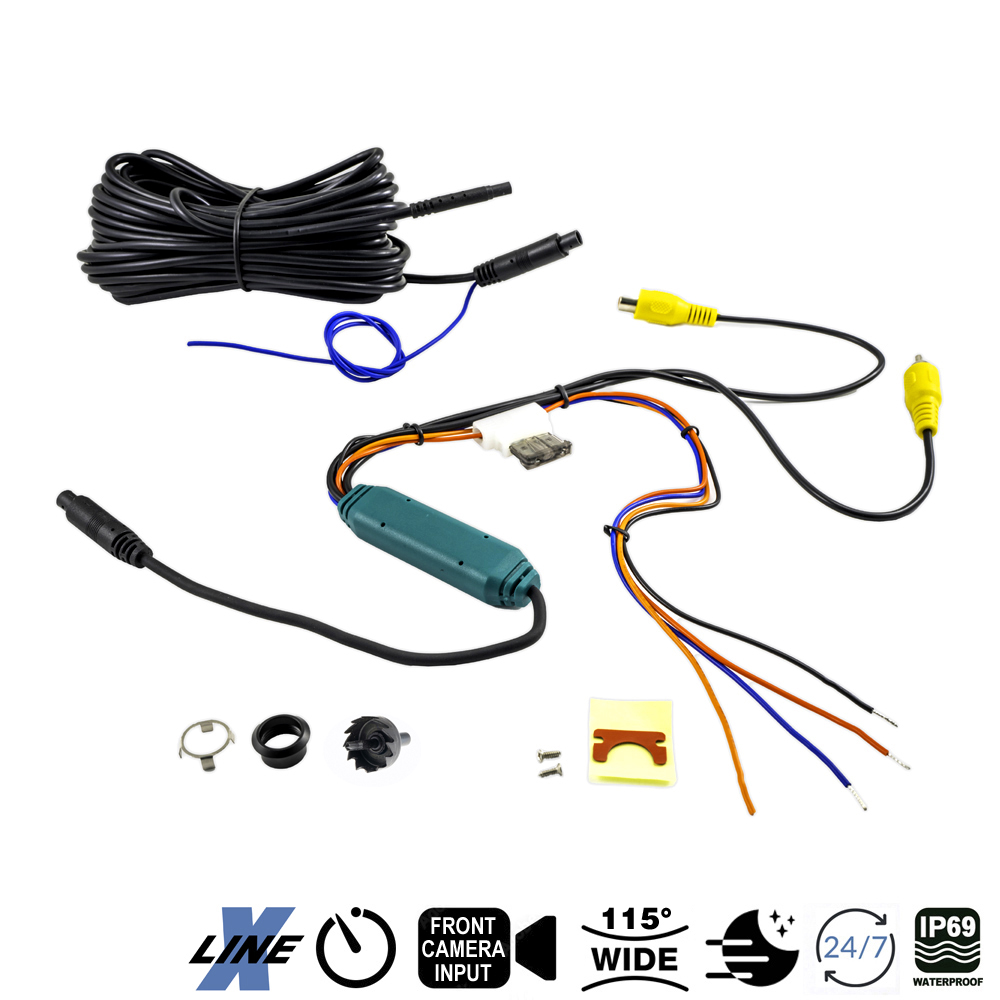

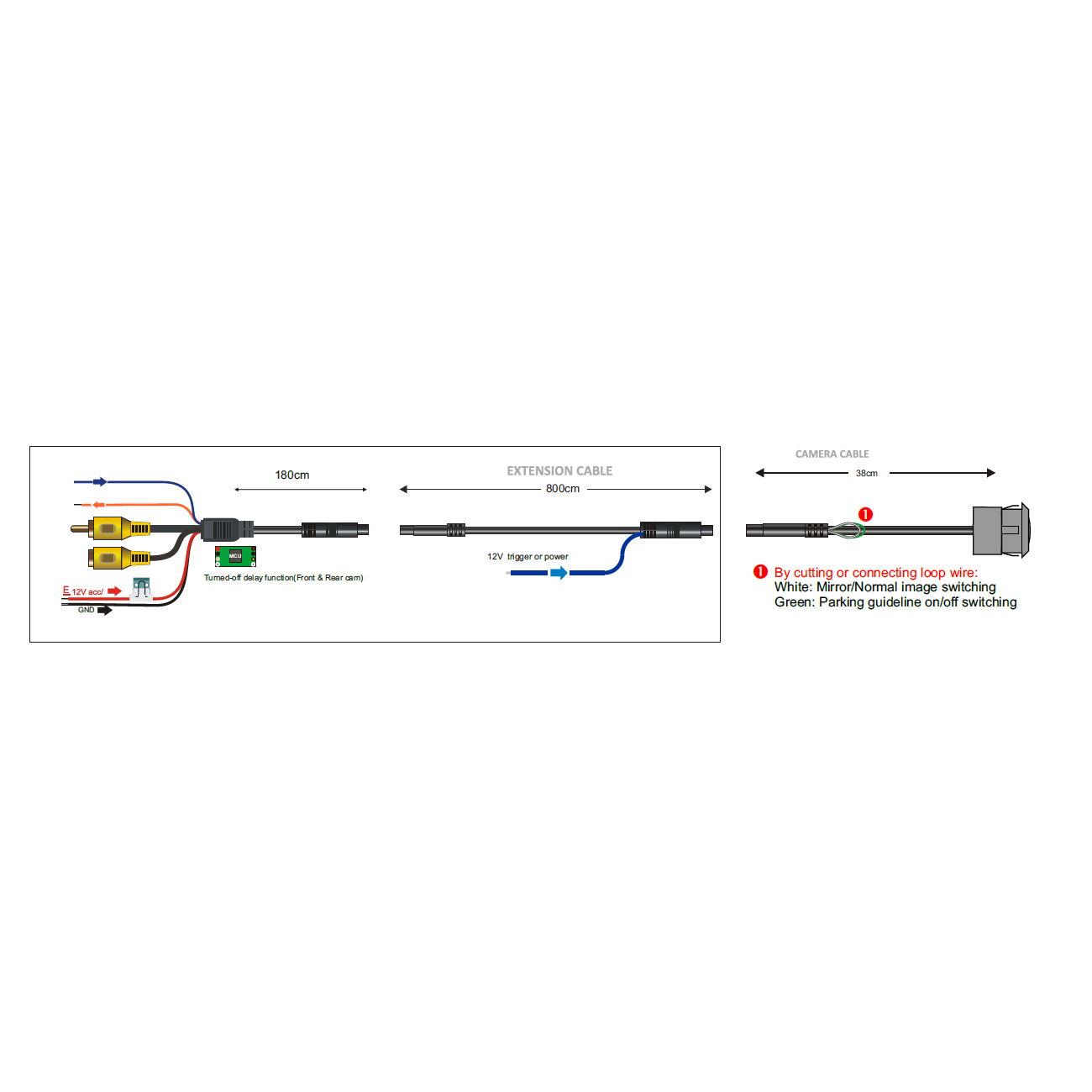

The delivery is complete with an 8 meter extension cable with high-quality copper strands.
In addition, the KCX302 has an input for an optional front camera and switch-off delay which leaves the rear view camera or optional front camera active for a few seconds longer.

 Features

  •  HD wide-angle camera in a plastic housing
  • Can be used in 24/7 continuous operation
  •  IP69K waterproof with stainless steel bracket
  •  Switch-off delay and Front camera input

 Technical data

  •  2 different guide lines: switched off at the factory (can be switched on)
  •  black matt housing with stainless steel fastening
  •  Image display mirrored (adjustable)
  •  Image display rotated 180° (adjustable)
  •  Image sensor type 1/4'' 1233 HD Color CMOS Low Light Sensor
  •  Video signal NTSC with 60 Images/second
  •  Resolution pixels 960H×480V
  •  DIN protection class IP69K
  •  Resolution 800 TV lines
  •  Exposure 1/50-60~1/15000 seconds
  •  Signal-to-noise ratio =>46dB
  •  Dynamic >>74dB
  •  Light sensitivity < 0.01 Lux/F1.2
  •  Output signal 1.0Vp-p, 75 OHM
  •  Automatic white balance
  •  Automatic video level adjustment
  •  Operating voltage 12 Volt DC
  •  Power consumption 25-55mA
  •  diagonal viewing angle 170°
  •  horizontal viewing angle 115°
  •  vertical viewing angle 95°

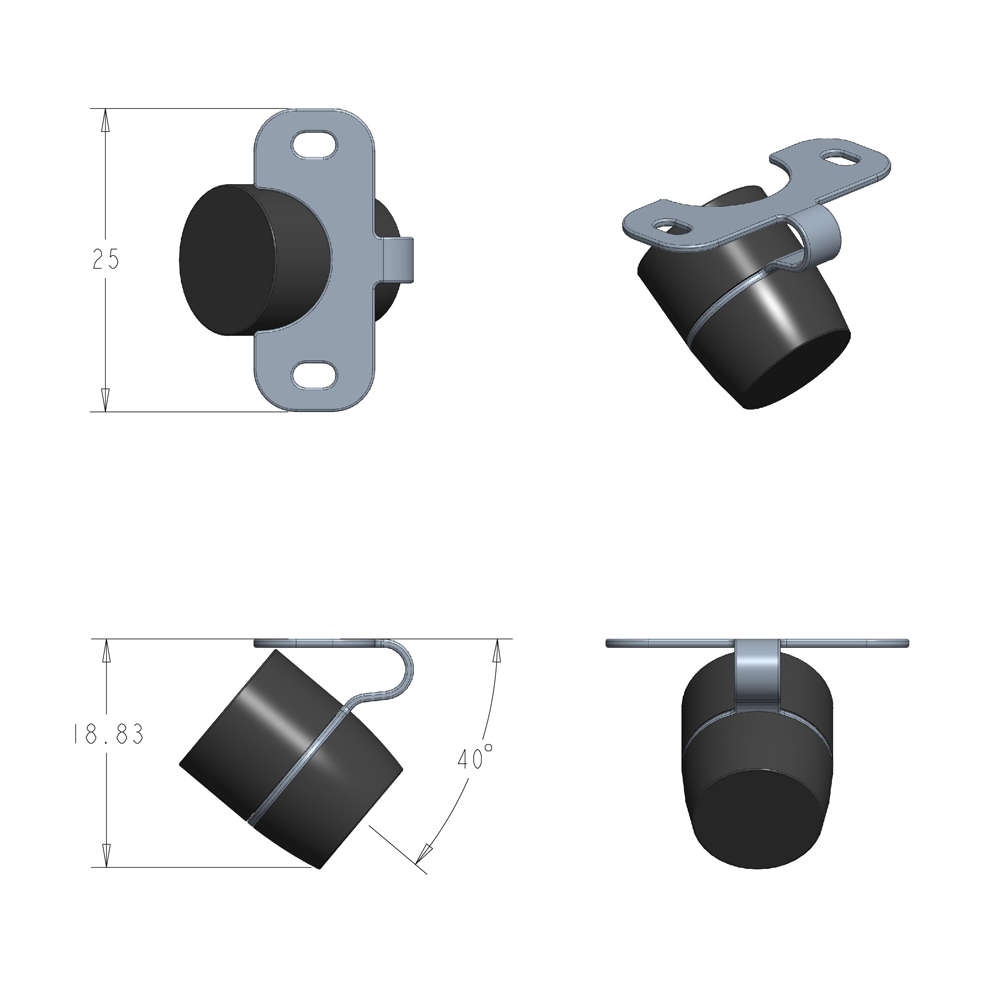

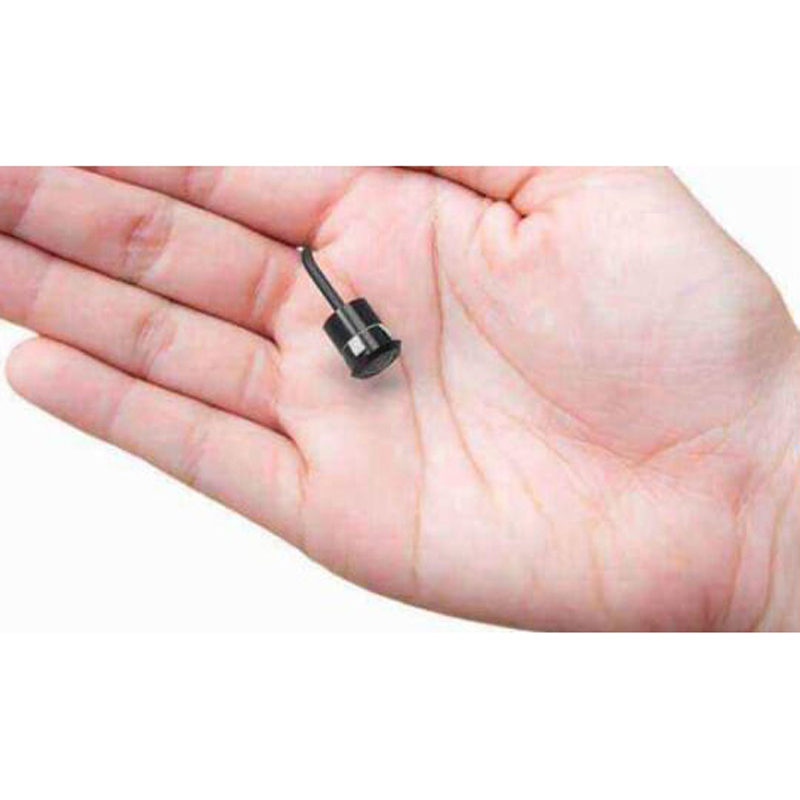

  •  Camera dimensions 12.5 x 15mm
  •  Operating temperature -40°C to +75°C
  •  Storage temperature -60°C to 105°C
  •  E certified

Approvals

  • CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
    FCC Part 15B Report No. STR12058092E-3
quantity: 1 piece
Blickwinkel, diagonal: 170°
Perspective, horizontal: 115°
Perspective, vertical: 95°
Type of Camera: Rear view camera
Product group: Camera
