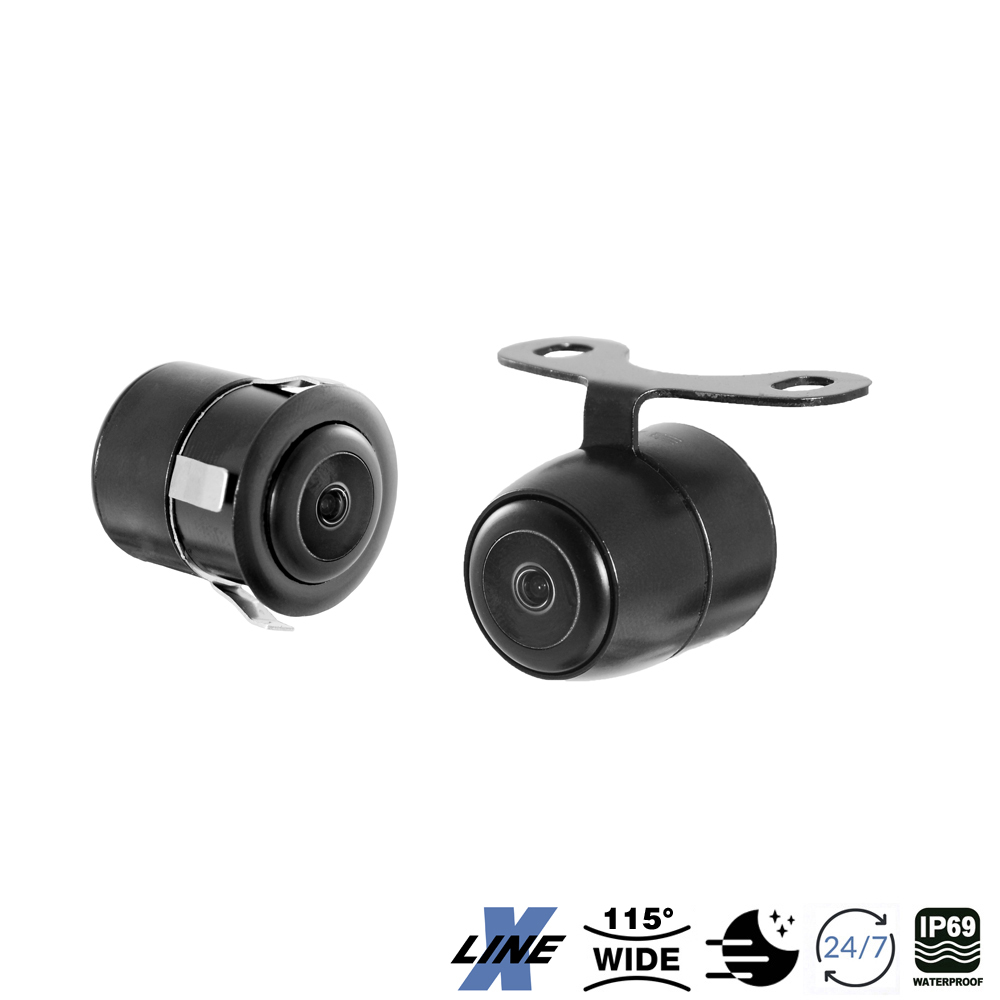

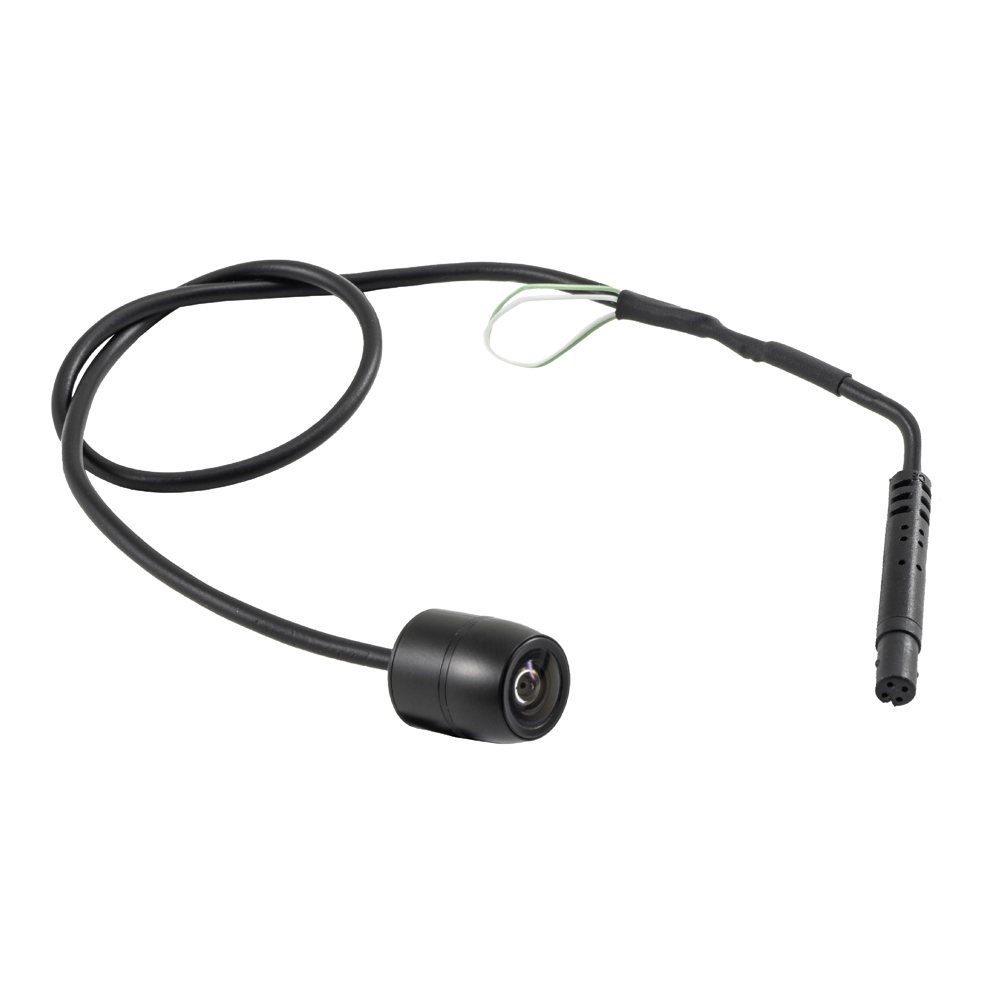

Product information AMPIRE mini color reversing camera, built-in/base with 115°

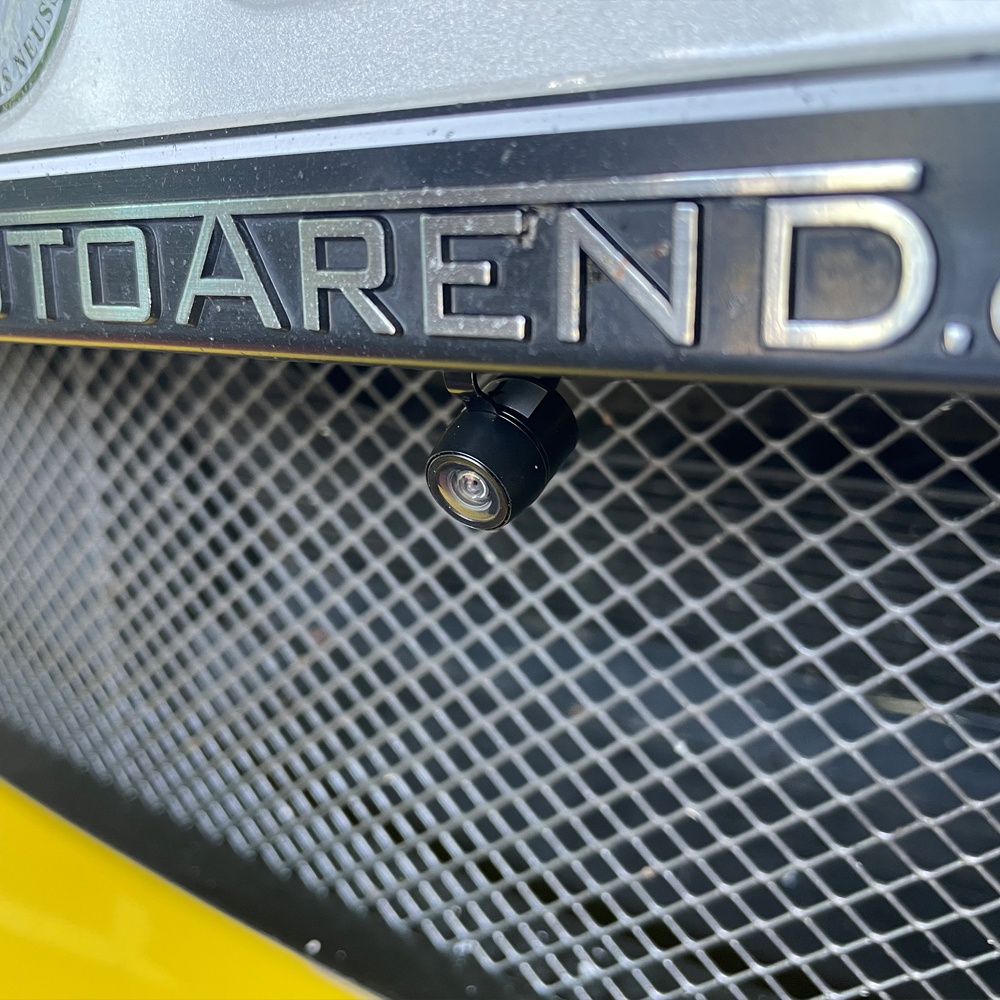

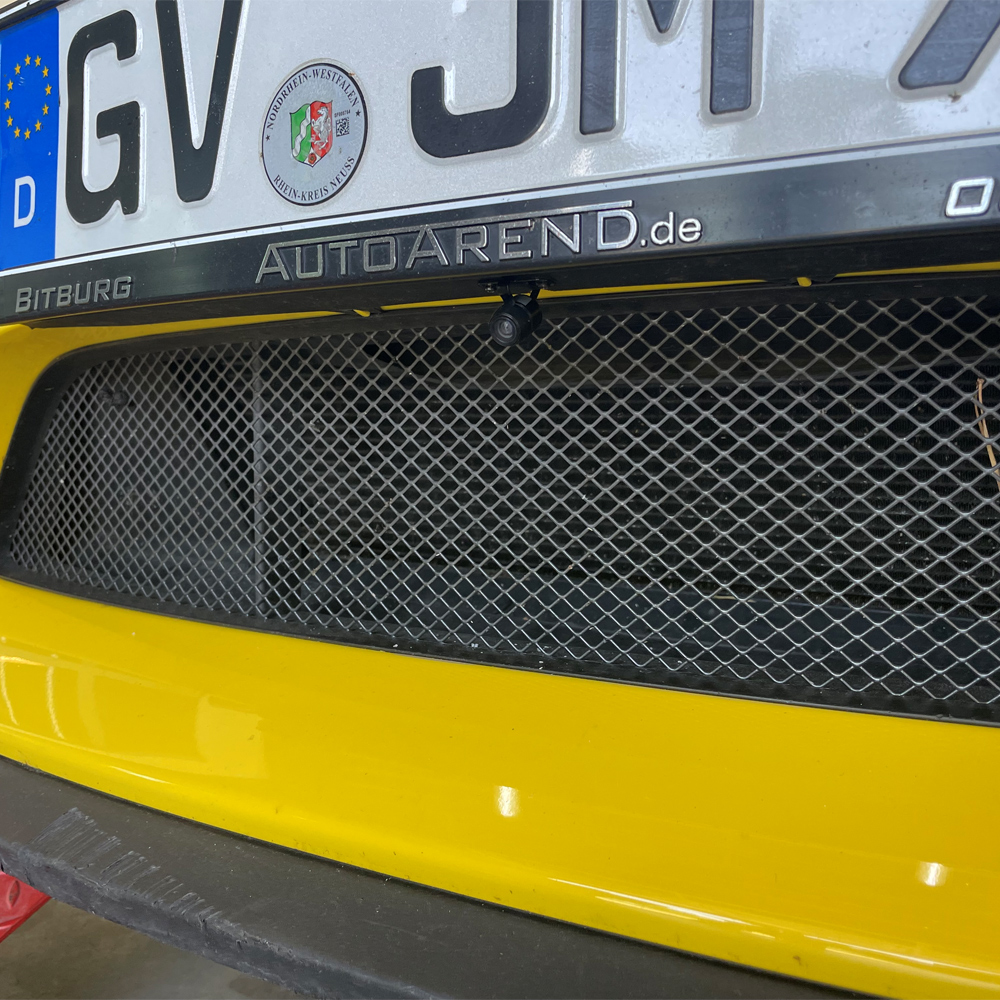

 The KCX302-ECO miniature in-body camera is a rear view camera with unlimited areas of application in cars, buses, motor homes, trucks or trailers.
The matt black housing is particularly weather-resistant, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow/wide) can be displayed in the video signal, which enables the viewer to park better.

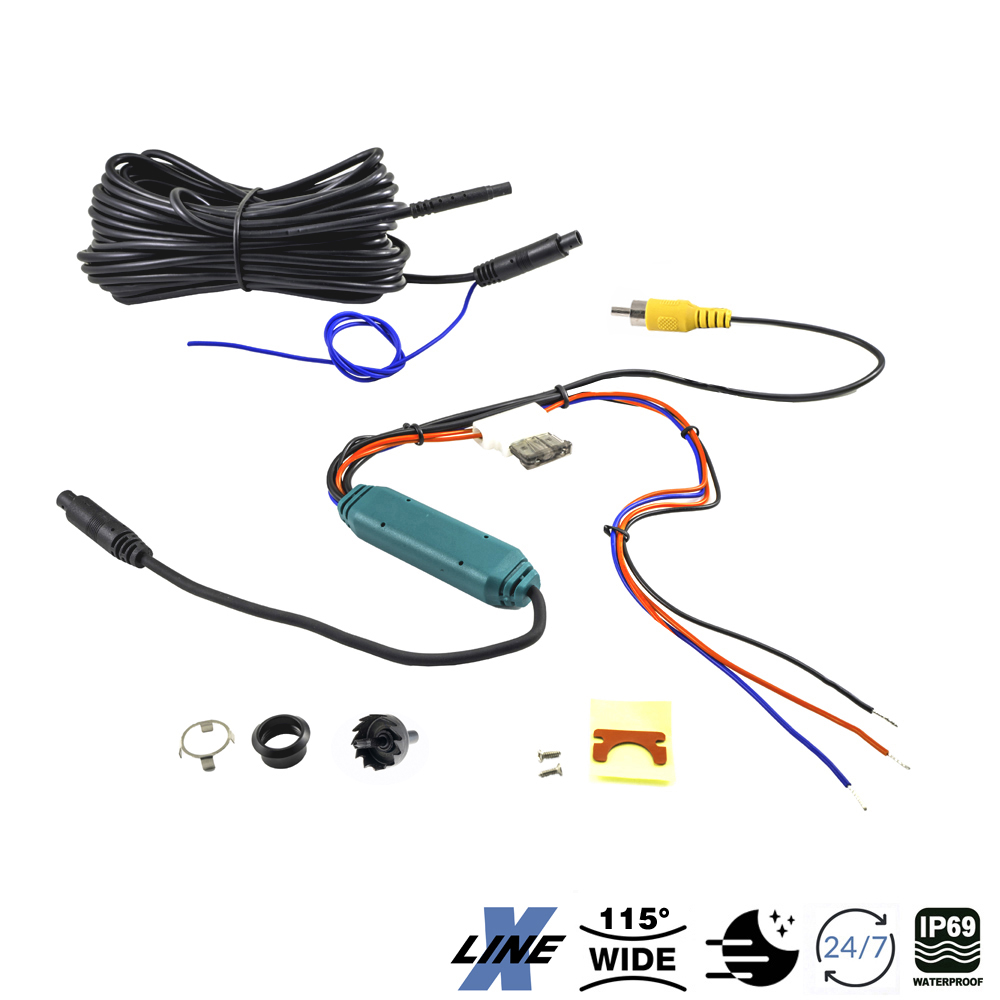

The delivery comes complete with an 8 meter extension cable with high-quality copper strands. In contrast to the larger KCX302, the KCX302-ECO has no input for an optional front camera and a switch-off delay that either leaves the rear view camera or optional front camera active for a few seconds longer.
FEATURES
< /span>

•  HD wide-angle camera in a plastic housing
•  Can be used in 24/7 continuous operation
•  IP69K waterproof with stainless steel bracket

TECHNICAL DATA

• 2 different auxiliary lines: switched off at the factory (can be switched on)
•  black matt housing with stainless steel fastening
•  Image playback mirrored (adjustable)
•  Image playback rotated 180° (adjustable)
•  Image sensor type 1/4'' 1233 HD Color CMOS Low Light Sensor
•  Video signal NTSC with 60 frames/second
•  Resolution pixels 960H×480V
•  DIN protection class IP69K
•  Resolution 800 TV lines
•  Exposure 1/50-60~1/15000 seconds
•  S/N ratio =>46dB
•  Dynamics >>74dB
•  Light sensitivity < 0.01 Lux/F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 volts DC
• Power consumption 25-55mA
•  diagonal viewing angle 170°
•  horizontal viewing angle 115°
•  vertical viewing angle 95°

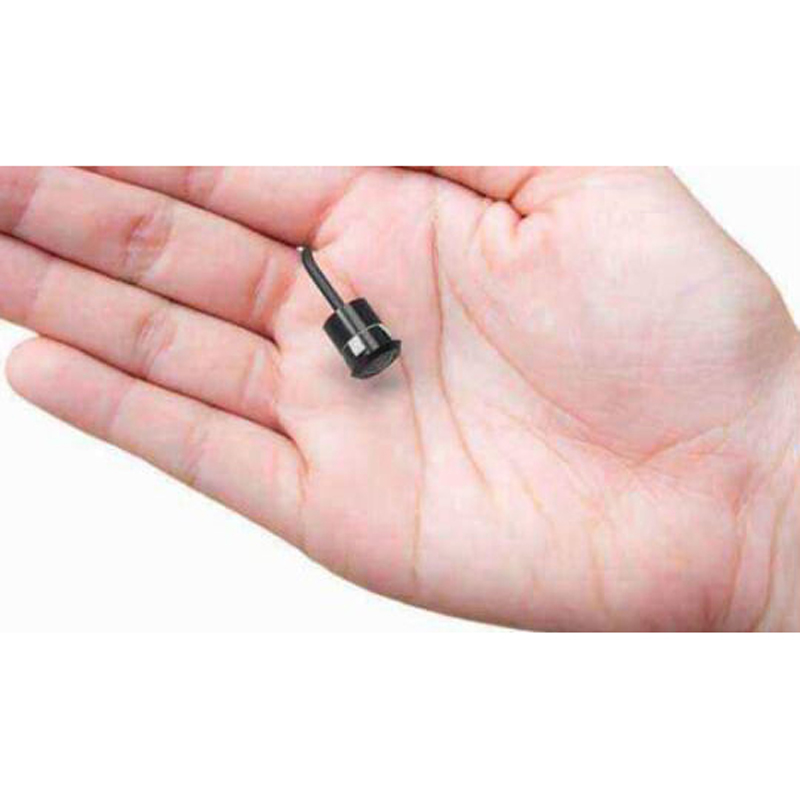

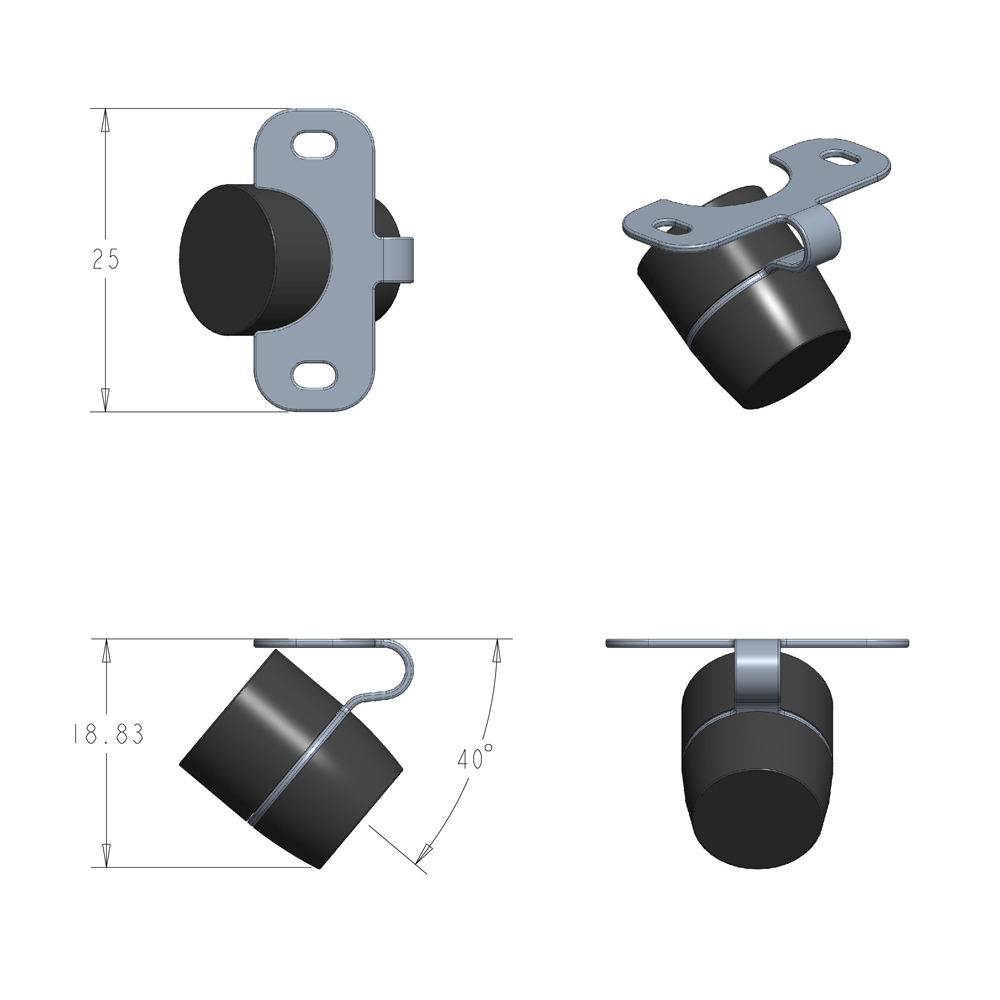

• Design dimensions camera 12.5 x 15mm
•  Working temperature -40°C to +75°C
•  Storage temperature -60°C to 105°C
•  E certified

APPROVAL
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3
