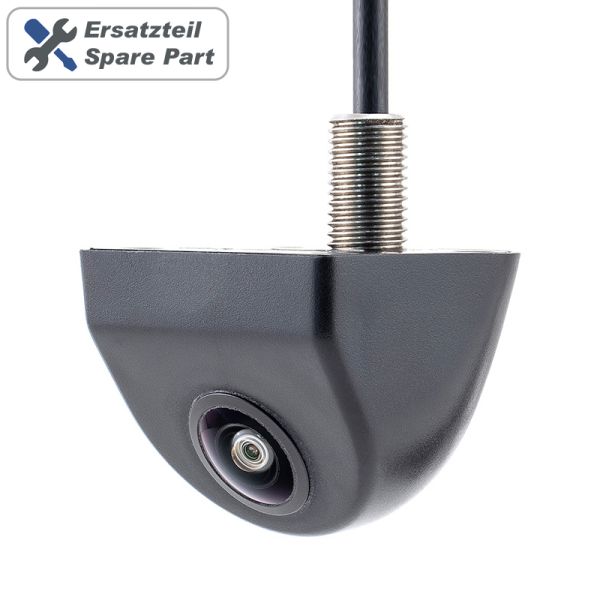

Product information AMPIRE replacement rear view camera

Replacement camera for the KCX801 or KCX801-ECO without cabling and power supply.
FEATURES

•  HD wide-angle camera in a robust plastic housing
•  Can be used in 24/7 continuous operation
•  IP69K waterproof

TECHNICAL DATA

•  2 different auxiliary lines: switched off at the factory (can be switched on)
•  matt black plastic housing with stainless steel fastening
•  Image playback mirrored (adjustable)
• Image playback rotated 180° (adjustable)
•  Image sensor type 1/4'' 1233 HD Color CMOS Low Light Sensor
•  Video signal NTSC with 60 frames/second
•  Resolution pixels 960H480V
•  DIN protection class IP69K
•  Resolution 800 TV lines
•  Exposure 1/50-60~1/15000 seconds
•  S/N ratio =>46dB
• Dynamics >>74dB
•  Light sensitivity < 0.01 Lux/F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 volts DC
•  Power consumption 25-55mA
•  diagonal viewing angle 140°
•  horizontal viewing angle 106°
•  vertical viewing angle 78°
•  Design dimensions camera 25.8x28.2mm and 20.8mm high
•  8mm drill hole
•  Working temperature -40°C to +75°C
•  Storage temperature -60°C to 105°C
•  E certified
