Product information Ampire KVA300 - rear view camera black, 125°, IP69K, rear installation, 10m cable

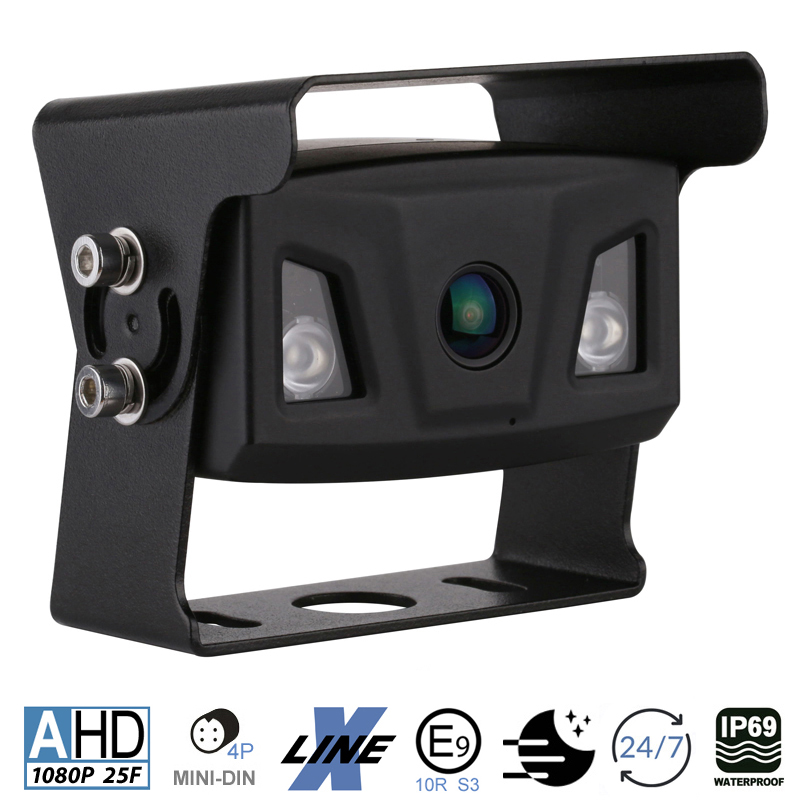

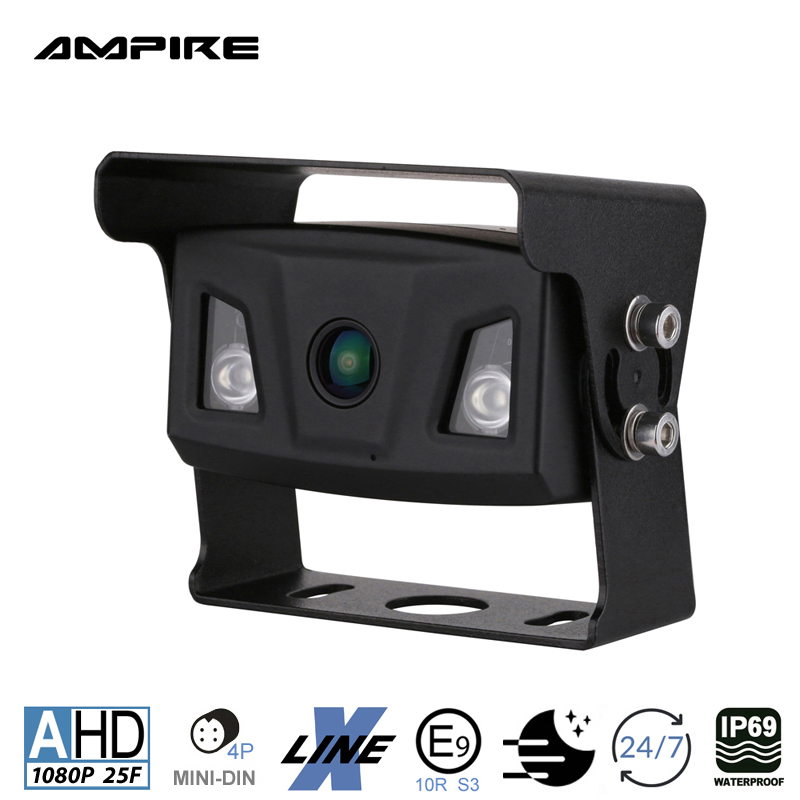

The Ampire KVA300 Professional AHD camera impresses with its very robust construction with high-quality AHD sensor and 160° diagonal viewing angle.
The camera is equipped with powerful infrared LEDs for good visibility even in poor lighting conditions and especially in total darkness (0 lux).
The robust construction enables permanent use in extreme conditions around the clock (24/7). The camera meets the highest IP69K protection class for water and dust protection.
It can be operated at temperatures from -30 to +70 °C.
Of course, the Ampire camera also undergoes our comprehensive and strict quality assurance process with 100% piece testing in all essential production steps.
The KVA300 is also perfect as an underbody camera for mobile homes in order to be able to position the waste water drains precisely over a floor inlet.
Technical data
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Infrared illumination for nighttime visibility
- Signal-to-noise ratio >43dB
- Automatic white balance
- Image display mirrored horizontally
- Guide lines: switched on (can be switched off using a cable loop separate)
- horizontal viewing angle 125°
- vertical viewing angle 70°
- diagonal viewing angle 165°
- Protection class IP69K waterproof
- Operating voltage: 9-16 Volt DC
- Power consumption: max. 250mA
- Operating temperature: -20° to 70°C
- Color: black
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

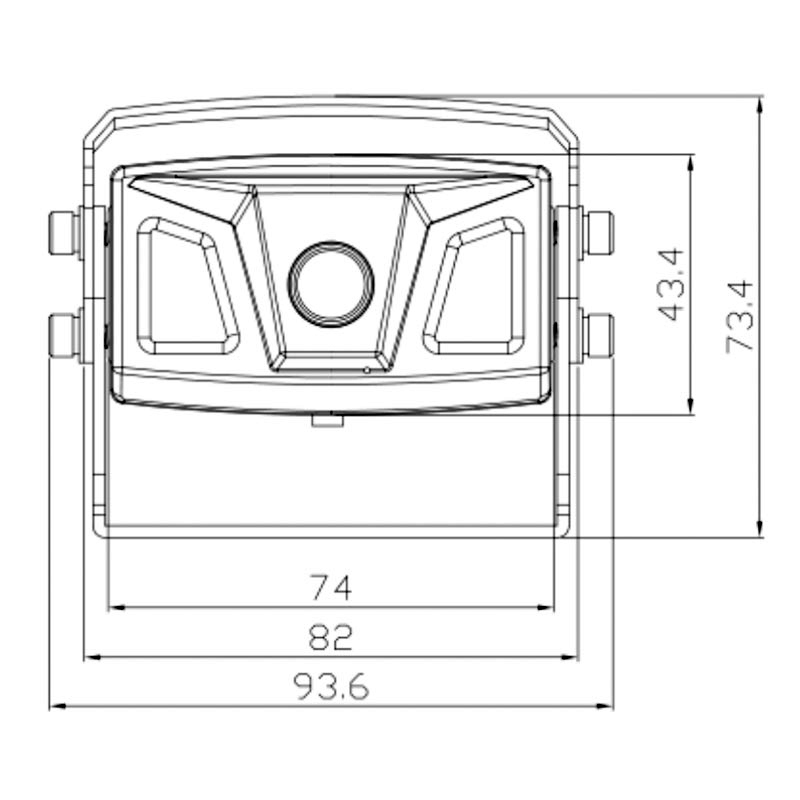

- Dimensions: 94x74x50mm

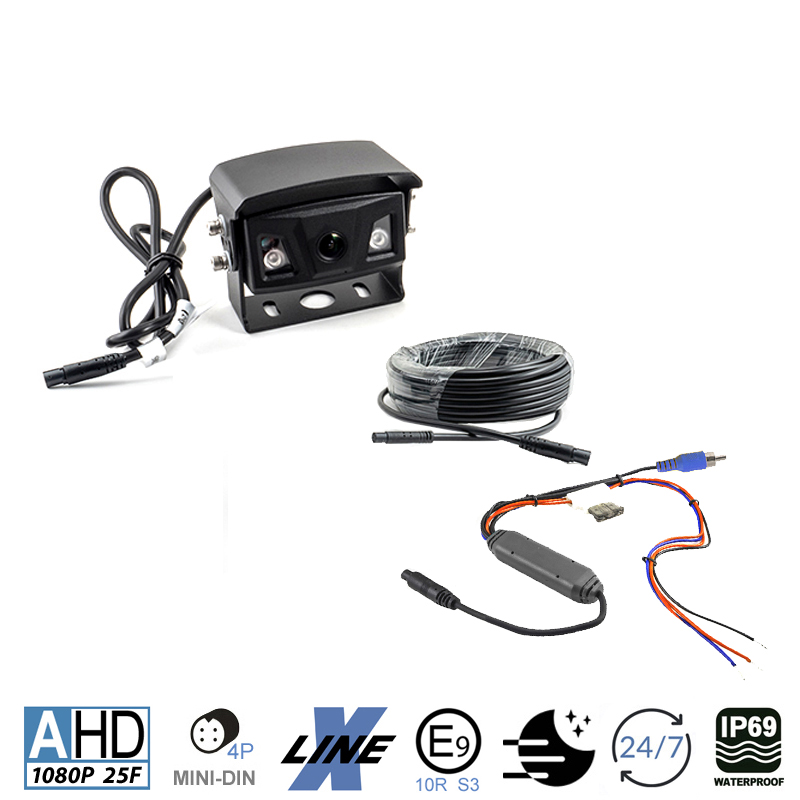

Scope of delivery
- Rear view camera
- AK1035 power supply
- AK1034 mini-DIN extension cable 10m
Note on ordering
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second.
This camera can only be connected to compatible monitors, car radios or interfaces.
If the camera input on your monitor can only display a video signal in CVBS, FBAS or NTSC, this AHD camera is unsuitable and you should then use the identical CVBS camera with NTSC video signal
quantity: | 1 piece |
Blickwinkel, diagonal: | 165° |
Perspective, horizontal: | 125° |
Perspective, vertical: | 70° |
Type of Camera: | Rear view camera |
Product group: | Camera |
