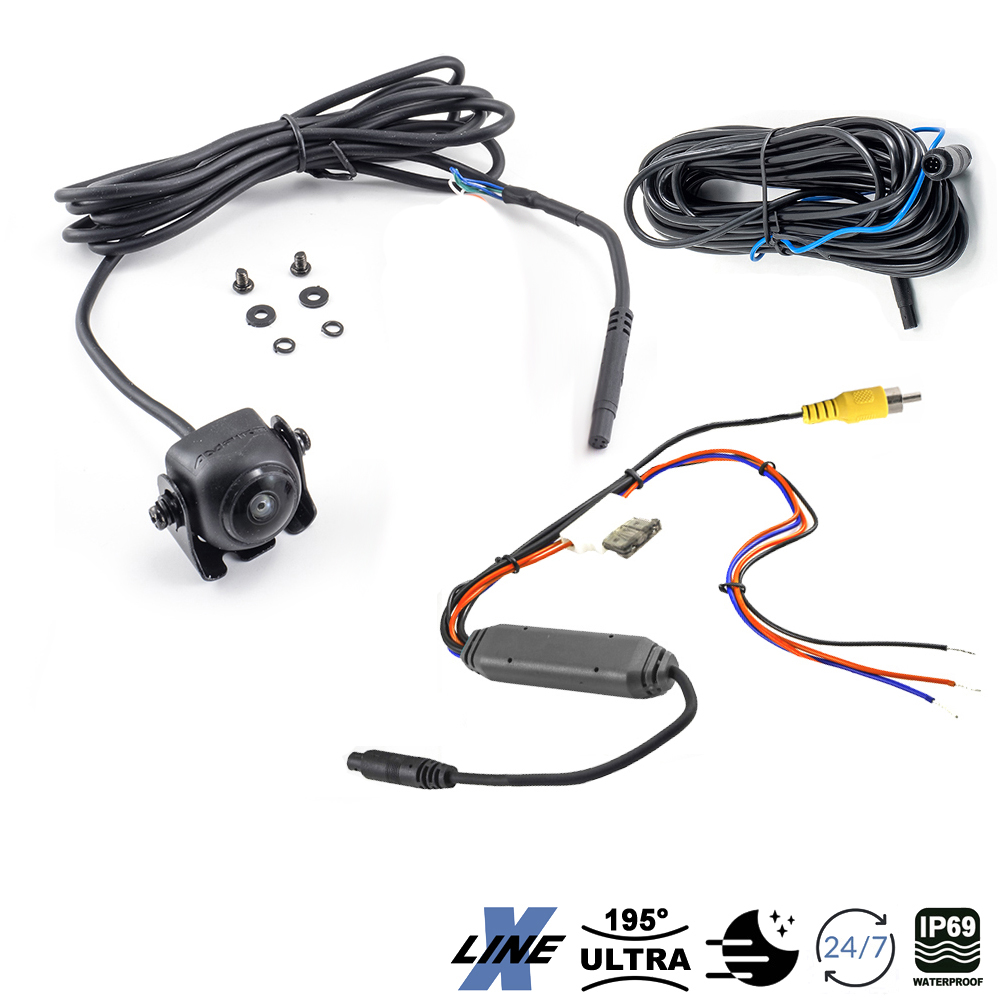

Product information Ampire KCX602 - Mini rear view camera (CVBS), 195°
The KCX602 miniature ultra-wide angle camera is a rear view camera with unlimited application areas in cars, buses, mobile homes, trucks or trailers.
The matt black plastic housing is particularly weather-resistant, IP69K waterproof and very sturdily manufactured.
Two different guide lines (narrow/wide) can be displayed in the video signal, which allows the viewer to park better.
The delivery is complete with an 8 meter extension cable with high-quality copper strands.
Note on ordering
The optional signal filter AC-PNF-RVC2 is a stabilizer for clocked reversing lights with PWM signal. We recommend installing the signal filter if you are not sure whether your vehicle is interference-free..
Technical data
- 2 different guide lines: switched off at the factory (can be switched on)
- black matt plastic housing with stainless steel fastening
- image display mirrored (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type 1/4'' 1233 HD Color CMOS Low Light Sensor
- Video signal NTSC with 60 frames/second
- Resolution pixels 960H×480V
- DIN protection class IP69K
- Resolution 800 TV lines
- Exposure 1/50-60~1/15000 seconds
- Signal-to-noise ratio =>46dB
- Dynamic >>74dB
- Light sensitivity < 0.01 Lux/F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 6-26 Volt DC
- Power consumption 25-55mA
- diagonal viewing angle 210°
- horizontal viewing angle 195°
- vertical viewing angle 142°
- Camera dimensions 25.8x28.2mm and 20.8mm high
- Working temperature -40°C to +75°C
- Storage temperature -60°C to 105°C
- E certified
Approvals
- CE Directive of 2004/108/EC, EN5 5022: 2010, EN 55024: 2010 Report No. STR12058091E
- FCC Part 15B Report No. STR12058092E-3
quantity: | 1 piece |
Blickwinkel, diagonal: | 210° |
Perspective, horizontal: | 195° |
Perspective, vertical: | 142° |
Type of Camera: | Rear view camera |
Product group: | Camera |
