Product information Ampire KCA505 - license plate camera, guide lines, mirrored/anti-reflective, 120°

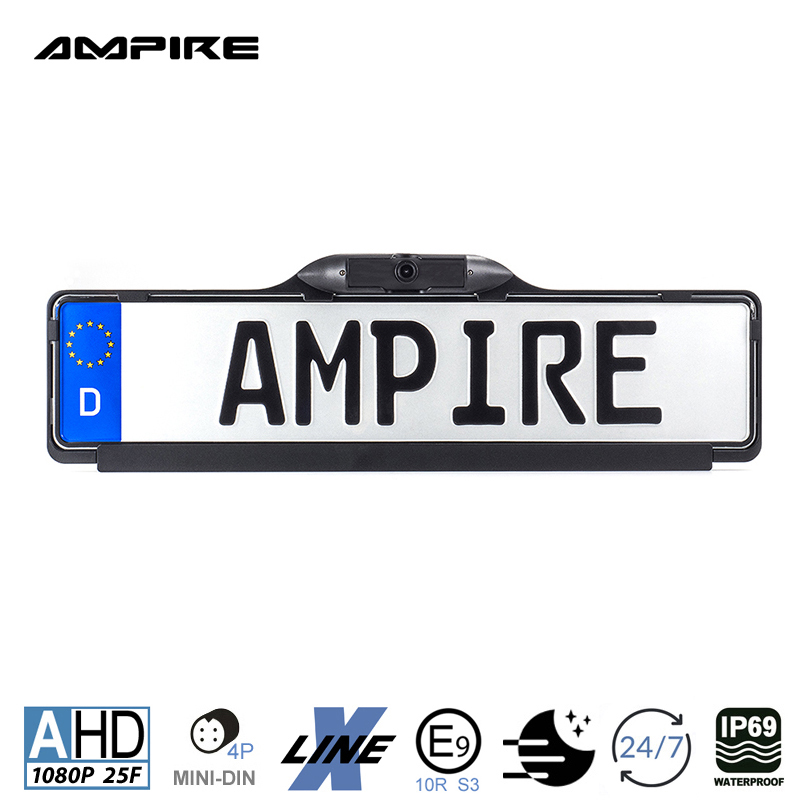

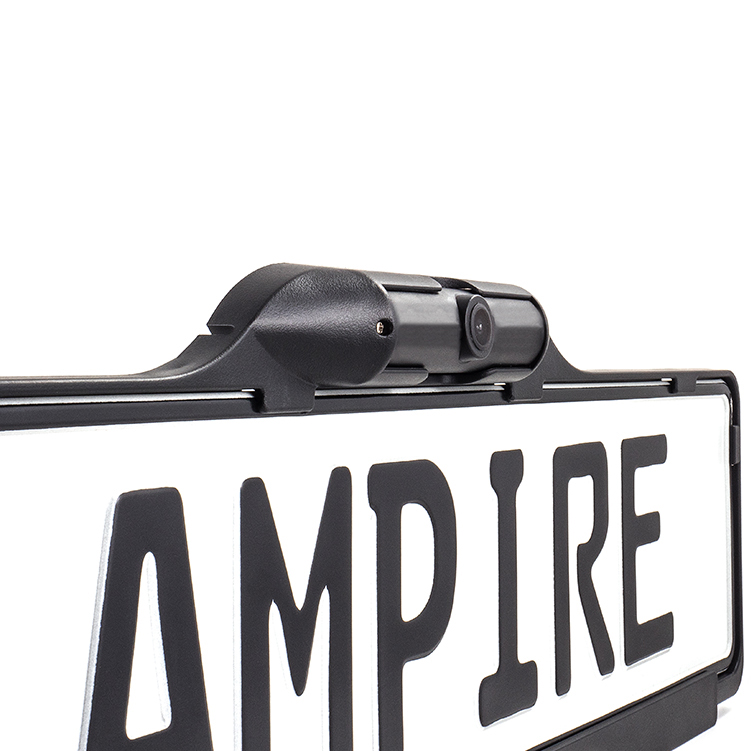

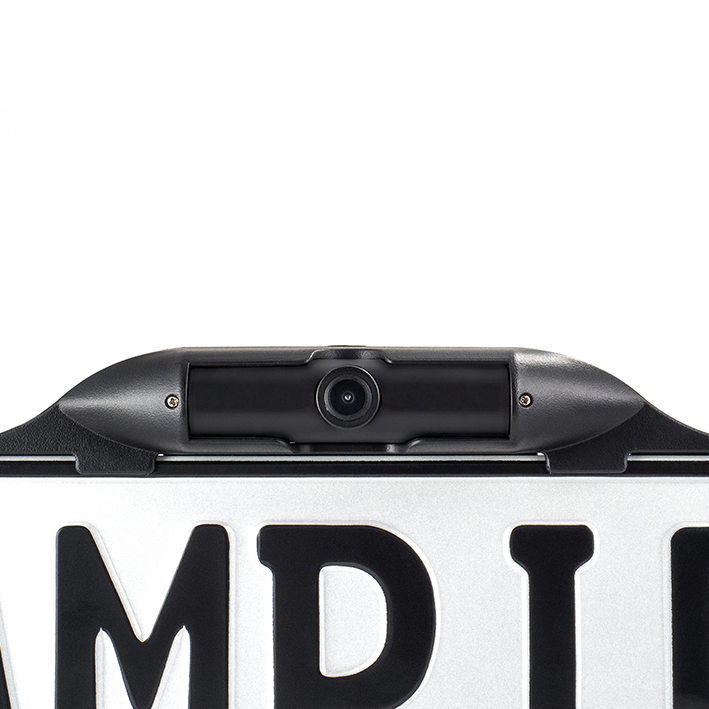

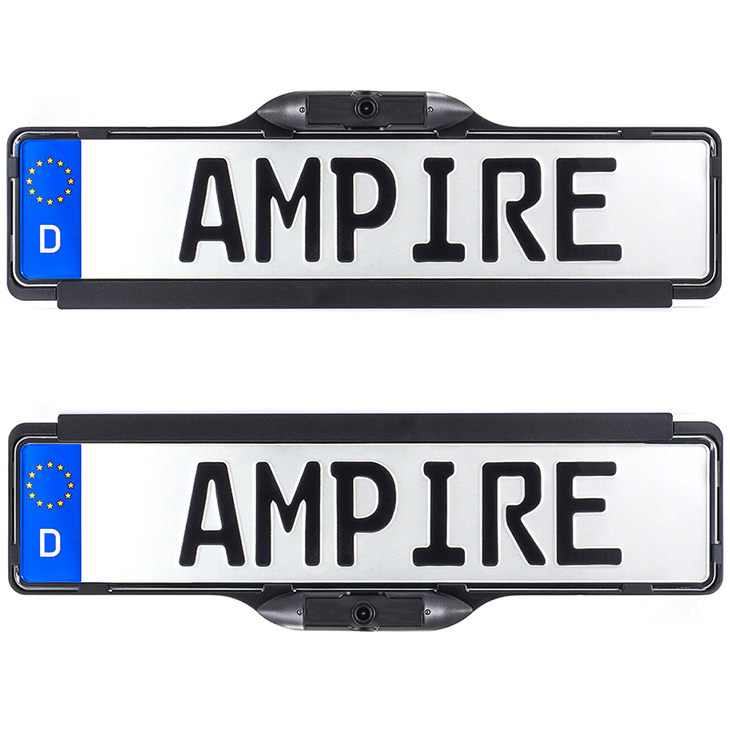

The KCA505 camera has a high-resolution AHD camera integrated in a robust holder for mounting behind the license plate in German EU format.

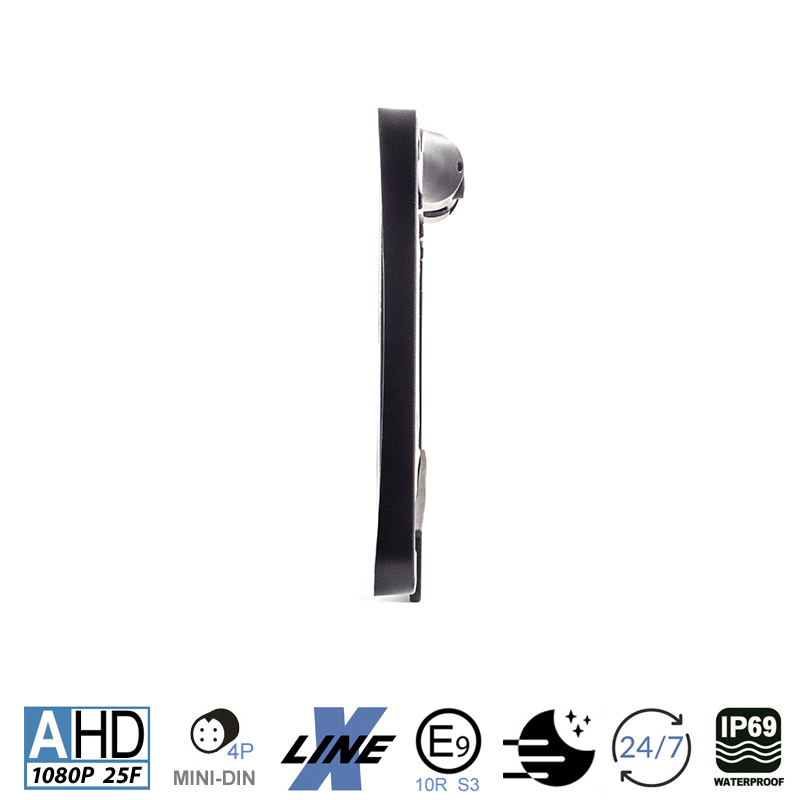

The vertical viewing angle of the camera is of course infinitely adjustable to adapt to the inclination.
The video signal is mirrored for mounting on the rear of the vehicle.
This product has only been developed for German EU license plates measuring 110x520mm.
Please check whether your license plate fits before ordering.
EU license plates from Austria, for example, are 10mm higher and do not fit in the KC505.
Only suitable for reversing operation and not for continuous operation and must not be connected to a constant power supply!
Technical data
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Signal-to-noise ratio >50dB
- Automatic white balance
- Image display mirrored horizontally
- Guide lines: switched on (can be switched off by disconnecting the cable loop)
- horizontal viewing angle 120°
- diagonal viewing angle 150°
- camera head adjustable vertically up to 20°
- Protection class IP69 waterproof
- Operating voltage: 9-16 Volt DC
- Power consumption: max. 75mA
- Operating temperature: -20° to 70°C
- Color: black
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

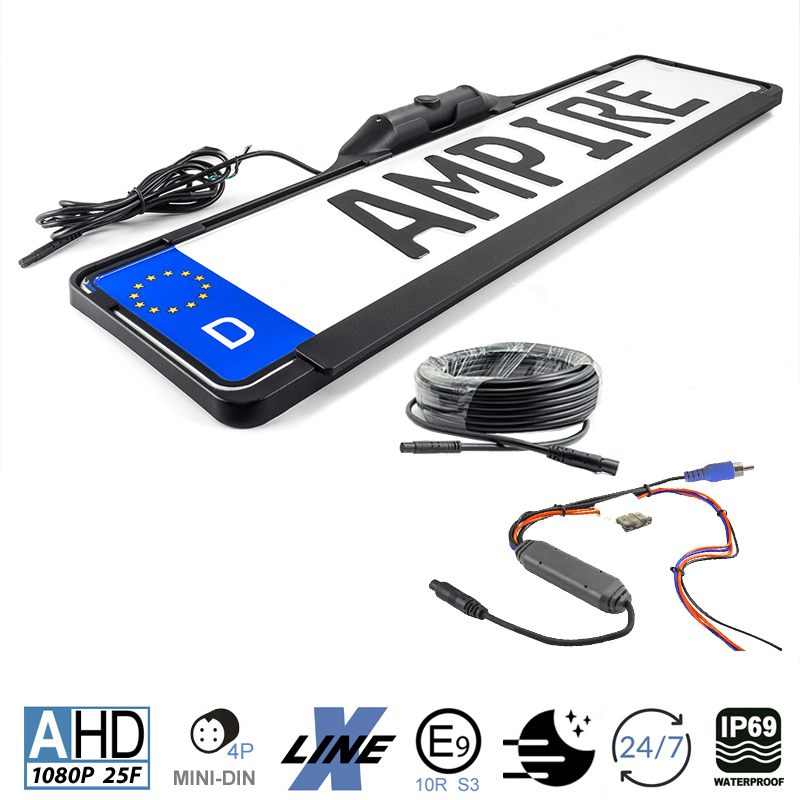

Scope of delivery
- Rear view camera
- AK1035 power supply
- AK1034 mini-DIN extension cable 10m
Note on ordering
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second.
This camera can only be connected to compatible monitors, car radios or interfaces.
If the camera input on your monitor can only display a video signal in CVBS, FBAS or NTSC, this AHD camera is unsuitable and you should then use the identical CVBS camera with NTSC video signal.
quantity: | 1 piece |
Blickwinkel, diagonal: | 150° |
Perspective, horizontal: | 120° |
Perspective, vertical: | 20° |
Type of Camera: | Rear view camera |
Product group: | Camera |
