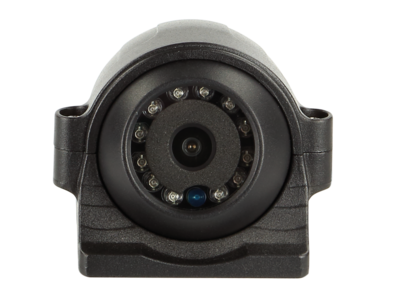

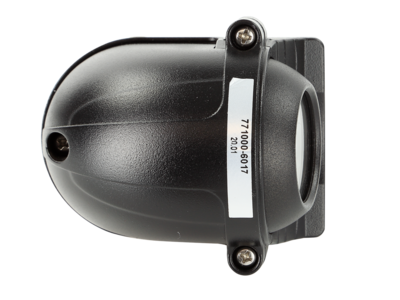

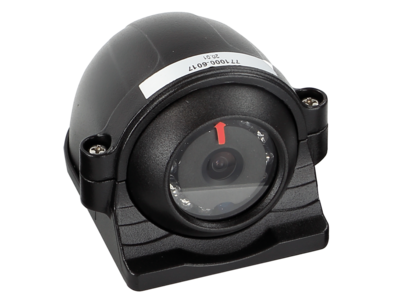

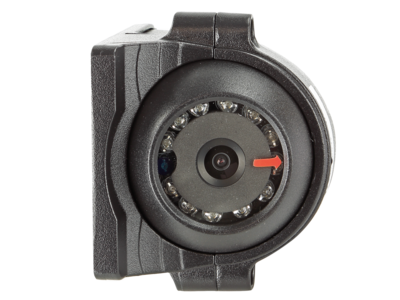

ACV 771000-6017 - Side camera van/mobile home/truck with night vision

Universal side camera

• Design: round
• Mounting type: Attachment
• Various installation options / night vision function

Camera product features:

• Construction: plastic / metal
• Color: black

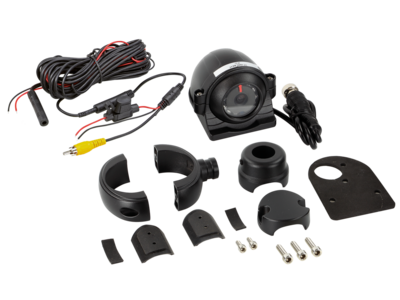

• Extras: various holders / night vision function
• Sensor type: 1/3" CCD
• Image system: NTSC color
• Effective pixels: 752 x 582
• Lens: 2.8mm
• Min.Lux: 0 Lux with active night vision function
• Night vision: 10 meters
• Resolution: 600 TV lines
• Viewing angle: diagonal 130°
• Viewing angle: horizontal 95° vertical 65° +5°
• Dust and water resistant: IP68
• Connection: 4 pin system plug(m)
• Operating voltage: +12V DC
• Supply voltage: +12V DC
• Current consumption: max. 200mA when switched on Night vision function
• Operating temperature range: -30°C - 75°C
• Storage temperature: -40°C - 80°C
• Dimensions: L / W / H / - 89.5 mm / 63.4 mm / 61.4 mm
• Connection cable on the camera 1m +/-: 4 Pin system plug(m)
• Connection adapter 20cm +/-: 4 Pin system plug(f) > 4 pin acv system plug (m) Ø5.2mm

Extension 6.5m +/-:

• 4 pin acv system plug (f) Ø10mm / 4 pin acv system plug (m) Ø5.2mm
• Power cable red 3m +/- wired through
• Ground cable/GND black 3m +/- wired through

Connection cable 20cm +/-:

• 4 pin acv system plug (f) Ø10mm
• red: supply voltage
• black: ground/GND
• Cinch(m) yellow: Video
