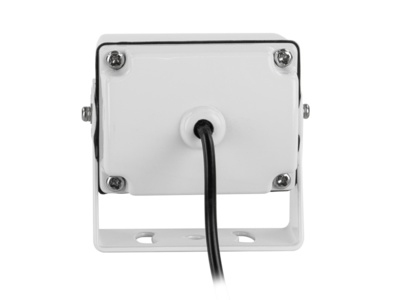

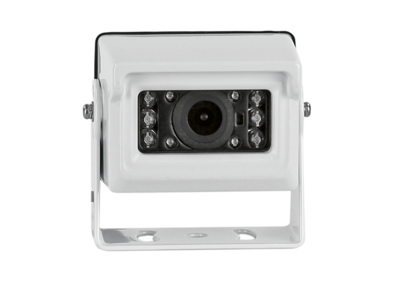

ACV 771000-6021 - Rear view camera for van/mobile home night vision

Universal rear view camera

• Design: van / mobile home
• Mounting type: attachment / roof mounting
• With orientation lines / night vision function

Camera product features:

• Construction: metal
• Color: white
• Extras: orientation lines via jumper / night vision function
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 960 x 480
• Lens: F 2.8
• Min.Lux: 0 Lux with active night vision function
• Resolution: 480 TV lines
• Lens angle: diagonal 120°
• Viewing angle: horizontal 90° vertical 60° +5°
• Dust and water resistant: IP68
• Connection: 4 pin ACV system plug Ø5.2mm
• Operating voltage: +12V DC
• Supply voltage: +12V DC
• Current consumption: 200mA with active Night vision function
• Operating temperature range: -20°C - 75°C
• Storage temperature: -40°C - 85°C
• Dimensions with holder: L / W / H / - 55mm / 55mm / 42mm

Connection cable on the camera 1m+/-:

• 4 pin acv system plug(m) Ø5.2mm
• 1 jumper

Extension 15m +/-:

• 4 pin acv system plug(f) Ø10mm / 4 pin acv system plug (m) Ø5.2mm
• Power cable red 3m +/- through-wired: connection to camera / connection reversing light to monitor
• Ground cable/GND black 3m +/- through-wired: connection body ground/GND to camera / connection body ground/GND directly to monitor

Connection cable 20cm +/-:

• 4 pin acv system plug (f) Ø10mm
• red: supply voltage
• black: ground/GND
• Cinch (m) yellow: Video
