ACV 771000-6702 - Rear view camera universal, camera substructure/mounting mini round

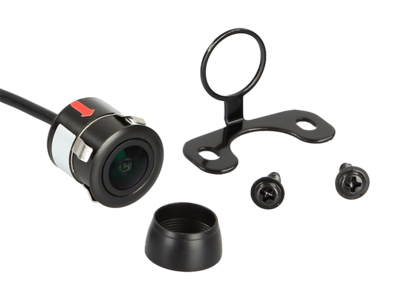

Universal mini rear view camera

• Design: round 18.3 mm
• Mounting type: substructure / structure / installation
• With orientation lines

Camera product features:

• Design: plastic / metal with wing holder
• Color: black
• Extras: orientation lines via jumper / various mounting options
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 976 x 592
• Lens: 1.9mm / F 2.0
• Lux: 0.3
• Resolution: 700 TV lines
• Lens angle: diagonal 170°
• Viewing angle: horizontal 115° vertical 80° + 5°
• Dust and water resistant: IP68
• Connection: 4 pin AC system plug (m) Ø5.2mm
• Operating voltage: +3V DC
• Supply voltage: +12V / +24V DC > with voltage converter
• Current consumption: 200mA
• Operating temperature range: -30°C - 75°C
• Storage temperature: -40°C - 85°C
• Diameter: 16.5 - 18.3 mm depending on attachment

Connection cable on the camera 1m +/-:

• 4 pin acv system plug(m) Ø5.2mm
• 1 Jumper

Voltage converter +3V:

• 4 pin acv system plug (f) Ø10mm / 4 pin acv system plug (m) Ø5.2mm

Extension 6.5m +/-:

• 4 pin acv system plug (f) Ø10mm / 4 pin acv system plug (m) Ø5.2mm
• Power cable red 3m +/- wired through: connection to camera / connection reversing light to monitor
• Ground cable/GND black 3m +/- wired through: connection body ground/GND to camera / connection body ground/GND directly to Monitor

Connection cable 20cm +/-:

• 4 pin acv system plug(f) Ø10mm
• red: supply voltage
• black: ground/GND
• Cinch(m) yellow: video
