Product information Ampire VSC-E-AU17H - Handle bar camera for Audi, Skoda, and VW 2012-2015

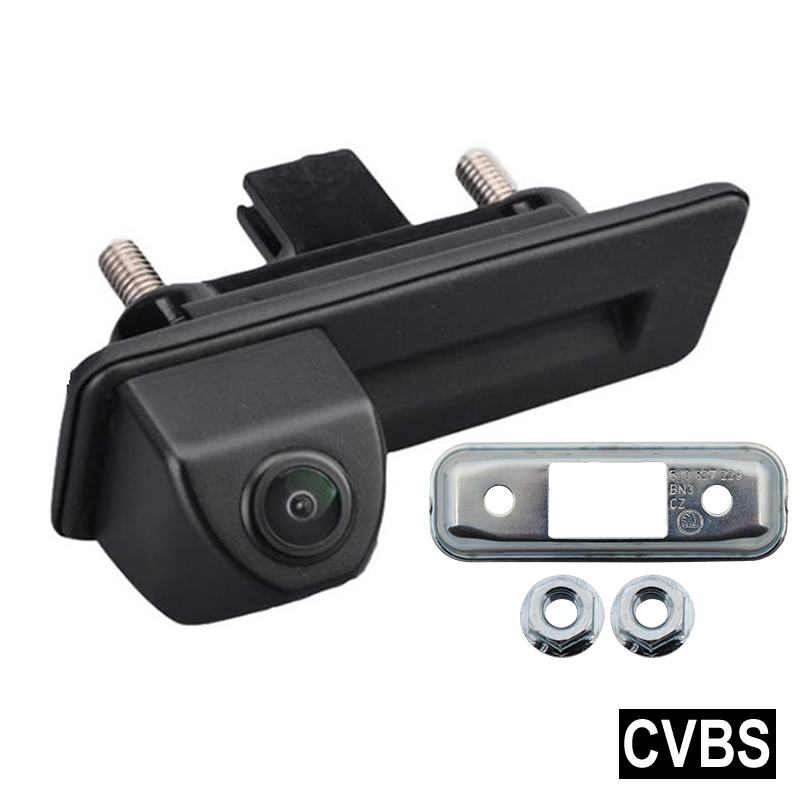

Vehicle-specific replacement rear door handle with integrated rear view camera and switchable distance lines.

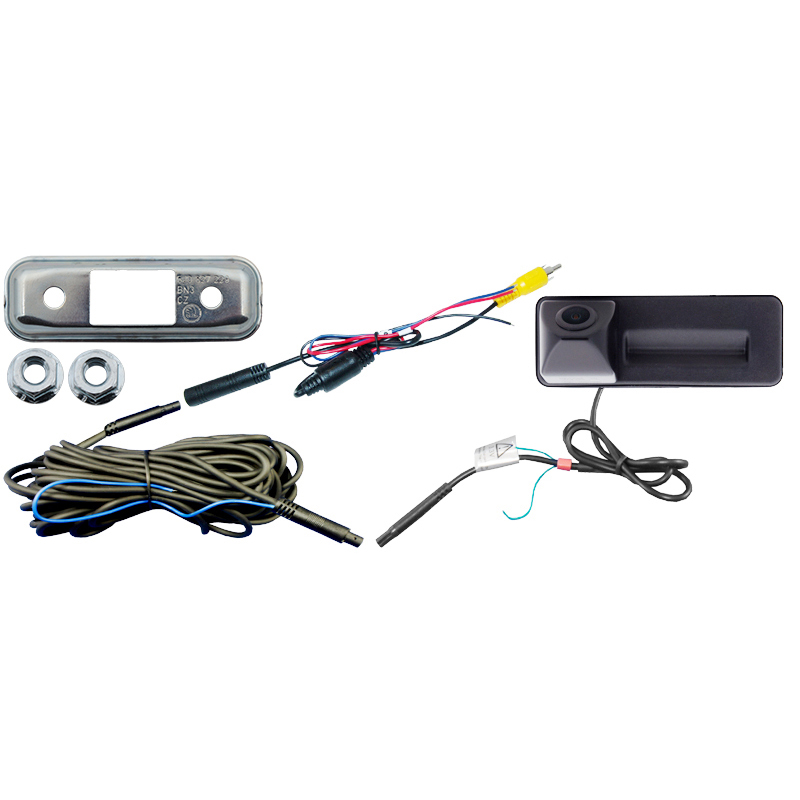

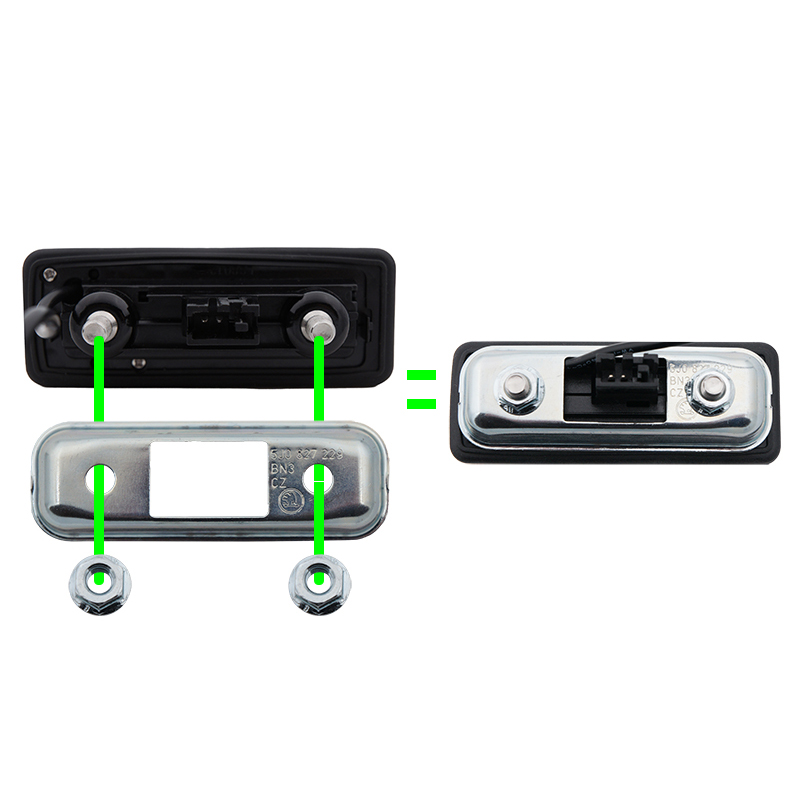

Easy installation by replacing the factory rear door handle. System cable set in sufficient length and with automotive plug connections.
Thanks to the small diameter plug, the cable is easier to lay.
Additional cable for signal transmission, e.g. power supply or reversing signal.

Suitable for:

• AUDI A1 (8X) from 07/2010 to 05/2018
• SKODA Fabia 2 (8J) from 03/2007 to 06/2014
• SKODA Octavia 2 (1Z) from 02/2004 to 02/2013
• SKODA Octavia 2 Combi (1Z) from 01/2005 to 02/2013

• SKODA Roomster (5J) from 05/2006 to 05/2012

• SKODA Roomster Scout/Praktik (5J) from 04/2007 to 2010

• SKODA Superb 2 (3T) from 06/2008 to 06/2013

• SKODA Superb 2 Combi (3T) from 01/2010 to 05/2012

• SKODA Yeti (5L) from 08/2009 to 05/2012

• VW Golf Variant (1K) from 06/2007 to 04/2009

Dimensions

•  Total 92 x 35 x 70mm (W x H x D)
•  Installation opening 72 x 19mm
•  Hole spacing 50mm

Product features

•  Sensor type 1/3 CMOS
•  Image system NTSC
•  Mirrored image (fixed)
•  Distance lines can be switched off
•  Angle horizontal 130°, vertical 90°, diagonal 170°
•  IP68
•  Camera cable 1.8m with 4-pin system system cable socket (diameter 5.9mm)
•  System extension cable 4-pin, 8m with wire for Signal transmission
•  System connection cable 4-pin with cinch plug, power supply, fuse
•  Weight including cable approx. 250g
•  Supply voltage 10-15V
•  Current consumption 0.5W    40mA
•  Fuse 2A
