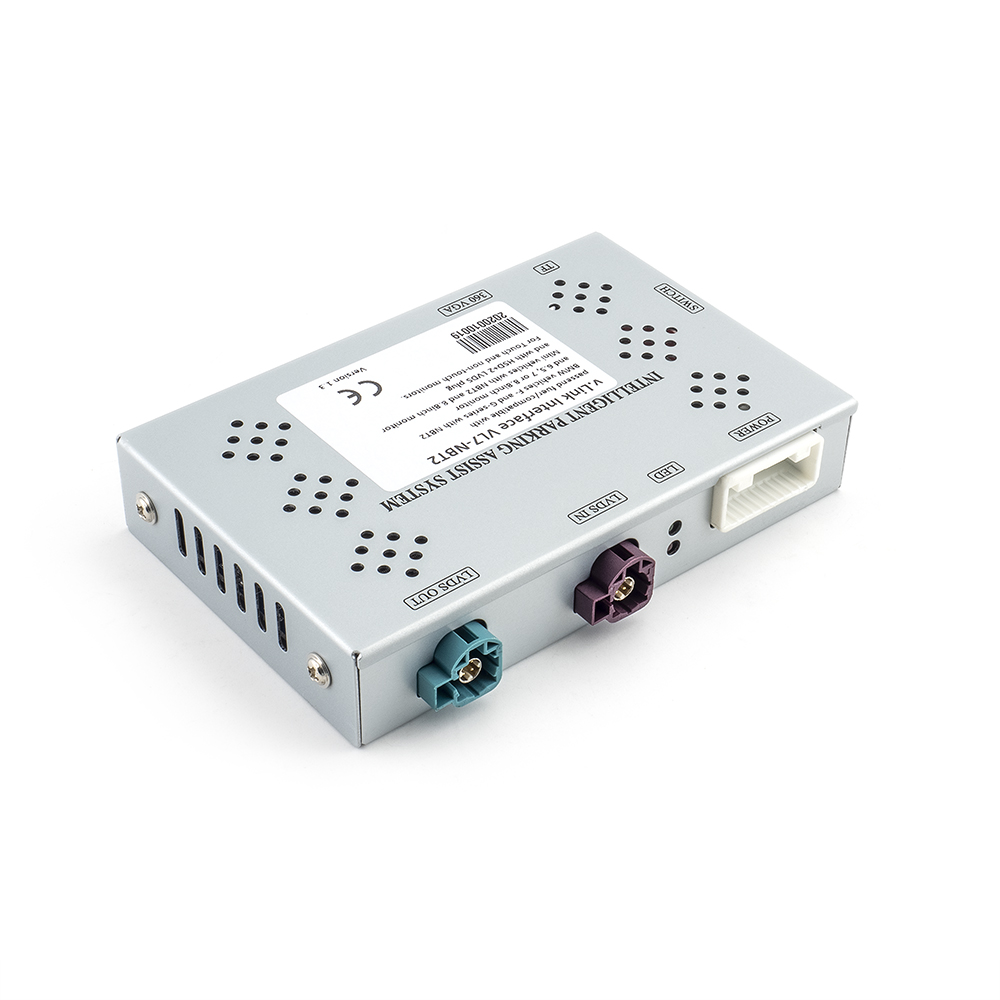

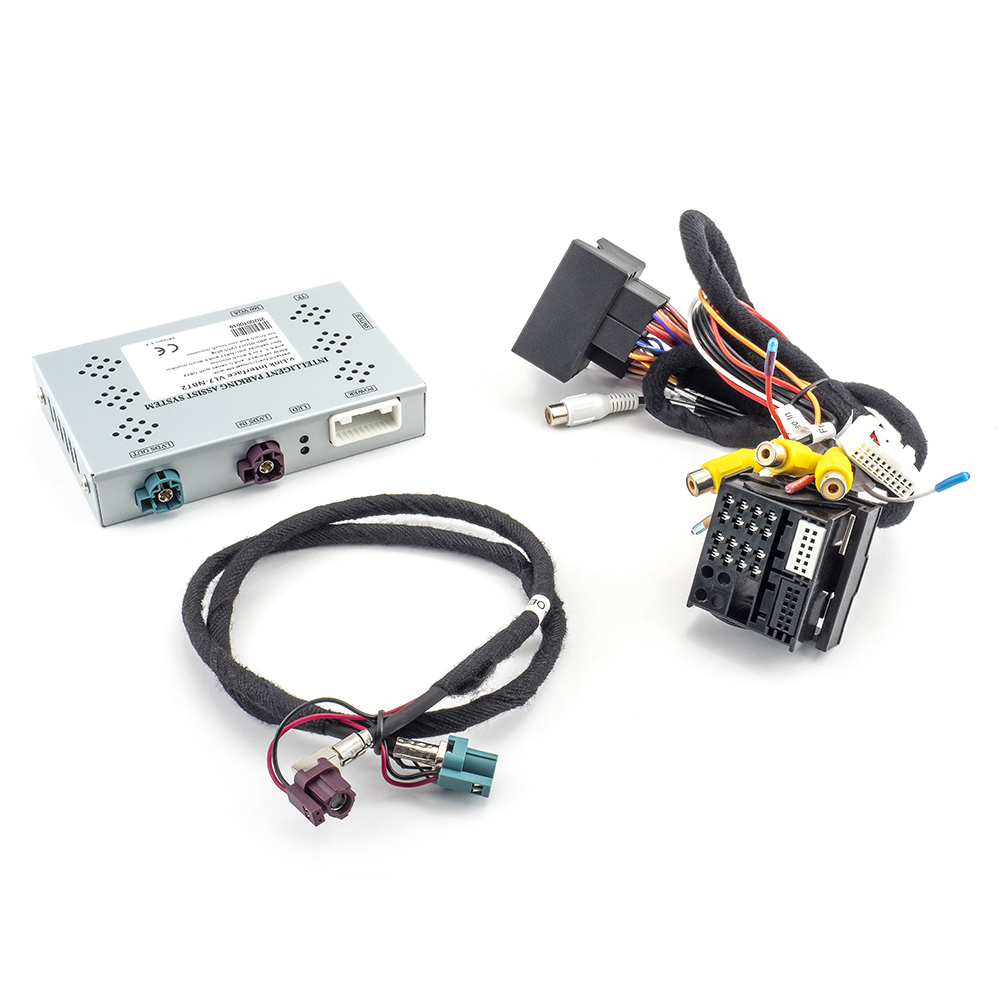

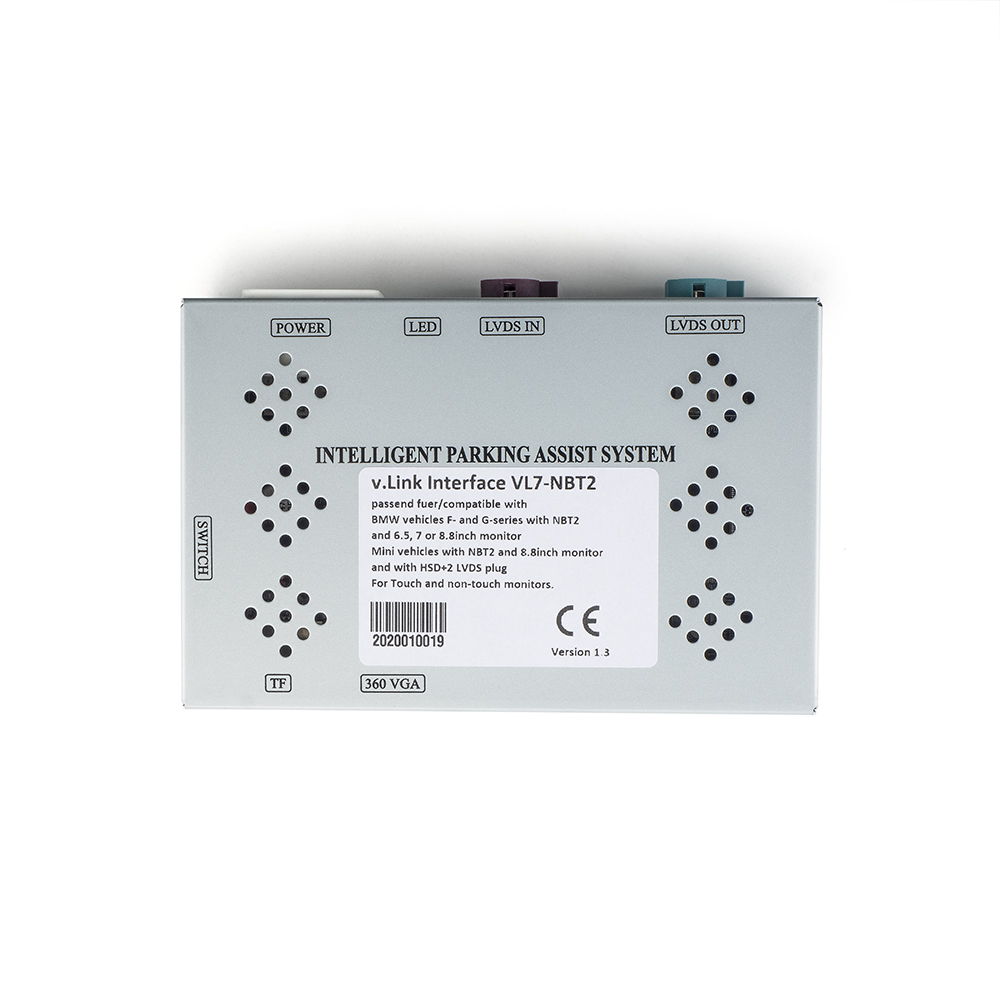

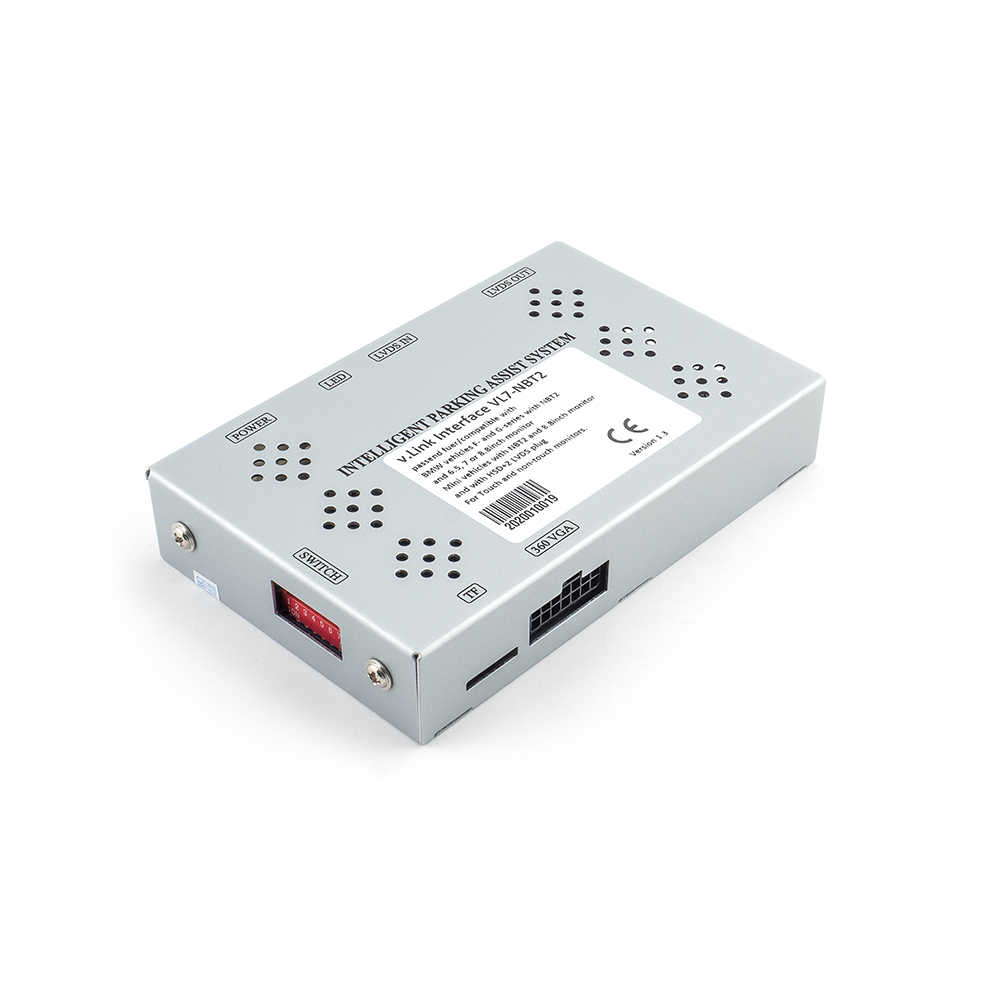

Product information NAVLINKZ v.LiNK interface suitable for BMW NBT2, HSD+2

 v.LiNK video feeder for rear view camera, front camera and another video source.
Suitable for BMW vehicles of the F and G series with NBT2 and 6.5, 7, 8.8 or 10.25 inch monitor and Mini with NBT2 and 8.8 inch.
With HSD+2 LVDS connection. For touch and non-touch monitors.
Description
The v.LiNK interface enables the feeding of a rear view camera, a front camera and another video source (e.g. USB player, DVB-T2 tuner, ...) to the vehicle manufacturer's factory infotainment system.
Product features

• Video feeder for factory infotainment systems
• 1 CVBS input for rear view camera
• 1 CVBS input for front camera
• 1 CVBS video input for retrofit devices (e.g. USB player, DVB-T2 tuner, ...)
• Automatic switching to rear view camera input when engaging reverse gear
• Automatic front camera switching after disengaging reverse gear for 10 seconds
• Moving distance lines can be activated for the rear view camera (not for all vehicles)
• Image activation while driving (ONLY for fed-in video)
• Video inputs NTSC compatible

Compatibility

• ManufacturerModelNavigation
• BMWF series models from around 05/2016 and
• G-series models
• with NBT2 (new main menu + flatter iDrive) radios, S6UNA Navigation, S606A Business Navigation, S609A Professional Navigation or S6UPA Navigation Plus
• NBT2 EVO - F+G series
• 6.5, 7, 8.8 and 10.25 inch monitors
• Mini vehicles from around 2016/2017609 Professional Navigation NBT2 Evo
• 8.8 inch monitor (new main menu)

Limitations
Video onlyThe interface does NOT feed in any audio signals.
To feed in audio signals, a possibly existing factory audio AUX input or an FM modulator can be used.
Factory reversing cameraAutomatic switch to the factory reversing camera is only possible as long as reverse gear is engaged (no delay in switching possible).
The automatic switchover to the factory rear view camera does not work from the video mode of a video source connected to the video input of the interface.
After-market front camera switchover to the front camera occurs automatically after disengaging reverse gear for 10 seconds.
Manual switching to the front camera is not possible.
Moving distance linesThe display of the moving distance lines does not work in all vehicles.
Factory PDC displayThe display of the factory PDC display does not work in all vehicles.
Image formatsOn 8.8 inch and 10.25 inch monitors, the display of the fed video sources is only possible in full screen mode (stretched)!< /span>
Video sourcesOnly NTSC video sources compatible.

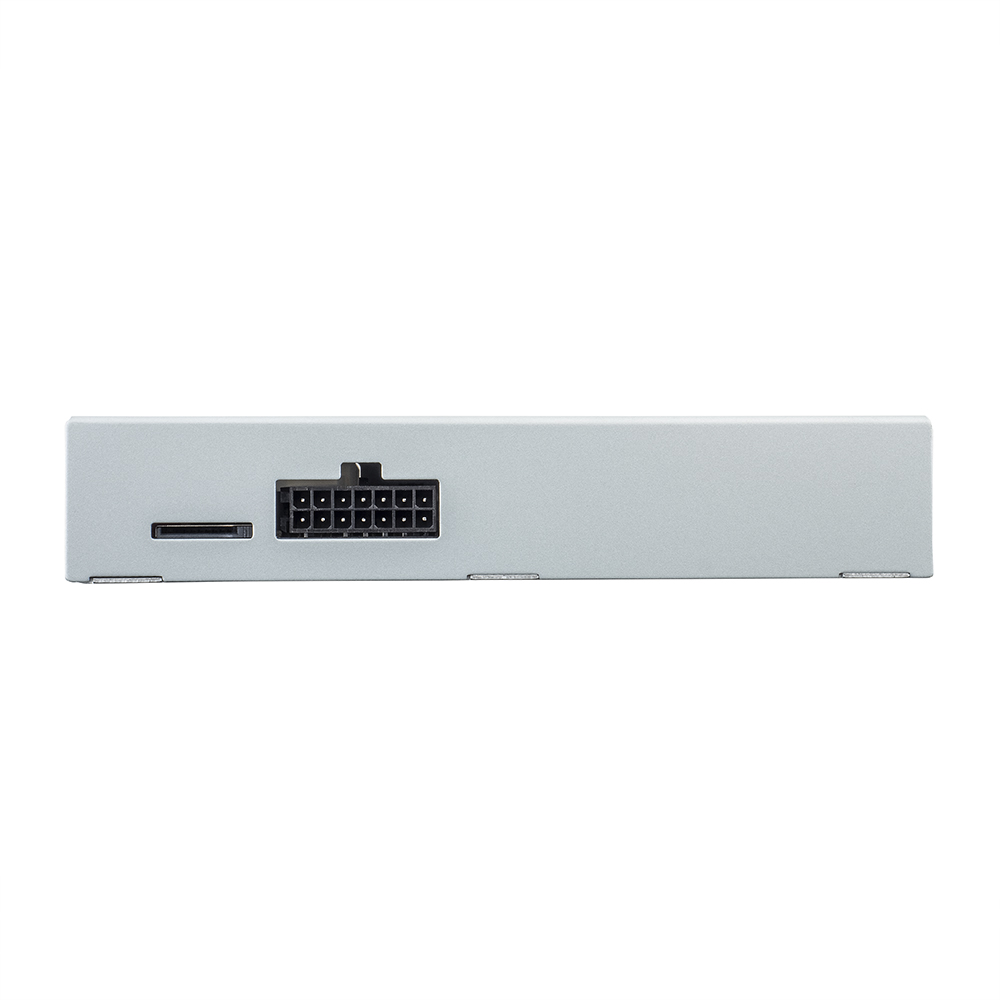

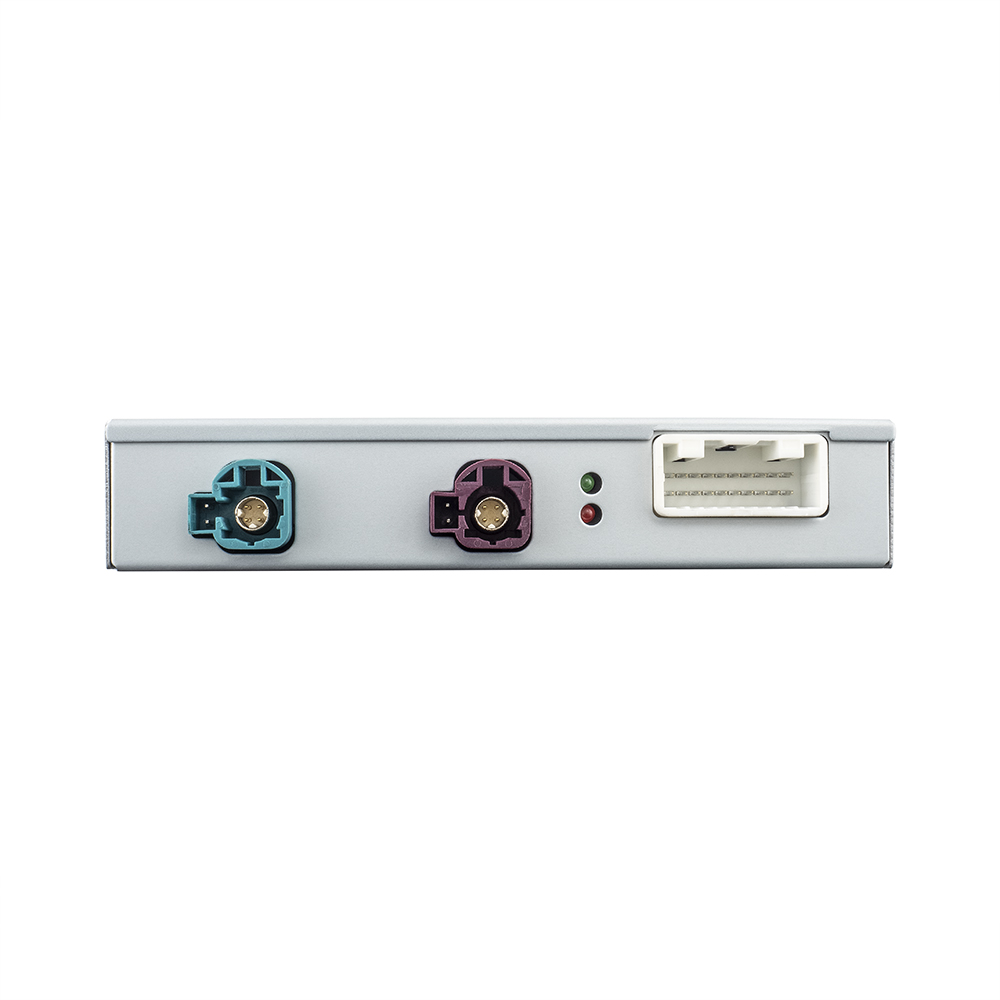

Connectors

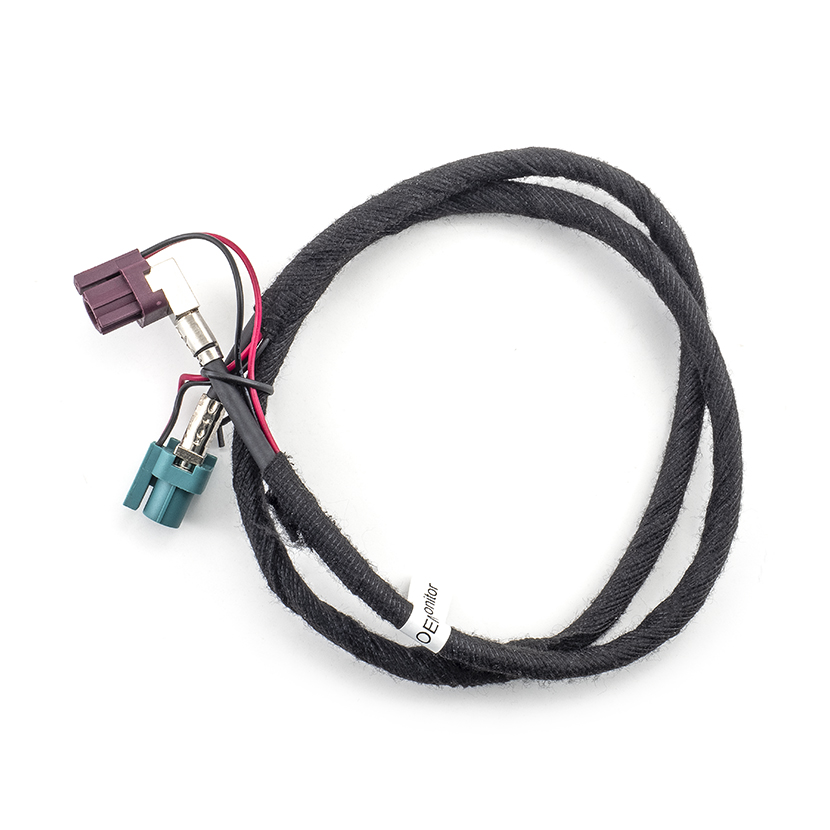

• Image input: 4+2-pin HSD+2

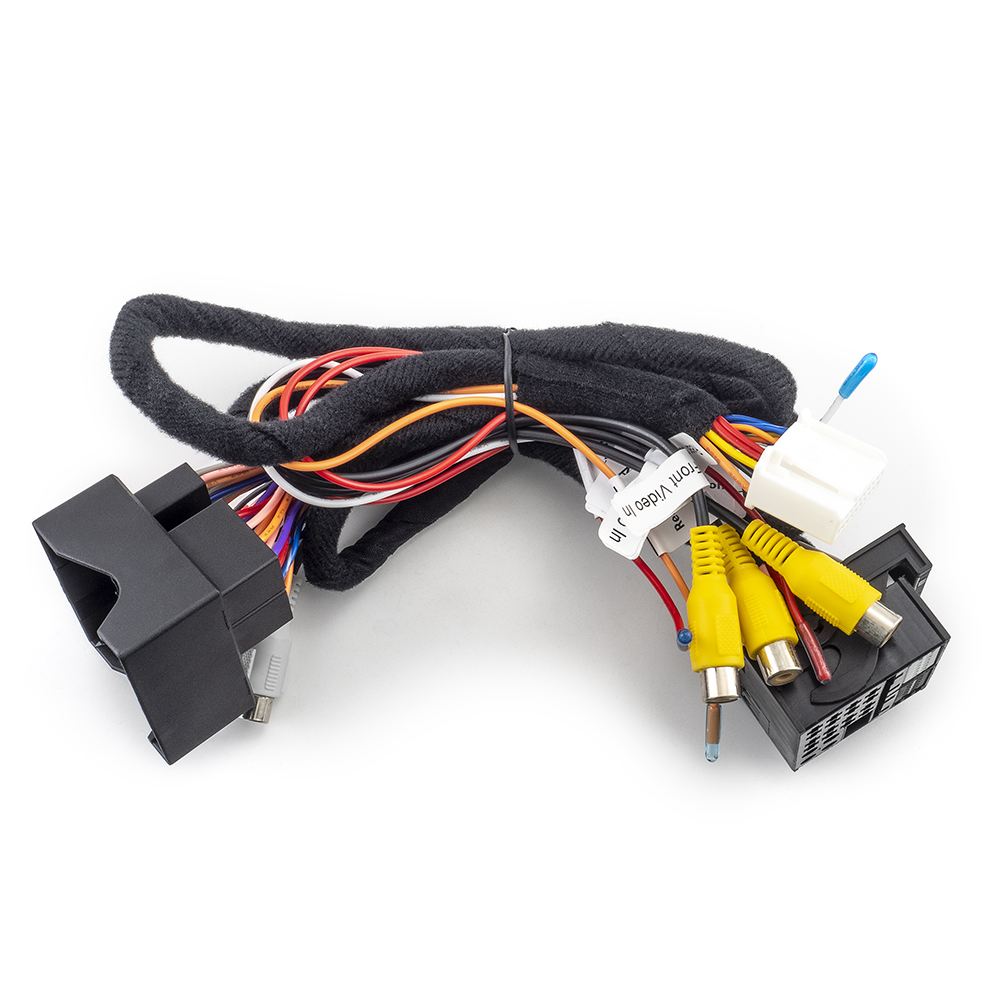

• Power and CAN bus: Plug & Play (Quadlock insert)
• Video input: Cinch socket
• Reversing camera input: RCA socket
• Front camera input: RCA socket

Technical data

• Operating voltage 12V DC
• quiescent current 2mA
• Current consumption 450mA
• Video input formatsNTSC
• Operating temperature -40°C to +85°C
• Dimensions video box 130 x 88 x 25mm (W x H x D)

Legal notice
The driver must not be distracted, directly or indirectly, by moving images while driving. In most countries/states this is prohibited by law.
In addition to being used when stationary, this product is only intended to display standing menus (e.g. MP3 menu from DVD players) or images from the rear view camera while driving.
