Ampire KV-DUCATO-5G - Rückfahrkamera für FIAT Ducato / Citroen Jumper / Peugot Boxer

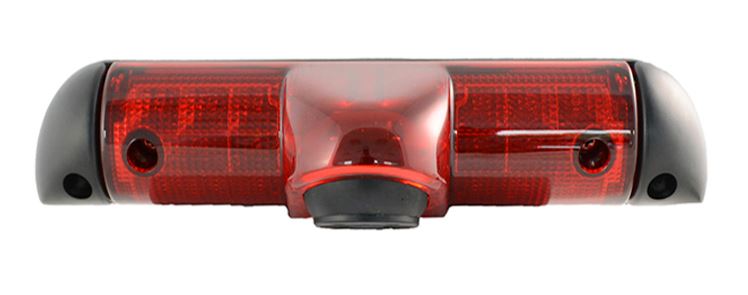

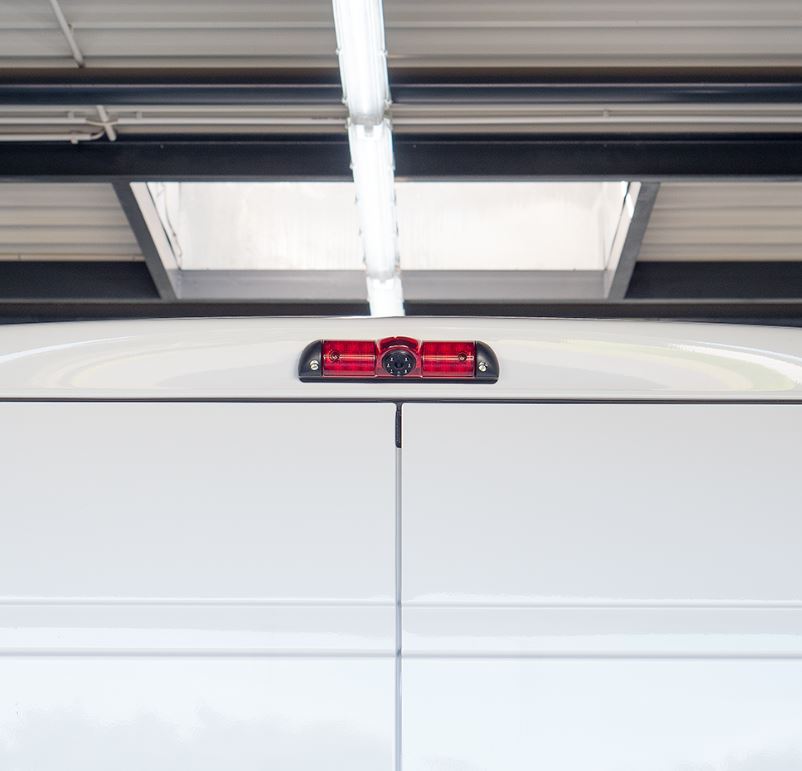

Vehicle-specific reversing camera with microphone for the FIAT Ducato motorhome or motorhome based on the identical CITROEN Jumper, PEUGEOT Boxer up to Facelift. The KV-DUCATO-5G is simply exchanged for the factory brake light glass. Infrared lighting is integrated in the camera housing, which ensures sufficient illumination even in the dark. In the second generation of this camera, an improved camera chip with a significantly higher resolution was used.

Technical specifications

• Fastening screws accessible from the front
• Image reproduction mirrored
• Auxiliary lines: switched on at the factory (can be switched off by separating a cable loop)
• Image sensor: "CMOS PC7070
• Resolution 648x488 pixels
• Viewing angle 170 ° diagonally
• Viewing angle 120 ° horizontally
• vertical adjustability of the camera 20 °
• Image format: NTSC
• 580 lines resolution
• IP68 waterproof
• Integrated infrared lighting
• Integrated microphone
• Operating voltage: 9-16 volts DC
• Power consumption: max. 150mA
• Operating temperature: -30 ° to 70 ° C
• Minimum lighting: 0 lux
• Color: Black
• Cable length: 10 meters
• E approval E9-10R-05.1652
• CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
• FCC approval ANSI C63.4-2003

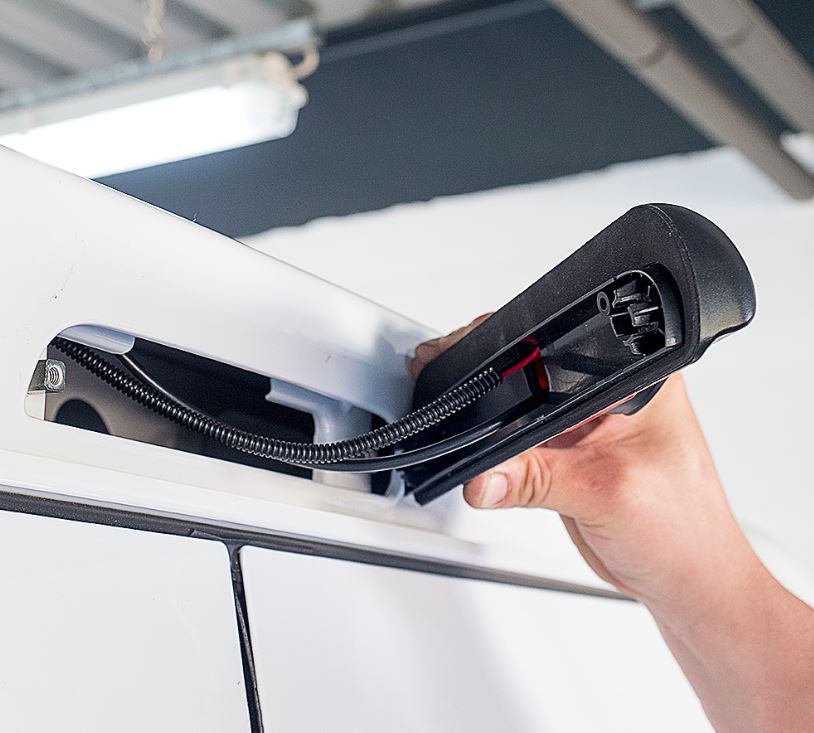

Installation note

• The camera is not suitable for continuous operation or monitoring. It must not be operated with an ignition (K15), as this could damage the camera through overheating.
• Depending on the roof structure and the trailer coupling installed on the vehicle, you may not be able to see the trailer coupling on the monitor.
• In the case of mobile homes and other special structures, the installation of the camera can be much more complex or not possible.

Legal notice

Not allowed within the scope of the StVZO and ECE. The commissioning of this article is not permitted in the area of the StVZO. Items shown and listed are for show purposes and for motorsport only!
An increase in vehicle dimensions, with the exception of cars and motorcycles, is subject to registration and must be assessed immediately by the technical test center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or converting the vehicle, ask an officially recognized expert for motor vehicle traffic or a test engineer from a monitoring organization whether the operating license will be affected or whether the change can be approved at all. The return of a used camera for credit is excluded.
