Alpine iLX-F115TRA - 1DIN media system

Alpine Halo11 iLX-F115TRA - car radio with 11-inch touchscreen, DAB+, 1-DIN installation housing, wireless Apple Carplay and Android Auto support for Ford Transit (from 2018)

The iLX-F115DU Alpine Halo11 in its second generation is the logical continuation of Alpine's world-famous Halo product line. It has a gigantic, high-resolution 11-inch WXGA touchscreen in HD resolution and is optimally tailored to your Ford Transit. The super-slim HD display simply seems to float above your dashboard and can be tilted for the best viewing angle. Enjoy the features of Apple CarPlay Wireless and Android Auto (wired), DAB+ digital radio, USB video playback, Hi-Res audio playback, Bluetooth hands-free and audio streaming and much more with this amazing car radio.

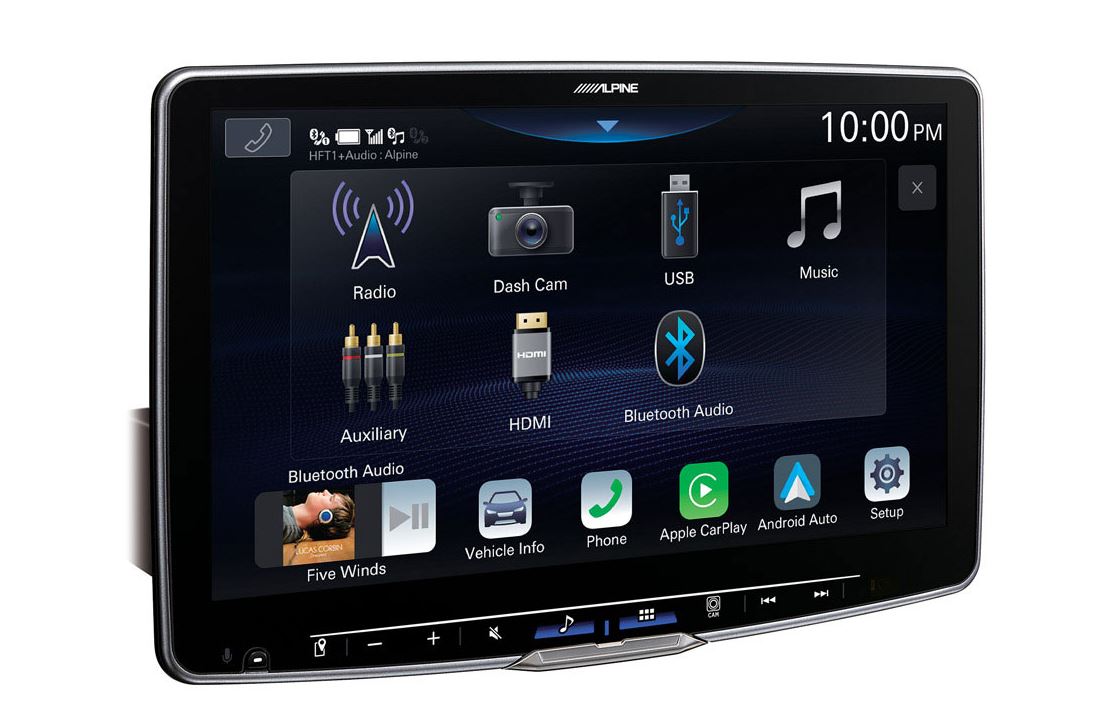

XXL 11-inch HD display

The Alpine Halo11 is the star of our Alpine Halo display platform. The large 28 cm (11-inch) HD touchscreen has a resolution of 1280 x 720p (WXGA) and has 49% more screen area than the coveted and award-winning Alpine Halo9 - so icons, menus and visual content are now even clearer and more vivid in your dashboard. The continuously tiltable screen is firmly connected to the 1-DIN housing and can be inserted into almost all 1-DIN or 2-DIN openings.

Apple CarPlay Wireless

For even more convenience, the iLX-F115TTRA offers wireless connection to the iPhone via Apple CarPlay Wireless. This means that iPhone users can leave the phone in their pocket in the vehicle and conveniently make calls, read and answer text messages, use music apps and even navigate. Apple CarPlay can be accessed via the capacitive touchscreen or the voice selection button to activate Siri voice control.

2x USB ports

With two USB ports, the Alpine Halo11 offers you the media variety you need on your travels. With the USB ports on the back of the device you can, for example, connect a mobile device for charging, while you can use the second USB port to connect a USB stick or hard drive to access audio and video files.

Adjustable display

With two USB ports, the Alpine Halo11 offers you the media variety you need on your travels. With the USB ports on the back of the device you can, for example, connect a mobile device for charging, while you can use the second USB port to connect a USB stick or hard drive to access audio and video files.

The world's first head unit with an integrated Class D amplifier

The iLX-F115D is the world's first head unit for the aftermarket to have an integrated Class D amplifier with 4x 50 watts of power. This amplifier has excellent high-end sound reproduction with extremely reduced noise and barely measurable phase shifts. The main advantage of Class D amplifier technology is its high efficiency of around 90%, compared to 50–70% for Class AB amplifiers. A new cooling concept with internal heat sinks ensures that your Alpine Halo11 always has the right working temperature - and plays your favorite music.

Enjoy the excellent sound quality

With a parametric 56-band equalizer, the digital crossover, a digital 6-channel time correction and several Bass Engine SQ presets and MediaXpander sound tuning options, you have excellent options at your disposal to perfectly tune your Alpine Halo11 or connected amplifier/speaker systems. But that's not all: The Alpine Halo11 car radio is Hi-Res Audio certified and can decode and play Hi-Res Audio files up to 96 kHz / 1,536 kbps from uncompressed USB sources in formats such as FLAC, WAV and APE.

Varied entertainment options

The completely newly developed 1.5-way DAB+/FM/AM tuner enables switching between DAB and FM and lets you enjoy seamless radio reception without interruptions. In addition to the extended USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo11 offers many additional entertainment options. The integrated Bluetooth module allows you to use audio streaming from your phone and an HDMI input allows you to connect an external video playback device.

Vehicle Data Bus Connection

Vehicle Data Bus Connection If your vehicle is equipped with parking sensors and , you can still use these handy features with your iLX-F115D. Alpine offers many Vehicle Data Bus connections to connect your Alpine Halo11 to your vehicle's data bus system. This enables compatibility with your vehicle's steering wheel controls, display of air conditioning settings as well as display of the parking sensors.

Parking Assist Technology

The optional rear view camera systems offer even greater safety with the latest camera technology. The rear view camera is automatically activated when reversing and interrupts the audio signal so that you can still hear the parking sensors. Not only do you have a clear view to the rear, but you also have special guide lines. You can even activate a trailer hitch guide line to make coupling your trailer much easier. A camera direct button is provided for quick camera access while driving.

External volume control with camera activation

The separately available RUE-BK01 volume control connects wirelessly to the Alpine Halo11 via Bluetooth and can be attached to the left or right of the touchscreen. Alternatively, you can attach the rotary knob anywhere else in the vehicle. Turning the knob adjusts the volume of the main unit. Pressing the knob activates the rear view camera on the screen while driving. Note: This volume button is not active when Apple CarPlay Wireless function is activated.

Features

• Radio / DAB tuner station memory (FM: 3x 12 / DAB: 3x 12 / AM: 2x 12)
• Station memory: Automatic station memory
• Search function: Local, DX, PreSet, Service
• RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB support
• DAB+ Slideshow Service
• DLS (Dynamic Label Service) and DAB Service Following
• Seamless-Linking Seamles (automatic DAB+/FM switching without interruption (if signal available)
• Automatic Ensemble/Service Storage
• Service search and PTY search function
• Alphabetical station search function

BLUETOOTH®

• Integrated BLUETOOTH® module V4.2
• Hands-free function: HFP (Hands Free Profile) compatible
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music streaming control: AVRCP (Audio/Video Remote Control Profile) Version 1.5 compatible
• Phone book: Automatic phone book transfer
• Direct dial keys: 4 memory locations per phone Call list: dialed number / answered calls / missed calls
• Redial function
• Voice volume setting: Adjustable for incoming and outgoing calls
• Menu language selection: 24 menu languages
• Microphones included

Works with iPhone®

• Compatible for iPhone with Lightning connector
• Various search functions and album artwork display
• Battery charging function

Connectivity

• Works with Apple CarPlay Wireless (from iPhone 6S) and Apple CarPlay (CarPlay-capable smartphone required)
• Works with Android Auto (Android Auto-capable smartphone required)
• Dash Cam link for DVR-C320S for display and control of the dash cam

Online navigation functions

• Online navigation in conjunction with Apple CarPlay and Android Auto
• Includes GPS/Glonass antenna
• Direct access to navigation from CarPlay or Google Maps

USB port

• 2x USB connection cable (2m) included
• USB port 1: media playback / USB port 2: battery charging function
• Music playback formats: FLAC, MP3, WMA, AAC, APE
• Video playback: MP4, MOV, FLV, MKV
• Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
• Various search functions included

Sound Tuning

• Bass Engine SQ and Bass Engine PRO sound tuning
• Subwoofer level adjustable
• 4 V preamp output
• 10 equalizer presets
• 56-band parametric EQ, (4x 13-band front L/R, rear L/R + 4-band for subwoofer)
• 6-channel time delay correction
• Digital Crossover
• Independent source volume adjustment
• For detailed information about sound options, please refer to the PDF user manual below in the "SUPPORT" section.

General

• 4x 50 Watt Class-D high-power amplifiers
• 28 cm (11-inch) capacitive WXGA touchscreen (1280 x 720p)
• Screen adjustable in tilt, height and depth
• 3 preamplifier outputs (4 V, front / rear / subwoofer)
• 1 A/V AUX input (3.5 mm jack connection optional C1902-Nav)
• 1 HDMI input / 1 HDMI output
• 2 USB ports (1x USB media playback / 1x USB charging function)
• Suitable for steering wheel remote control
• Vehicle Display Interface Ready (UART connection)
• Remote control optionally available (RUE-4360)
• 2x camera direct connection Note: does not support the camera switch box KCX-C250MC
• Rear view camera guide lines (adjustable)
• Trailer guide lines for rear view camera
• Live contrast adjustment
• Menu language: 24 languages
• Automatic dimmer
• Anti-theft device with numeric code
• Start-Stop Ready

Installation

• Various vehicle-specific installation kits available

Specifications

Screen

• Screen size: 28 cm (11-inch) capacitive WXGA display
• Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
• Illumination system: White LED backlight
• Effective number of picture elements: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power 4x 50 W

Radio / DAB tuner

• FM frequency range: 87.5 - 108.0 MHz
• AM frequency range: 531 - 1.602 kHz
• DAB Band III: 174 - 240 MHz
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S/N): 65 dB
• DAB Audio Format: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC

WiFi

• Reception frequency: IEEE 802.11 b/g/n (2.4 GHz)
• Channels: 1 – 13 ch (2.4 GHz)
• Security protocol: WPA3 / WPA2-PSK (TKIP, AES)

USB

• USB requirements: USB 2.0
• USB 1: Media playback / 2,400 mA (Mass Storage Class)
• USB 2: Battery charging / 1,500 mA (CDP Support)
• USB class: Playback from device / mass storage
• File system: FAT16 / FAT32 / exFAT
• Audio formats: FLAC, MP3, WMA, AAC, WAV, APE
• Video playback: MP4, MOV, FLV, MKV
• Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1 / MPEG-2
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 40 kHz ±1 dB *Depending on encoding software and bitrate
• Total Harmonic Distortion - T.H.D.(@ 1 kHz): 0.005%
• Dynamic range (@ 1 kHz): 95 dB
• Signal-to-noise ratio: 95 dB

GPS / Glonass

• GPS/Glonass compatible antenna included
• GPS frequency: 1575.42 +/- 1 .023 MHz
• Input sensitivity (search): -136 dB max

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2
• Output power: +4 dBm max. (performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)
• Supports LDAC Audio Codec

Sound Tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0 ° or 180°
• BASS ENGINE SQ: 5 modes, level 0 to +6
• For detailed information on setting the bands and frequencies, please refer to the PDF manual in the SUPPORT section below

HDMI

• Input format 720p / 480p / VGA

General

• Power supply: 14.4 V.DC (11-16 V permissible)
• Preamp output (without clipping): 4 V / 10 kOhm

Dimensions

• Weight: 2.6 kg
• Casing dimensions (W x H x D) mm: 178 x 50 x 150 mm
• Screen dimensions (W x H x D) mm: 269 x 178 x 55 mm
