5% discount
If you buy 1 of the products of this action, you will receive a discount of 5% .
€159.00 *
Prices incl. VAT plus shipping costs
Ready to ship,
Delivery time appr. 2-3 Workdays
- Order number: 02072KVA-TRANSIT
- EAN 4260052641293
Product information Ampire KVA-TRANSIT - rear view camera for Ford Transit 7th generation... more
Product information "Ampire KVA-TRANSIT - Rear view camera for Ford Transit 7th Gen. with roof H2 (year 2014-2019)"
Product information Ampire KVA-TRANSIT - rear view camera for Ford Transit 7th generation with roof H2 (model year 2014-2019)

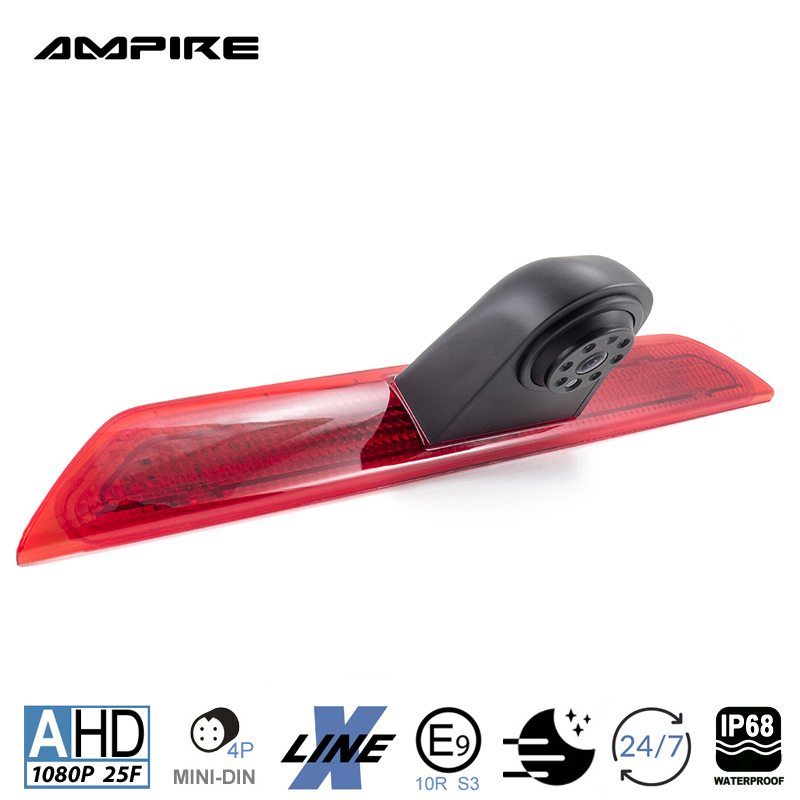

High-resolution AHD rear view camera KVA-TRANSIT is mounted instead of the factory brake light glass.
Infrared lighting is integrated into the camera housing, which ensures sufficient illumination even in the dark.
Compatibility

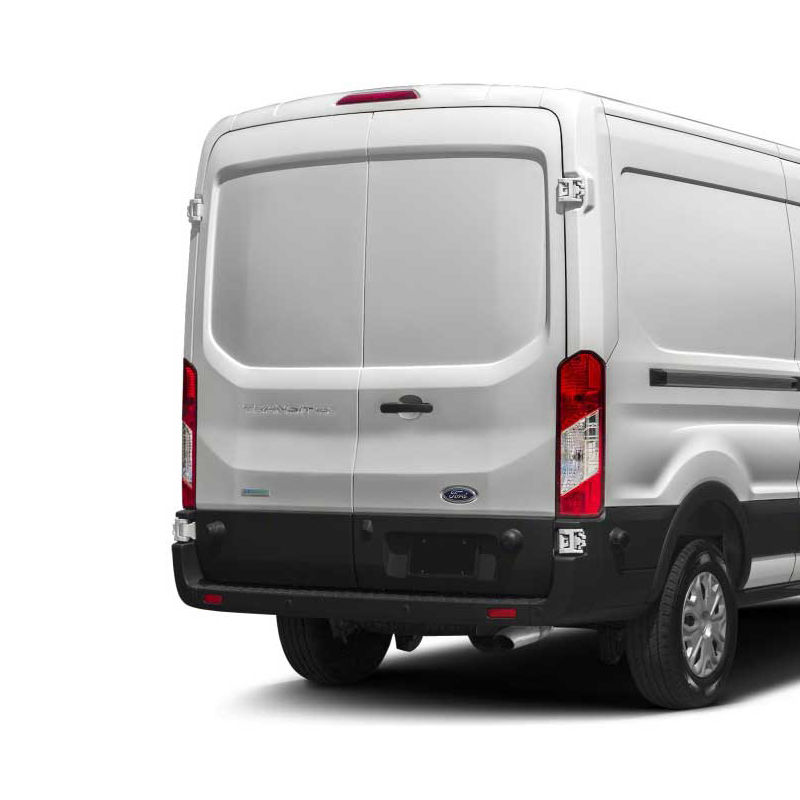

- FORD Transit 7th generation with roof H2 (model year 2014-2019)
Technical data
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Infrared illumination for night vision
- Signal-to-noise ratio >43dB
- Automatic White balance
- Image display mirrored horizontally
- Guide lines: switched on (can be switched off by disconnecting the cable loop)
- horizontal viewing angle 125°
- vertical viewing angle 70°
- diagonal viewing angle 165°

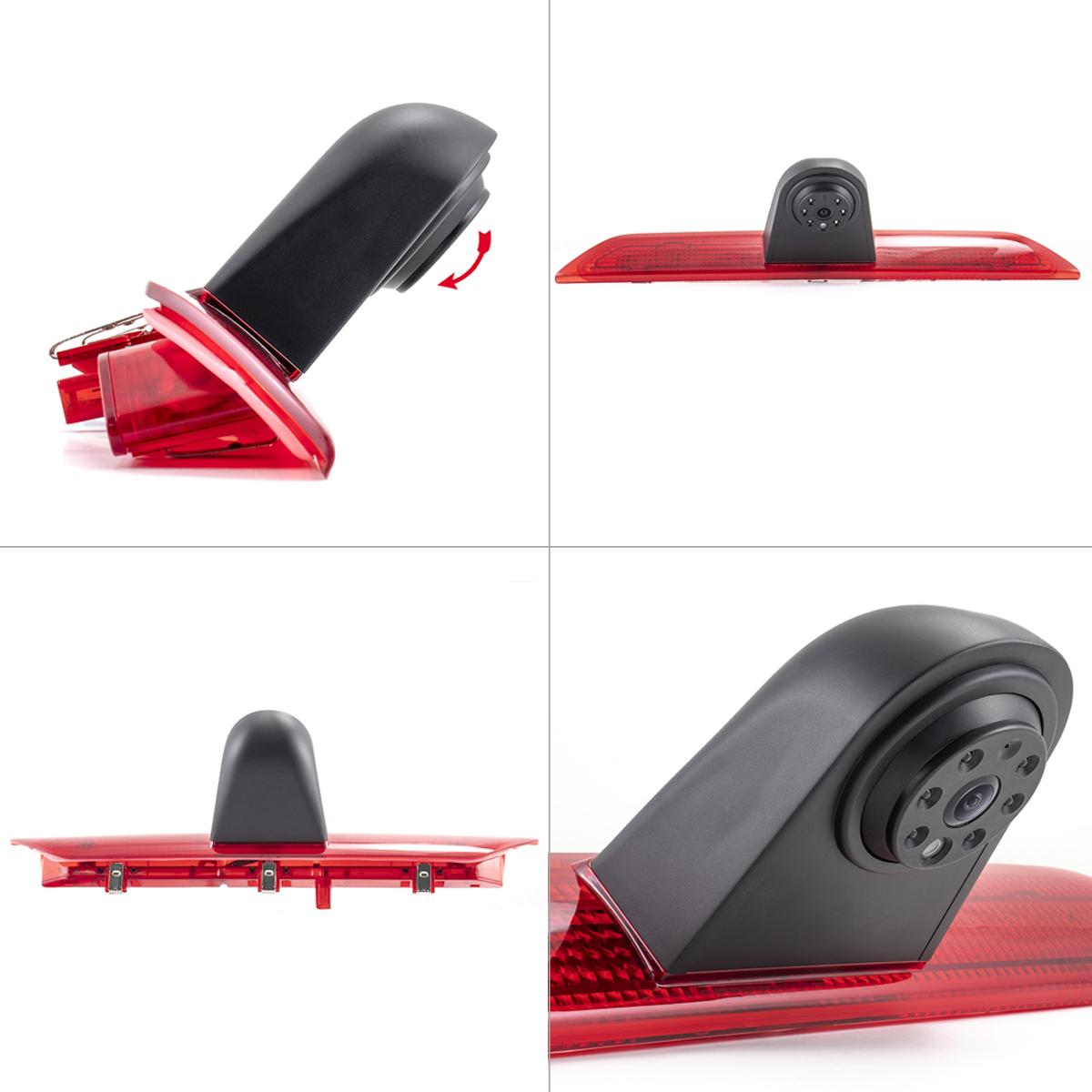

- camera head vertically adjustable up to 20°
- protection class IP68 waterproof
- operating voltage: 9-16 volts DC
- power consumption: max. 250mA
- Operating temperature: -20° to 70°C
- Color: black
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

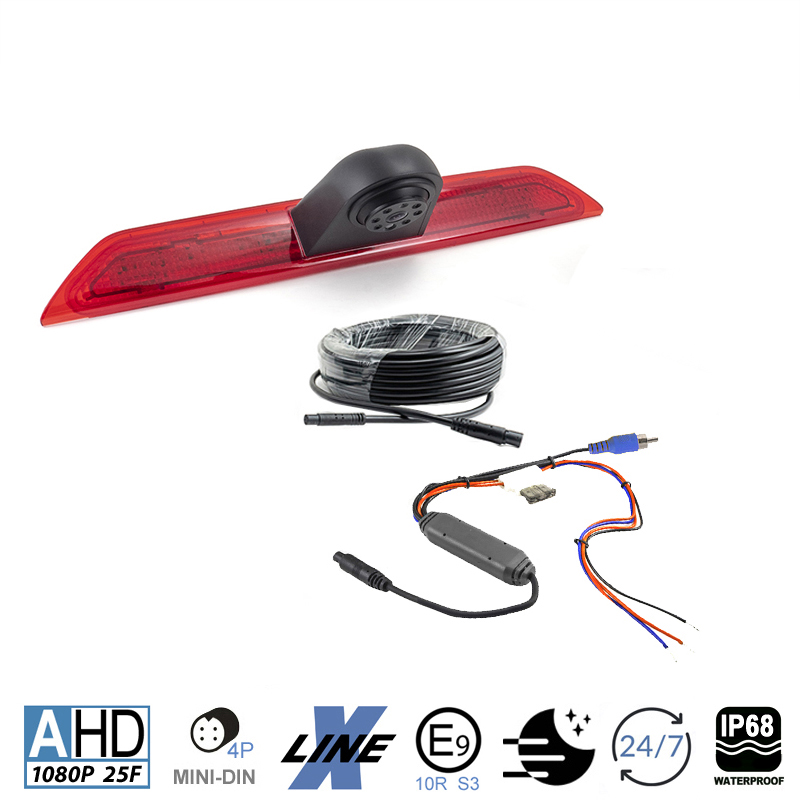

Scope of delivery
- Rear view camera
- AK1037 power supply with blue plugs
- AK1039 mini-DIN extension cable 10m with blue plugs
Important note
Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.
quantity: | 1 piece |
Blickwinkel, diagonal: | 165° |
Perspective, horizontal: | 125° |
Perspective, vertical: | 70° |
Type of Camera: | Rear view camera |
Product group: | Camera |
Ford: | Transit |
