Ampire KVX-TRANSIT - Rear view camera for FORD Transit 7th Gen. with roof H2 (year 2014-2019)

Product information Ampire KVX-TRANSIT - rear view camera for FORD Transit 7th generation with H2 roof (model year 2014-2019)

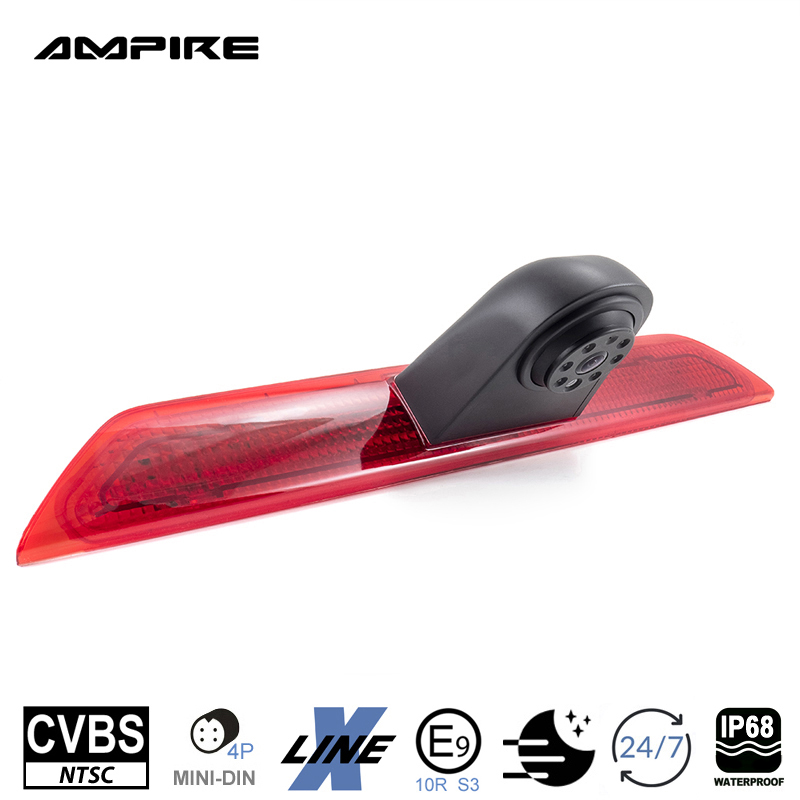

Vehicle-specific CVBS rear view camera for the FORD Transit Bus 7th generation (model year 2014-2019) with medium-high H2 roof.
The KVX-TRANSIT is simply replaced with the factory brake light glass. Infrared lighting is integrated into the camera housing, which ensures sufficient illumination even in the dark.
The fourth generation of this camera uses an improved camera chip with significantly higher resolution and better white balance.

Compatibility

•  FORD Transit 7th generation with roof H2 (model year 2014-2019)
• The camera is also suitable for 24/7 continuous use.

Technical data

•  Image display mirrored
•  Guide lines: switched on at the factory (can be switched off)
•  Image sensor: 1/4" CMOS PC7070
• Resolution: 648x488 pixels
•  Viewing angle 170° diagonally
•  Viewing angle 120° horizontally

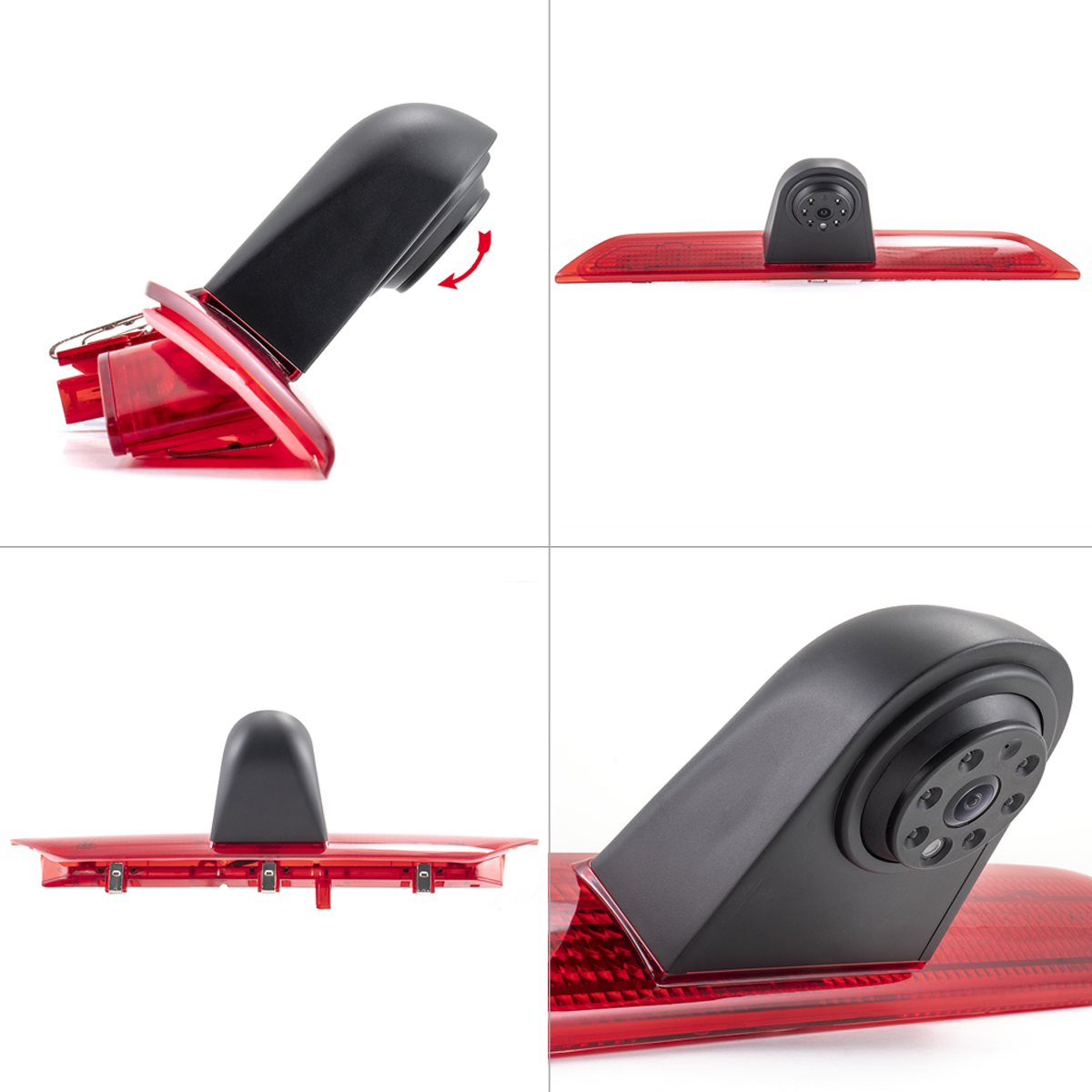

•  Vertical adjustability of the camera 20°
•  Image format: NTSC
•  580 lines resolution
•  IP68 waterproof
•  Minimum illumination: 0 lux
•  Integrated LED infrared lighting (6 LEDs)
•  Operating voltage: 9-16 Volt DC
•  Power consumption: max. 150mA
•  Operating temperature: -30° to 70°C
•  Color: black
•  Cable length: 10 meters with 8-pin MINI-DIN connectors
•  E approval E9*10R06/00*22328*00
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

Scope of delivery

•  Rear view camera
•  AK1035 power supply
• AK1034 mini-DIN extension cable 10m

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.
