Product information NavLinkz VSC-E-FO06 - handle bar camera for various FORD, cold white LED

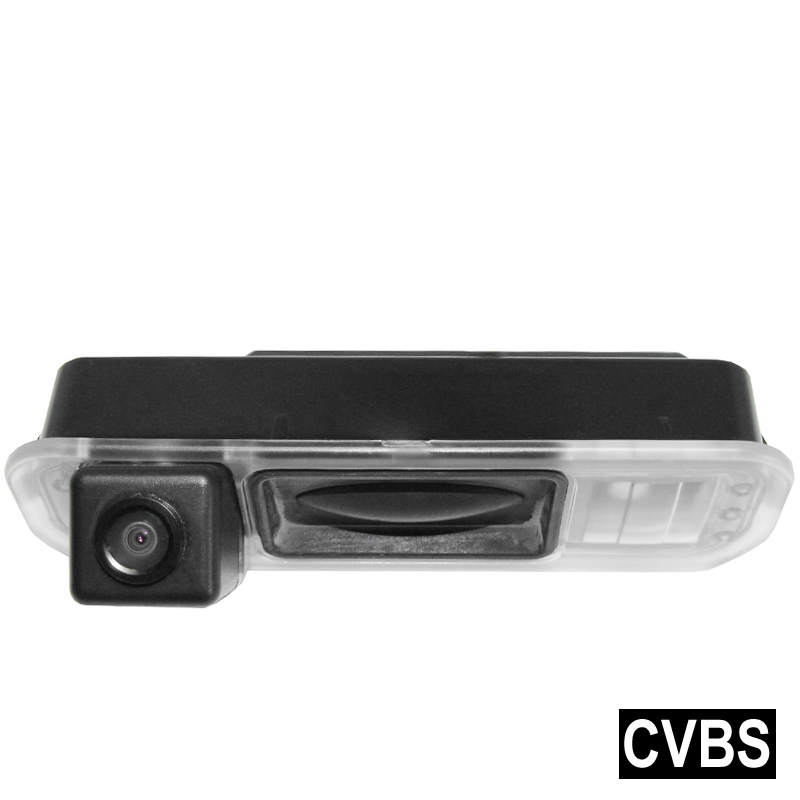

Vehicle-specific replacement rear door opener handle with integrated camera with switchable distance lines.
Suitable for various Ford models.
B-Max, Focus3, Tourneo Connect/Courier with tailgate and Transit Connect/Courier with tailgate.
Product features

• 1/3 inch CMOS NTSC sensor (PC3089)
• Resolution 720 x 480 pixels (700 TV lines)
• 0.1 lux minimum illumination
• F1.2 aperture
• Angle diagonal 170°, horizontal 130°, vertical 90°
• Mirrored image (fixed)
• Distance lines that can be switched off (switched on ex works)
• Protection class IP68

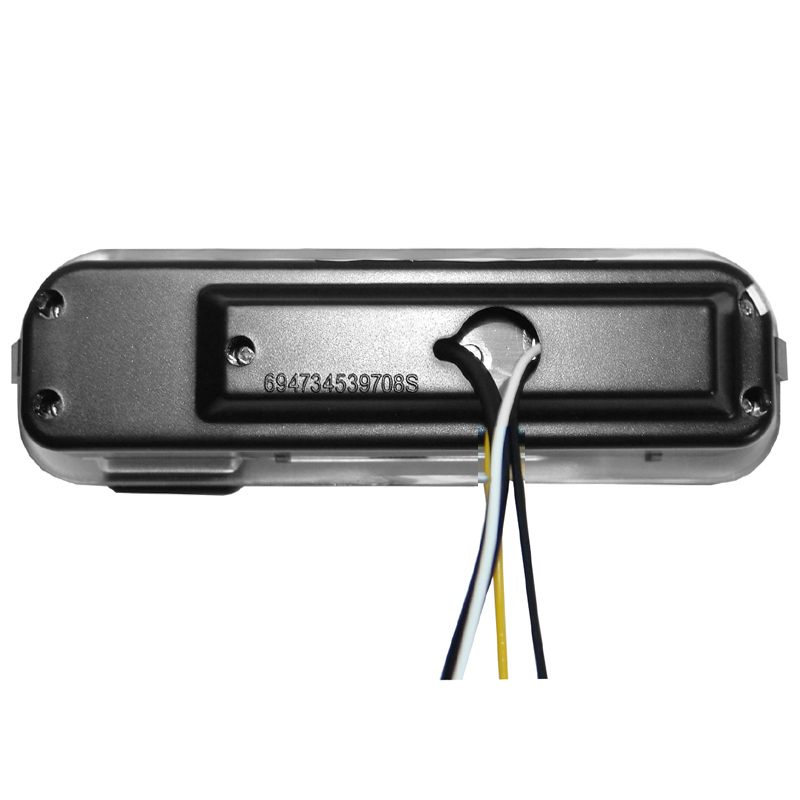

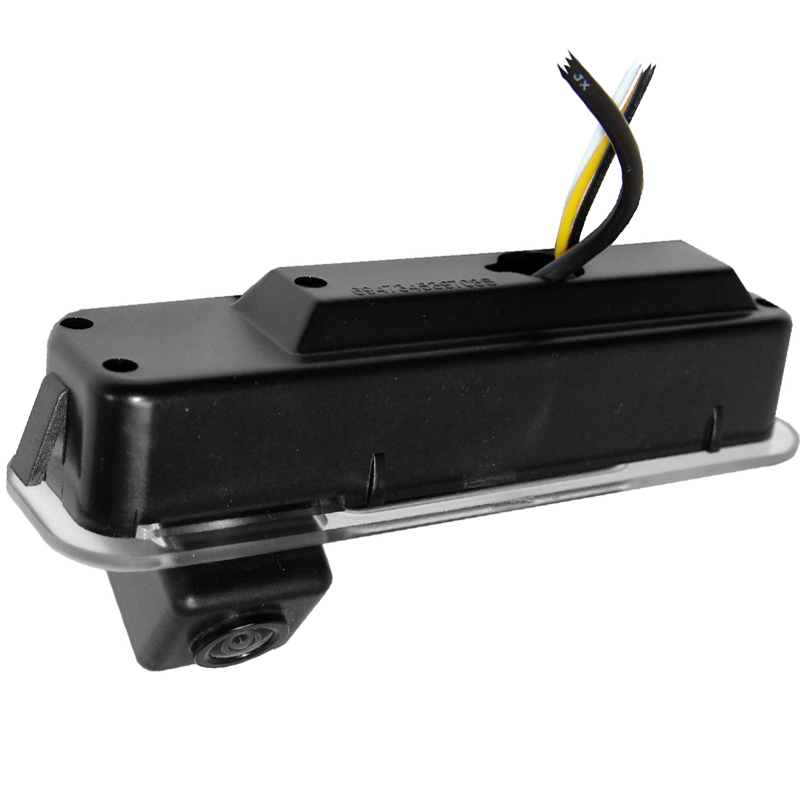

• Black rear door handle and camera

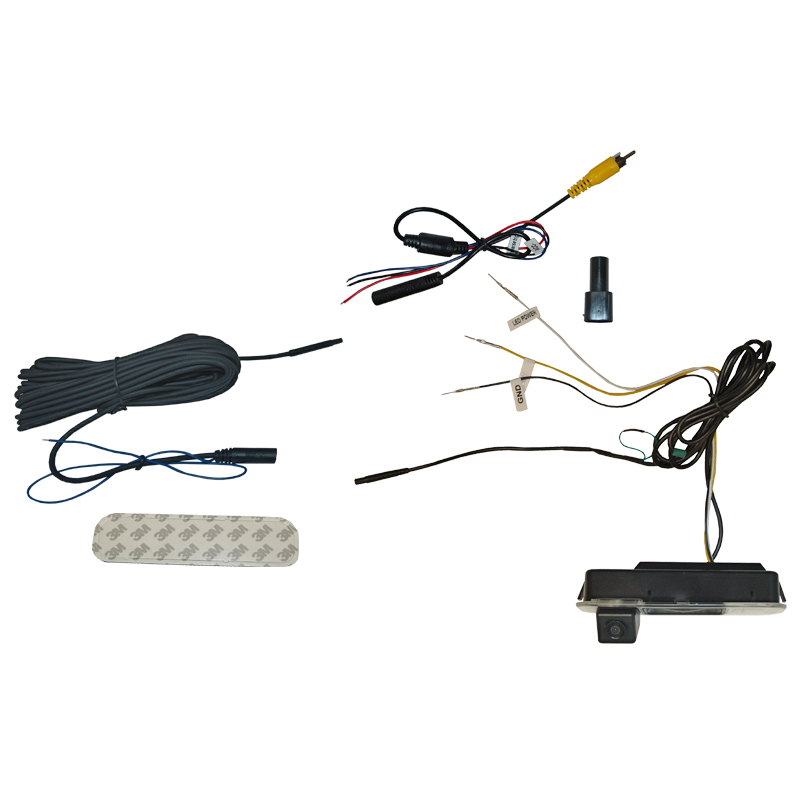

• 1.8m camera cable with 4-pin BM system cable socket (diameter 5mm)
• 8m system extension cable (4-pin BM) with wire for signal transmission
• System connection cable 4-pin BM with cinch plug and fuse

Compatibility

• FordB-Max from 08/2012,
• FordFocus3 station wagon from 01/2011 to 04/2018,
• FordFocus3 4-door sedan from 01/2011 to 07/2015,
• FordFocus3 5-door sedan from 01/2011 to 07/2015,
• FordTourneo Connect (only with tailgate) from 09/2013,
• FordTourneo Courier (only with tailgate) from 04/2014,
• FordTransit Connect (only with tailgate) from 09/2013,
• FordTransit Courier (only with tailgate) from 04/2014,
• and other vehicles with rear door handle OE part number: 1886014 or BM51-19B514-AF

NOT suitable for:
Focus3 4-door sedan from 07/2015 to 04/2018, Focus3 5-door sedan from 07/2015 to 04/2018, Focus4 all models from 04/2018, Tourneo Connect with wing doors, Tourneo Courier with wing doors, Transit Connect with wing doors, Transit Courier with wing doors, Tourneo Custom (all), Transit Custom (all), Transit (all)
Dimensions

• Total133 x 41 x 54mm (W x H x D)
• Installation opening124 x 32mm (W x H)

Technical data

• Operating voltage12V DC (6V~16V)
• Current consumption40mA
• Power consumption0.5W
• Operating temperature-20°C to +70°C
• Storage temperature-40°C to +85°C
• Weight including cable approx.280g
