ACV 771000-6065 - Rear view camera for Ford Transit Connect, 2014-2017 | Cameras | Hifi & Navigation

€199.99 *

Ready to ship,
Delivery time appr. 2-3 Workdays

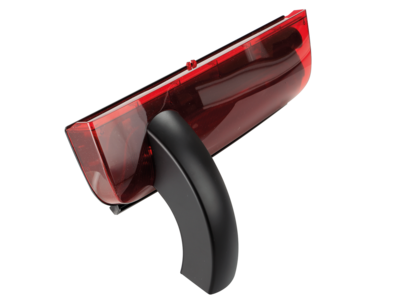

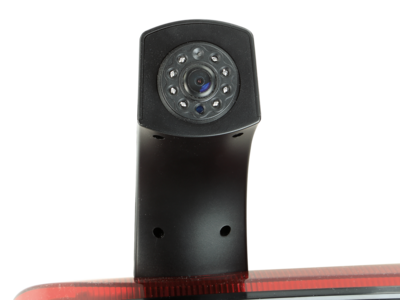

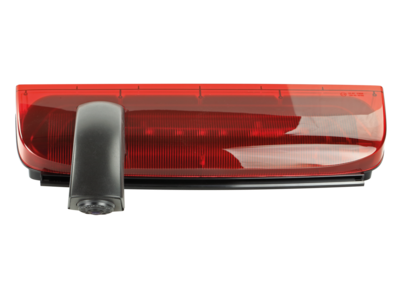

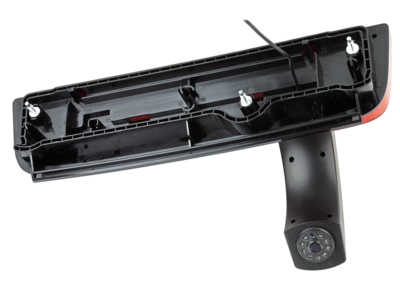

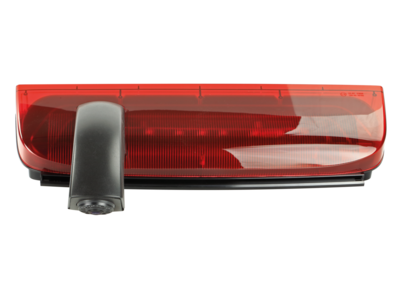

Rear view camera Ford Transit Connect 2014-2017 To replace the OEM 3rd brake... more

Product information "ACV 771000-6065 - Rear view camera for Ford Transit Connect, 2014-2017"

Rear view camera

Construction: plastic
Color: black / red
Extras: orientation lines via jumper and night vision function, viewing angle adjustable by 20°
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 572
Lens: 1.9mm / F 2.0
Min.Lux: 0 with active night vision function
Resolution: 600 TV lines
Viewing angle: 160° + 5°
Viewing angle: horizontal 115° vertical 75° + 5°
Dust and water resistant: IP67
Connection: 4 pin mini plug 5.2 mm
Supply voltage: 12 volts + 10%
Current consumption: 150mA with night vision function switched on
Operating temperature range: -30°C - 75°C
Storage temperature: -40°C - 80°C
Dimensions: see OEM brake light

1 meter cable with 4-pin mini plug including 1 jumper
6.5 meter extension including 3 meter power cable for connection to the reversing light
and Through-cabling to the connection cable on the end device
4-pin mini socket 10 mm and plug 5.2 mm
0.2 meter power connection cable including fuse and video connection cable (RCA)
