Alpine X902D-S906

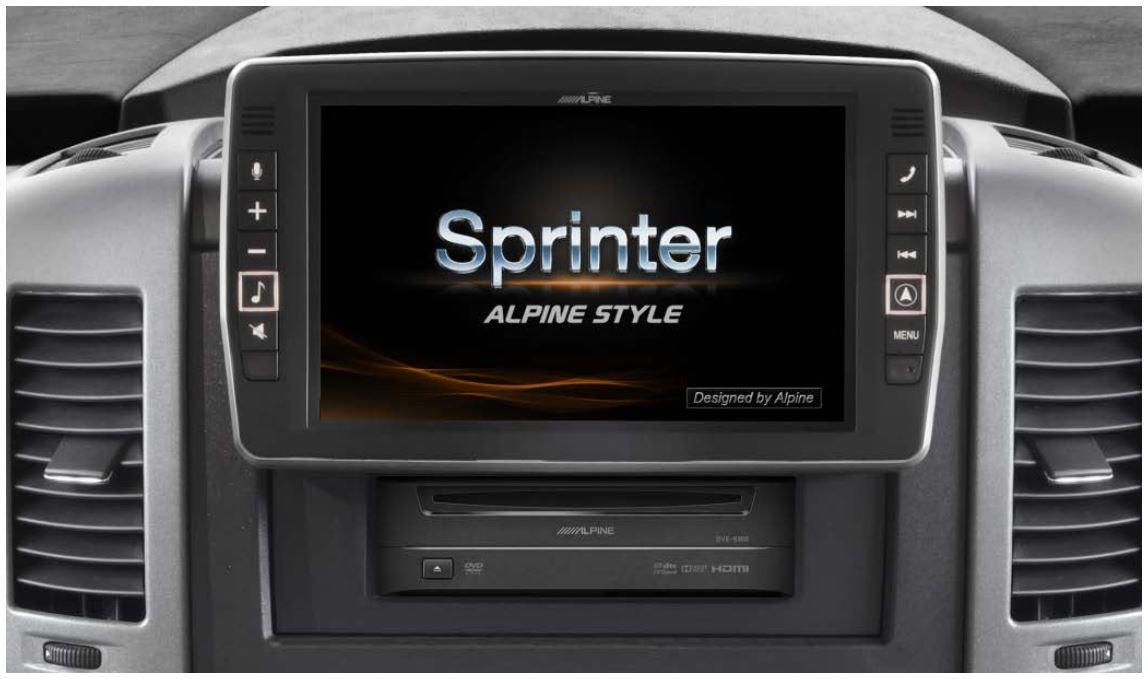

23 cm (9-inch) premium infotainment system for Mercedes Sprinter (W906) with motorhome navigation, Apple CarPlay and Android Auto support

• Alpine presents the Alpine Style System for the Mercedes Sprinter (W906) paired with the latest features. The X902D-S906 features a giant 23 cm (9-inch) touch screen that can be optimally operated from the driver and passenger seats. This will control the operation and view of all functions, such. As the navigation is very easy and clear.
• The system has the most advanced iGo nextgen motorhome navigation system ever. Furthermore, for 3 years, you will receive free map updates for your TomTom map data and can enter the dimensions and weight of your motorhome - it will only suggest suitable routes for your particular motorhome. Additional camper databases can be installed for your travels, so you have a perfect POI database at your side. The X902D-S906 also offers Apple CarPlay and Android Auto compatibility.
• Perfect vehicle integration with premium components.
• Performance without compromise!

DOMESTIC EQUIPMENTS

tuner

• Station memory: FM: 24 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB + tuner

• Integrated DAB + tuner
• DAB + / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB + to DAB + Service Following
• FM linking (automatic DAB + / FM switching (if signal available))
• Station memory: 18 program memory slots
• Automatic ensemble / service storage
• Alphabetic station search function
• Service search function
• PTY search function
• Phantom power for DAB antenna selectable (on / off)

BLUETOOTH

• Integrated BLUETOOTH module
• Wide Band Speech Technology
• Handsfree: HFP (Hands Free Profile) compatible
• Music Streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music Streaming Control: AVRCP (Audio / Video Remote Control Profile) Version 1.5 compatible
• Advanced BLUETOOTH  technology
• Connection: SSP (Secure Simple Pairing) support
• Individual profile connection: handsfree and music streaming
• Phonebook: Automatic phonebook transfer
• Registration of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name Display
• Automatic call acceptance
• Call list: dialed number / calls received / missed calls
• Redial function
• Voice volume setting: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display of GSM signal strength
• Display of the battery charge state
• Menu Language selection: 24 menu languages
• Firmware Updatbar
• Microphone integrated in the monitor housing

Made for iPod / iPhone

• Compatible with iPod / iPhone / iTouch: Made for iPod Touch 6th / 5th Gen, iPod nano 7th Gen, iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection: KCU-471i required (optional)
• Possible choices: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Alphabetical search
• Album cover ad
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• MIX (Shuffle) Play: Song, Album, All
• repeat
• charging

navigation functions

• Maps: 48 countries (Western and Eastern Europe)
• Menu languages: 29 languages
• Voice guidance in 29 languages, 15 languages ​​for text-to-speech (TTS)
• Advanced Address Search
• Zip code search
• Free Search
• Search with word fragments
• Extended POI functions
• Smart routes: use of historical traffic data
• Fast route calculation
• Extended route planning
• ECO routing
• 7 alternative routes to choose from
• Advanced TMC mode
• Map display: 2D top view, 2D north orientation, 3D
• 3D city maps: 3D building views
• Display of height profiles
• 3D motorway junctions: 3D display of motorway junctions
• lane Guidance
• Tunnel mode
• Motorway mode
• Navi Mix mode
• Text-to-Speech
• Direct dialing by phone from POI data
• Hybrid sensor: GPS, GLONASS, gyrosensor, car speed pulse

USB port

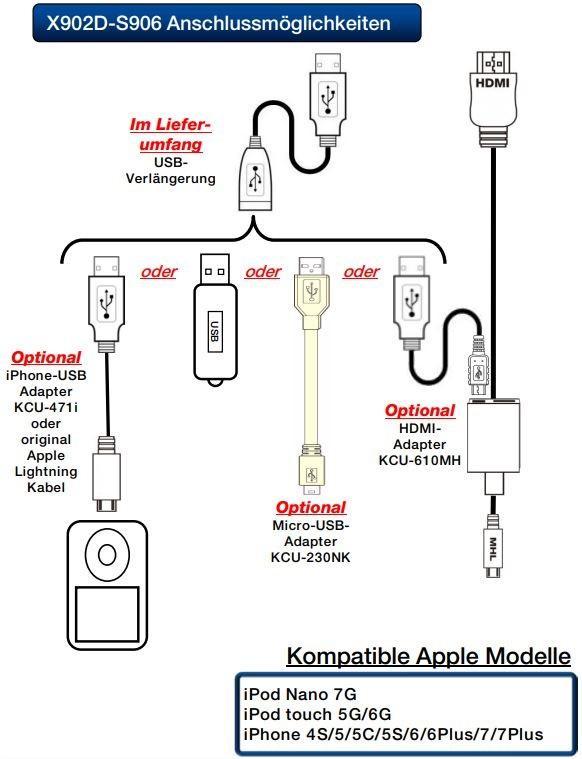

• USB port on the back (2m USB extension cable included)
• Music and video playback
• Formats: FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV playback
• File / Folder name search
• Day info search
• Folder Up / Down
• MIX random play
• repeat

Sound tuning

• BASS ENGINE  Pro
• BASS ENGINE  SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 2 V preamp output (connection cable KTX-PRE1 optional)
• Equalizer: Flat, Pop, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-Band Parametric Equalizer (Front / Rear Separated))
• 6-channel time correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" readout

General

• Output power: Max. Power 4x 50 W High Power Amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 23 cm (9-inch) capacitive WVGA high resolution display
• White LED backlight
• 50/50 split screen: left / right position changeable
• Touch screen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamp: 3 PreOuts (2 V, front / rear / subwoofer) (connection cable KTX-PRE1 optional)
• AUX-In: 1x A / V input (RCA connector)
• Preparation for infrared remote control
• Navigation Mix Announcement
• Direct camera connection & built-in multi-view camera control
• Camera connection with adjustable distance markers
• Rear view camera with immediate start function (immediate display of rear view camera at system start)
• Simple Mode & Info Mode Display
• Visual EQ
• Live contrast adjustment
• Menu language: 24 languages ​​(for AV & Bluetooth), 29 languages ​​(navigation menu and voice prompts)
• time of day
• Automatic dimmer
• Anti-theft device with numeric code
• Firmware updatebar
• Connection for motor antenna
• Remote turn-on
• HDMI input & output (special Alpine HDMI connection cable required)
• HDMI expansion box KCX-630HD Ready
• Start-Stop Ready
• CAN-BUS connection port for steering wheel remote control included, ISO connection cable
• Compatible with optional DVD player: DVE-5300

Adjustable vehicle parameters

• Dimensions (length, width, height)
• Current and maximum total weight
• Type of freight (dangerous goods etc.)
• Trailer usage and number of axles
• Maximum maximum speed

map updates

• Online map updates via alpine.naviextras.com
• TomTom map data
• 3 years free map update

installation

• Includes headband, wiring harness and SWRC interface for full installation.

SPECIFICATIONS

screen

• Screen size: 23 cm (9-inch) capacitive WVGA display
• LCD Type: Transparent Type TN LCD
• Workstation: TFT Active Matrix
• Number of pixels: 1,152,000 pixels (800 x 3 x 480)
• Lighting system: White LED backlight
• Effective number of pixels: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power: 4x 50 W

FM tuner

• Frequency range: 87.5 - 108.0 MHz
• Mono usage sensitivity: 8.1 dBf (0.7 μV / 75 ohms)
• 50 dB sensitivity: 12 dBf (1.1 μV / 75 ohms)
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S / N): 65 dB
• Stereo channel separation: 35 dB
• Simultaneous wave fluctuation: 2 dB

MW tuner

• Frequency range: 531 - 1.602 kHz
• Sensitivity (IEC standard): 25.1 μV / 28 dBf

LW Tuner

• Frequency range: 153 - 281 kHz
• Sensitivity (IEC standard): 31.6 μV / 30 dBf

USB

• USB requirements: USB 2.0
• Max. Current consumption: 1,500 mA (CDP support)
• USB class: playback from the device / mass storage
• File system: FAT 16/32
• MP3 decoding: MPEG-1/2 AUDIO Layer-3
• WMA decoding: Windows Media  audio
• AAC decoding: ACC-LC format '' .m4a '' file
• Flac-decoding: Free Lossless Audio Codec flac / fla
• H.264 decoding: AVI / MP4 / MKV file with H.264 video codec and MP3 / AAC audio codec
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 20 kHz ± 1 dB * J e according Encodingsoftware and bit rate
• Total Harmonic Distortion - THD (at 1 kHz): 0.008%
• Dynamic range (at 1 kHz): 95 dB
• Signal-to-noise ratio: 100 dB
• Channel separation (at 1 kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -130 dB max.
• Receiving method: Parallel 12 channels

BLUETOOTH

• BLUETOOTH version: Bluetooth V3.0 + EDR
• Output power: +4 dBm max. (Performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP: (Advanced Audio Distribution Profile)
• AVRCP: (Audio / Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0 ° or 180 °
• BASS ENGINE SQ: 5 modes, level 0 to +6
• High pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB / Oct.
• High pass filter (gain): -12 to 0 dB
• Low Pass Filter (Frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB / Oct.
• Low pass filter (gain): -12 to 0 dB
• Runtime correction: 0.0 to 336.6 cm (3.4 cm increments) or 0.0 - 9.9 ms (0.1 ms increments)
• Dual HD EQ - 9 Band Parametric Equalizer for Front + Rear
• Parametric equalizer (Band 1): 20 - 100 Hz
• Parametric equalizer (Band 2): 63 - 315 Hz
• Parametric equalizer (Band 3): 125 - 500 Hz
• Parametric equalizer (Band 4): 250 - 1k Hz
• Parametric equalizer (Band 5): 500 - 2k Hz
• Parametric equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric equalizer (gain): ± 14
• Parametric equalizer (bandwidth): 1, 2, 3
• Source volume: ± 14

HDMI

• Input format 720p / 480p / 480i / VGA
• Output format 480p

General

• Power supply: 14.4 V.DC (11-16 V permitted)
• Pre-amp output (without clipping): 2 V / 10 kOhm
• Maximum installation angle: 30 ° to the horizontal

Dimensions

• X902D-S906: Suitable for Mercedes Sprinter W906
• Case dimensions (W x H x D) mm: 178 x 50 x 164 mm

The RVs, Caravan , Camper and Truck Software observe the following restrictions and restrictions when calculating the route and give corresponding warnings while driving for 40 countries *:

• General traffic restrictions for trucks (eg environmental zones)
• Traffic restrictions for all categories of dangerous goods
• (ie explosives, flammable substances )
• Indication of dead ends without turning possibility for trucks
• Restrictions for trailers
• Limitations on the vehicle length
• Limitations on the vehicle width
• Restrictions on vehicle height
• Restrictions on the total weight
• Restrictions on tunnels, bridges, mountain passes and culverts
• Max. Permissible weight for bridges

* Andorra, Belgium, Bulgaria, Denmark, Germany, Estonia, Finland, France, Gibraltar, Greece, Great Britain, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Croatia, Lithuania, Liechtenstein, Latvia, Luxembourg, Monaco, Netherlands, Norway, Austria , Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Czech Republic, Turkey, Hungary, Ukraine

Compatible vehicles

• Manufacturer: Mercedes
• Model: Sprinters (W906)
• Construction year: 2013 →

If the vehicle is not equipped with a navigation system, the arrow display in the instrument cluster must be activated by a Mercedes partner.

Due to constant product improvements, specifications and design are subject to change without notice.
