Radical Audio R-C10MB2 - 2DIN Infotainer for Mercedes E-Class

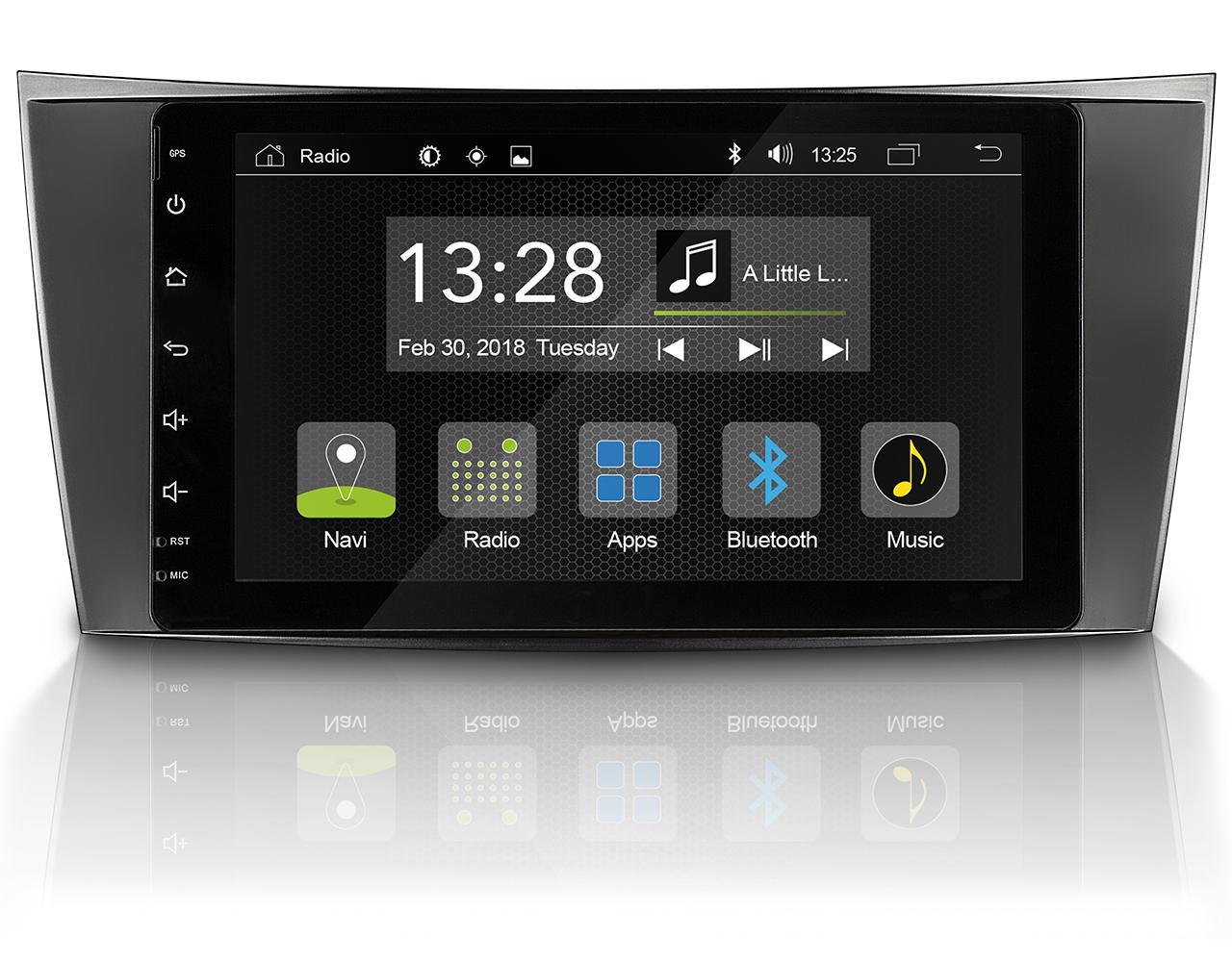

Innovative, vehicle-specific Android OS infotainer with capacitive 20.4 cm / 8 "touchscreen display. The R-C10MB2 is designed for the Mercedes-Benz E-Class (W211) and has 2GB of RAM and 32GB of flash memory. The RADICAL infotainer allows the installation of Android apps (Open System) and has a very powerful CPU, equipped with the typical functional features of this device category: eg FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets), Bluetooth Hands-free module with A2DP music streaming, EasyConnect integration for Android and iOS smartphones. The DAB + tuner function can be retrofitted via an external module. Networked with the vehicle electronics via the CAN bus, brand and model-dependent comfort functions such as multifunction steering wheel connection are supported. The operation is completely intuitive.

• Vehicle-specific infotainer for Mercedes-Benz E-Class (W211)
• Allwinner T8 CPU with 2GB RAM and 32GB flash memory
• Navigation function: upgradeable with R-MAPC10 navigation bundle * 1
• Open Android 7.1 operating system. Offline installation of Android apps * 2
• Capacitive 20.4cm / 8in 16: 9 TFT touchscreen screen with 1024 x 600p resolution
• OSD menu in various EU languages (German, English, Italian, French, Spanish etc.)
• DAB + tuner preparation - separately available DAB module R-C10-DAB
• FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each)
• Bluetooth handsfree module with A2DP music streaming
• Connection and control of a reversing camera
• Connection to the multifunction steering wheel via CAN
• EasyConnect integration for Android and iOS smartphones
• Preparation for connecting a DVR camera * 4
• RGB multicolor key illumination
• Integrated 4 x 45 Watt power amplifier
• Integrated Wifi module (WLAN IEEE 802.11 b / g / n)

* 1 The navigation bundle R-MAPC10 is not part of the scope of delivery
* 2 Google Playstore direct access is not supported for licensing reasons
* 3 The OBD2 dongle R-C10-OBD2 is not part of the scope of delivery
* 4 interface for universal USB port based DVR cameras

BLUETOOTH

• iVT BC8 Bluetooth handsfree module
• Synchronization of 1000 telephone book contacts with 3 telephone numbers each
• Search function for phonebook contacts
• A2DP BT-Music Streaming with display of iD3-Tag and AVRCP 1.3

MULTIMEDIA + AUDIO

• DVD drive - compatible media / formats: CD, CD-R / RW, MP3, WMA, DVD, DVD ± R, DVD-MP3, AVI, Xvid
• 2x USB 2.0 port for playing A / V files and connecting Android smartphones
• A2DP BT music streaming with AVRCP 1.3
• 12-band graphic equalizer with 8 sound presets

CONNECTIONS

• 4.2 RCA preamp outputs (3V)
• 1x RCA A / V input for audio and video signal (CVBS)
• 1x RCA input for reversing camera with automatic switching (CVBS)
• 2x USB 2.0 port with 1A charging current

VEHICLE COMPATIBILITY

Mercedes-Benz E-Class sedan W211 2003> 2009
Mercedes-Benz E-Class Estate T-Model W211 2004> 2009
Mercedes-Benz E-Class CLS C219 2005> 2006

Compatibility exclusion:

• Suitable for retrofitting the basic MB Radio model "Audio 20 CD" and the factory navigation "NTG2.5". These two OE systems can be mounted and operated without additional accessories.
• Depending on the existing factory equipment, eg a Harman Kardon sound system or an existing in the vehicle audio gateway ("AGW") additional components are needed to operate the R-C10MB2. Please note the article R-MB-MOST or the separately linked PDF "MOST Interface for R-C10MB2".

SPECIFICATIONS

Main Device Type

• Car specific infotainer Yes
• Vehicle compatibility Mercedes-Benz E-Class (W211)
• Vehicle function integration via UART / CAN interface
• Installation type 2 DIN housing body

Mainboard Core Hardware + OS

• CPU Processor Allwinner T8, 1.6GHz ARM Cortex A7 OctaCore
• RAM Samsung DDR3, 2GB
• Flash Memory Samsung, 32GB
• Operation System Android 7.1

GPS hardware

• GPS receiver front end Ublox G7020-KT
• GPS Antenna Voltage 3.3V

Display Screen + TFT LCD Panel

• TFT Type 8 "/ 20.4 cm cm LCD, 1024 * 600p resolution, WVGA screen aspect ratio and LED illumination
• Capacitive Touch Screen Yes, multigesture capable for native navigation SW
• Display Brightness Adjustment Yes

DVD loader

• Pickup Sanyo HD860XC
• MPEG decoder IC Sunplus 8202TQ
• Compatible Disc + File Formats AVI / DVD / DVD + R / DVD-R / DVD + RW / DVD-RW / MP3 / CD / CD-RW / JPEG

Bluetooth

• iVT Bluetooth Module BC8
• Built-in Microphone in the control panel Yes
• Hands Free Function Support Bluetooth 3.0 profile
• A2DP BT Audio Streaming Yes, with AVRCP 1.3
• Built-in Microphone Yes
• Phonebook Import Function Yes
• Phonebook Contact Search Yes
• Connect Code 1234 - Name: RADICAL
• Bluetooth Contact Sharing Yes
• External Microphone Support Yes

FM tuner

• Hardware NXP Lithio TEF6686
• FM Frequency Range 87.5 MHz> 108.0 MHz
• Radio stations 36 FM station presets (2 bands of 18 stations each)
• Built-in RDS Radio Receiver Function Yes
• Radio Frequency Region Europe

DAB + tuner

• Hardware Separately available DAB + module> R-C10-DAB

Wifi modules

• Hardware Realtek BL-8188-EU1 modules
• Protocol IEEE 802.11 b / g / n
• Transmission Frequency 2.400 GHz> 2.484 GHz
• Modulation OFDM / DBPSK / DQPSK / CCK
• RF Power 15dBm

OBD-II interface

• Support for ELM327 Chipset Protocol Yes, via Bluetooth and Wifi

Audio + Multimedia

• Internal 4CH amplifier IC St Microelectronics TDA7388
• Max power output Internal 4CH amp with 4x45W
• Graphic Equalizer 12-band EQ and 8 selectable presets> Normal, Jazz, Pop, Classical, Rock, News, Urban, Techno
• Supported Digital Audio Formats MP3, WMA, AAC, WAV, AC3, OGG, FLAC, RM, Web audio etc.
• Supported Digital Video Formats (USB / SD) MPEG 1/2/4, H.263, H.264, AVI, MKV, WMV, RMVB, Android video formats, Web video
• Support Video Output Yes, for all Video Sources
• Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
• USB / SD Memory Addressing USB port / microSD card reader up to 64GB of memory. (Function with external HDD's is not guaranteed)
• Active OE amplifier support Yes, via CAN interface

Input & Output

• 4.2CH Line out Yes, via RCA> 3 V signal level
• USB 2.0 Ports Two USB inputs with 1000mA charging current each
• AUX audio / video input Yes, stereo audio via RCA, video CVBS signal (NTSC) 1V pp, 75 ohms via RCA
• Input for Rear View Camera Yes, PAL / NTSC auto-switching
• FM Antenna Iput Yes, ISO connector, 50 ohms
• Subwoofer Output Yes, via RCA> 3 V signal level
• GPS Antenna Input Yes

Miscellaneous

• Firmware / Software Update Yes, via USB port
• Boat Logo Radical logo, customizable via app
• Multicolor sensor / hardkey illumination RGB LED, free selection of key illumination color, 256 color shades
• Wallpaper User selectable / customizable
• Built-in System Clock Display Yes
• Menu Language 85 Android System languages, incl. English / Spanish / French / German / Portuguese / Italian / Russian / Turkish / Norwegian / etc.
• Smartphone Headunit Interface Easy Connect App, supporting screen mirroring for iOS smartphones. Dual protocol with App Control via TS for Android smartphones
• Auto Memory Function Yes
• Power Supply DC12V, negative ground
• Max Working Current ≤15A
