- Order number: 02072KV-VITO
- EAN 4260052638422

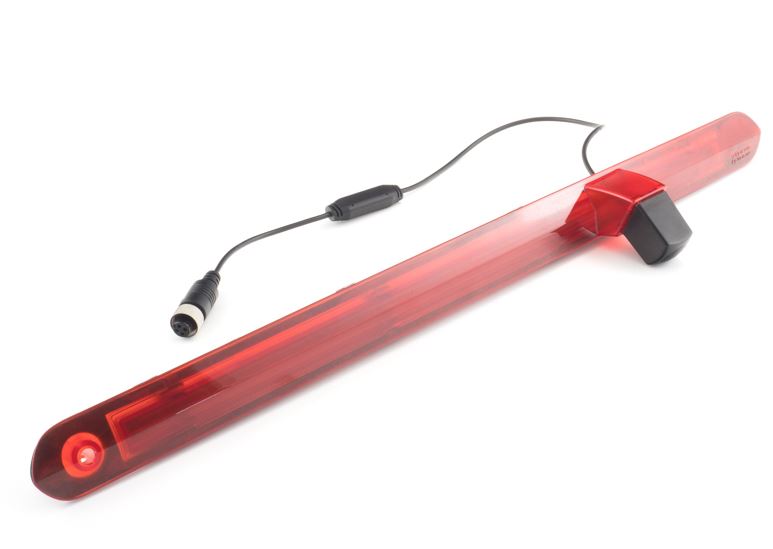

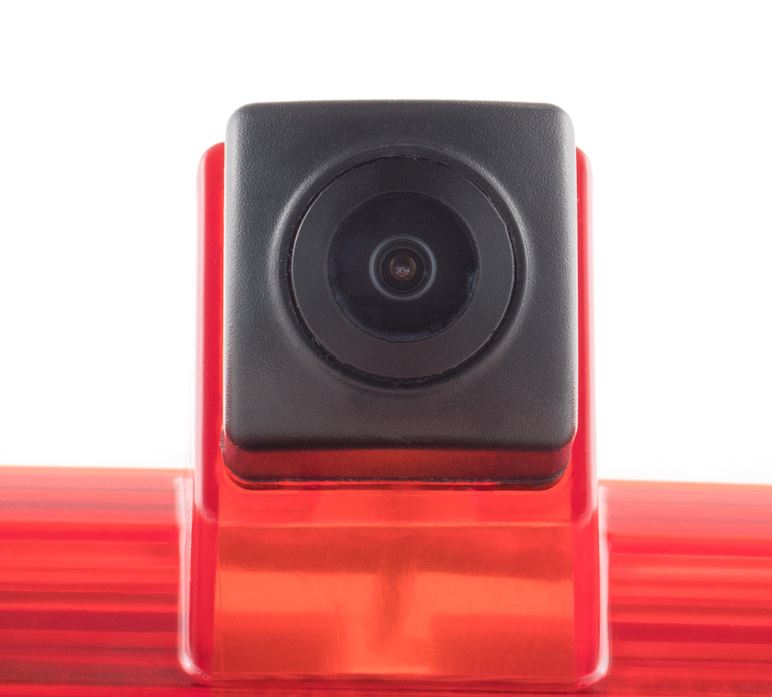

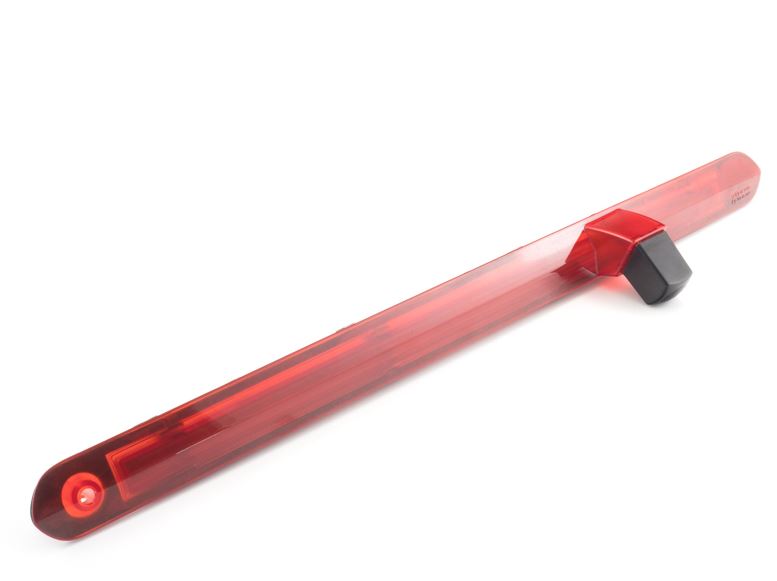

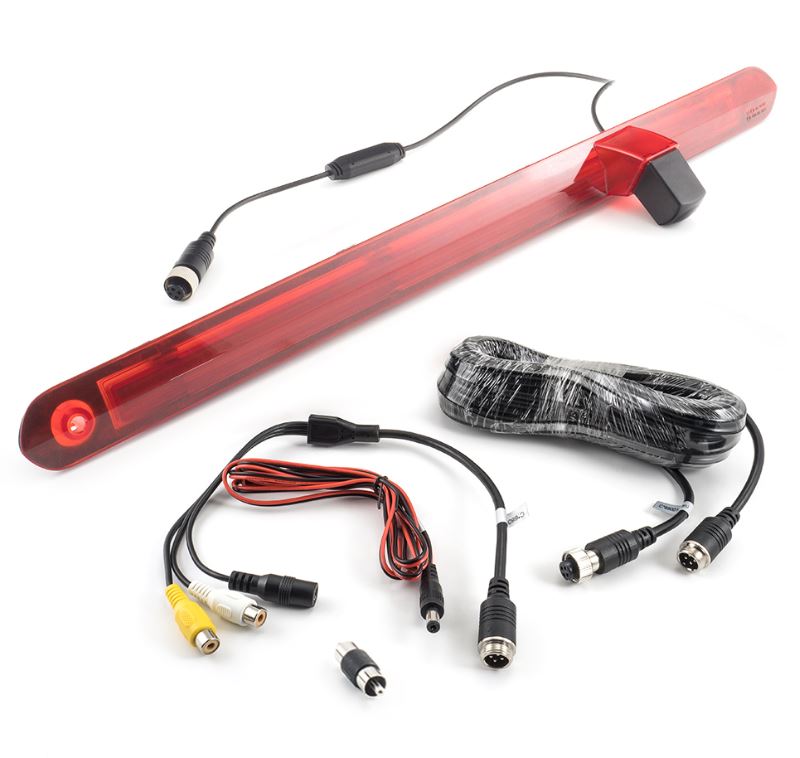

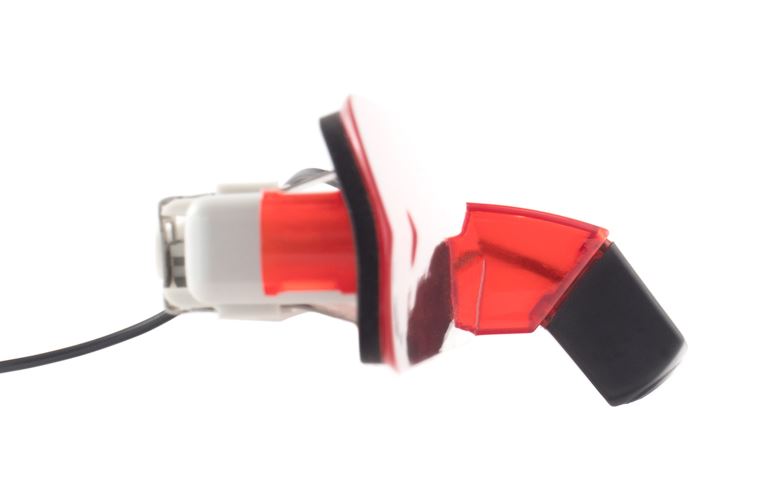

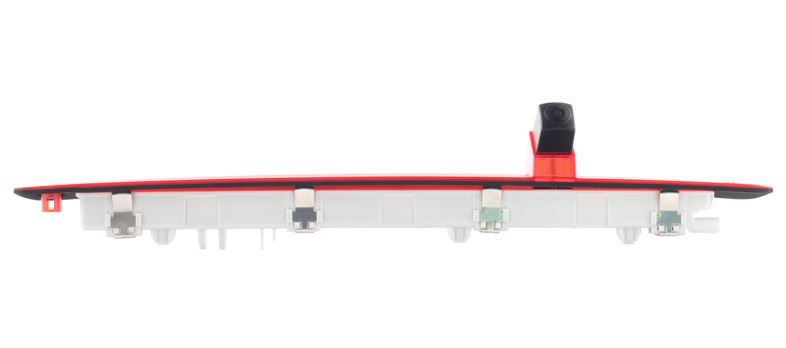

Vehicle-specific reversing camera for the Mercedes-Benz Vito 2016 (W447) with tailgate. The KV-VITO is simply exchanged for the factory brake light glass. Infrared lighting is integrated in the camera housing, which ensures sufficient illumination even in the dark. In the second generation of this camera, an improved camera chip with a significantly higher resolution was used.
Technical specifications
- Image reproduction mirrored
- Image sensor: CMD-III. "High performance digital super clarity image sensor
- Resolution 648x488 pixels
- Viewing angle 170 °
- vertical adjustability of the camera 20 °
- Image format: NTSC
- 580 lines resolution
- IP68 waterproof
- Integrated infrared lighting
- Operating voltage: 9-16 volts DC
- Power consumption: max. 150mA
- Operating temperature: -30 ° to 70 ° C
- Minimum lighting: 0 lux
- Color: Black
- Cable length: 10 meters
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
- FCC approval ANSI C63.4-2003
Installation note
The camera is not suitable for continuous operation or monitoring. It must not be operated with an ignition (K15), as this could damage the camera through overheating.
Important NOTE
Depending on the roof structure and the trailer coupling installed on the vehicle, you may not be able to see the trailer coupling on the monitor. This article does not fit vehicles with rear doors.
Legal notice
Not allowed within the scope of the StVZO and ECE. The commissioning of this article is not permitted in the area of the StVZO. Items shown and listed are for show purposes and for motorsport only!
An increase in vehicle dimensions, with the exception of cars and motorcycles, is subject to registration and must be assessed immediately by the technical test center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or converting the vehicle, ask an officially recognized expert for motor vehicle traffic or a test engineer from a monitoring organization whether the operating license will be affected or whether the change can be approved at all. The return of a used camera for credit is excluded.
| quantity: | 1 piece |
| Blickwinkel, diagonal: | 170° |
| Perspective, vertical: | 20° |
| Type of Camera: | Rear view camera |
| Product group: | Camera |
| Mercedes-Benz: | V-Klasse V447 |
