Alpine INE-F904S907 -  1-DIN Navigation

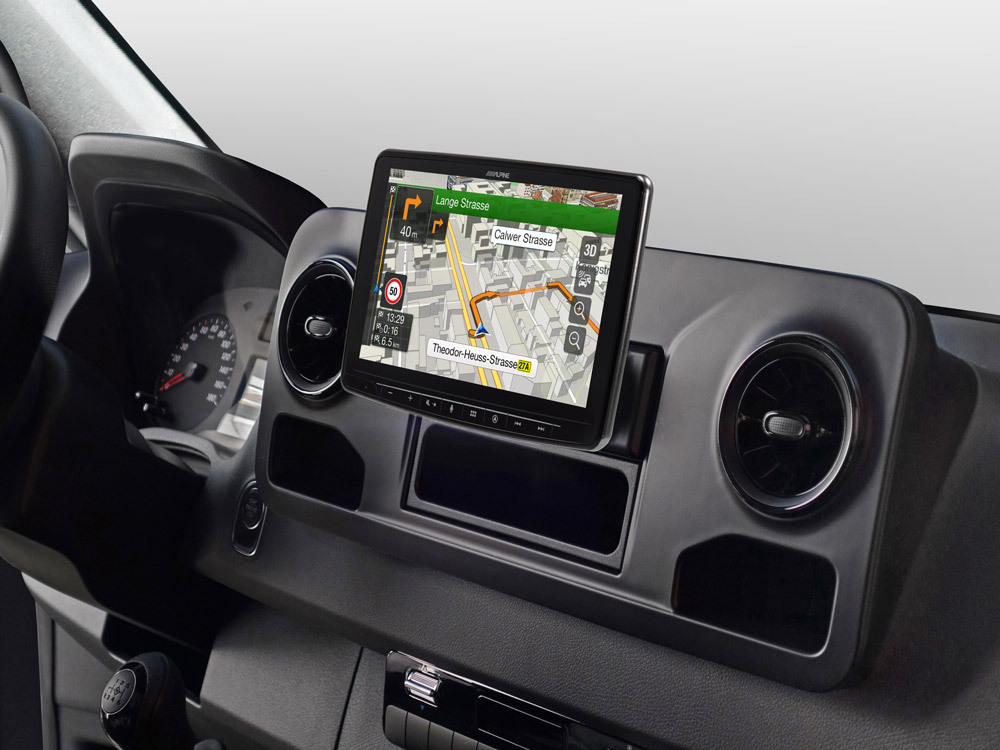

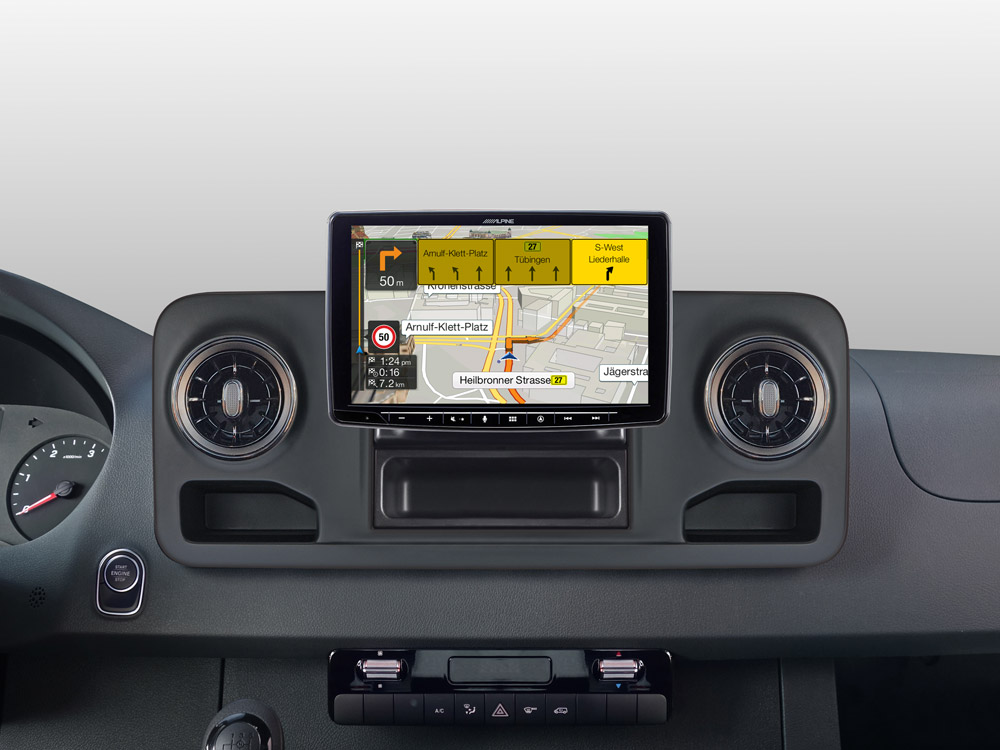

The Alpine Halo9 INE-F904S907 with high-resolution 9-inch touchscreen and European navigation especially for your Mercedes Sprinter W907 (VS 30) from 2018.

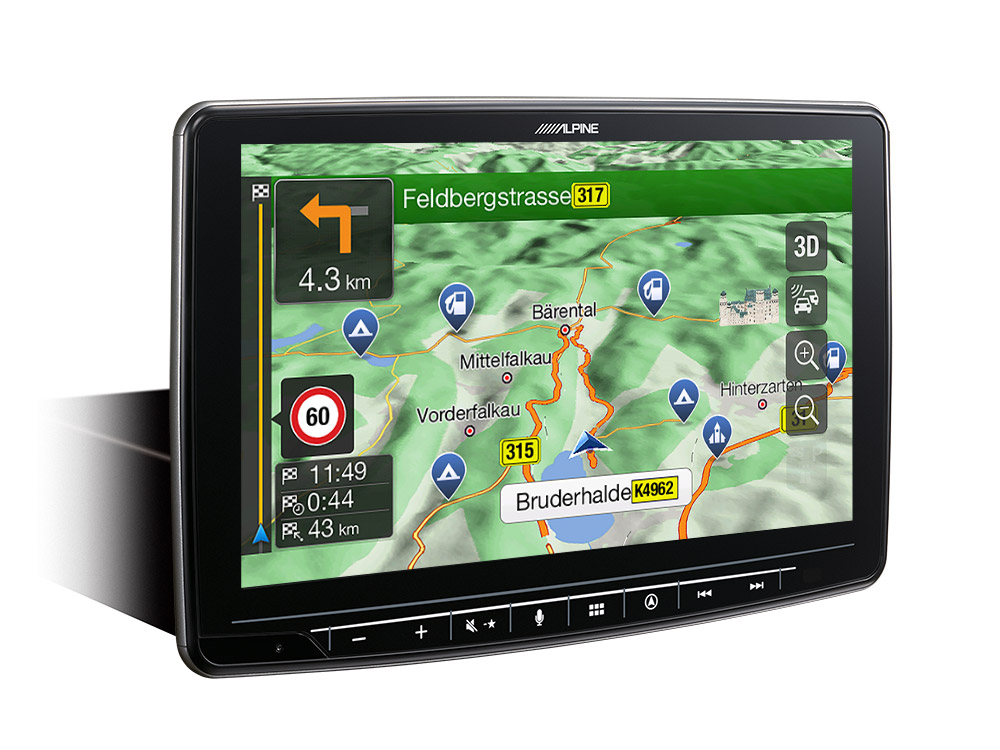

The "Alpine Halo9 Navi" offers the iGo Primo NextGen motorhome navigation with TomTom maps for 48 countries and 3 years of free map updates.
You can also use navigation apps (such as Google Maps, Waze, etc.) with Apple CarPlay and Android Auto.

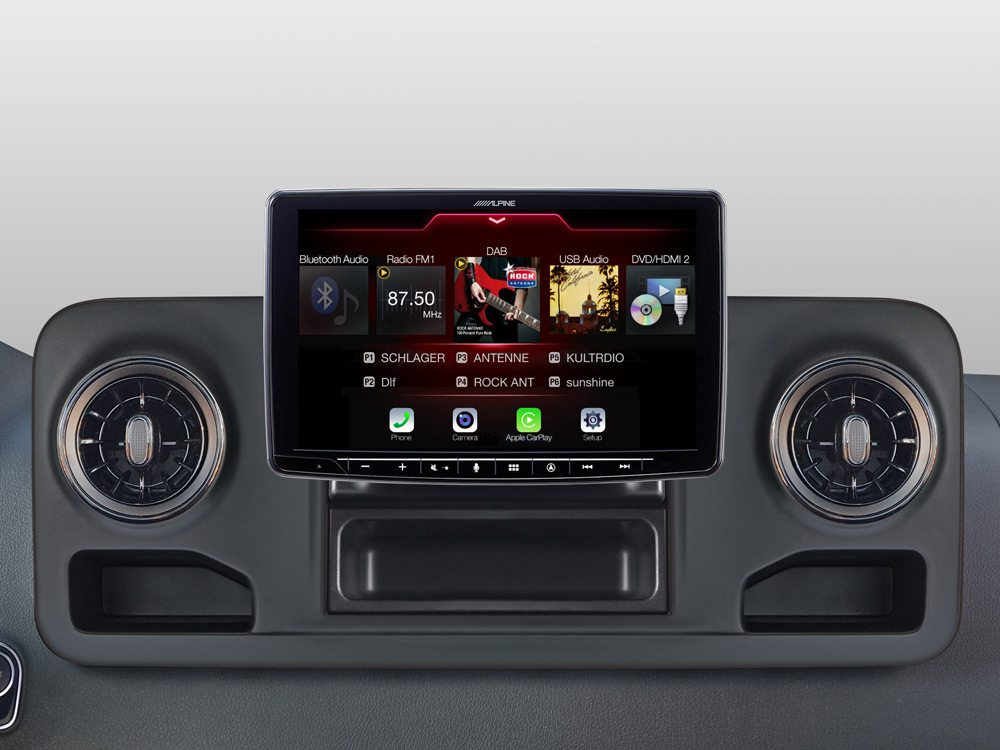

With this great system you also get DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming, high-end sound quality and helpful sound tuning options.
With the INE-F904S906 comes with a custom-fit cover frame, mounting brackets, a vehicle-specific wiring harness with CAN interface and an antenna adapter. The CAN interface supports existing buttons on the steering wheel remote control.

Equipment

Tuner

• Station memory: FM: 12 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection

RDS

• RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB+ tuner

• Integrated DAB+ tuner
• DAB+/DMB support
• DAB+ slideshow Service
• DLS (Dynamic Label Service)
• DAB+ to DAB+ Service Following
• FM linking (automatic DAB+/FM switching (if signal available)
• Station memory: 18 program memory locations
• Automatic ensemble/service storage
• Alphabetical station search function
• PTY search function
• Service search function
• Phantom power for DAB antenna selectable (on/off)

Bluetooth

• Integrated BLUETOOTH® module
• Wide Band Speech Technology
• Hands-free function: HFP (Hands Free Profile) compatible
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music streaming control: AVRCP (Audio/Video Remote Control Profile) version 1.5 compatible
• Advanced BLUETOOTH® technology
• Connection: SSP (Secure Simple Pairing) support
• Individual profile connection: hands-free function and music streaming
• Phone book: Automatic phone book transfer
• Direct dial keys: 4 memory locations per phone
• Registration of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name display
• Automatic call answering
• Call list: dialed number / answered calls / missed calls calls
• Redial function
• Voice volume setting: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display of GSM signal strength
• Display of battery charge level
• Menu language selection: 24 menu languages
• Firmware updatable
• Microphones included

Made for iPod / iPhone

• Compatible with iPod/iPhone: Made for iPod touch 6th/5th Gen., iPod nano 7th Gen., iPhone X, iPhone 8 and 8 Plus, iPhone 7 and 7 Plus, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection: KCU-471i required (optional available)
• Possible selection: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Alphabetical search
• Album cover display
• Direct up / down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Album, All
• Repeat function
• Charge function

Connectivity

• Works with Apple CarPlay (CarPlay-enabled smartphone required)

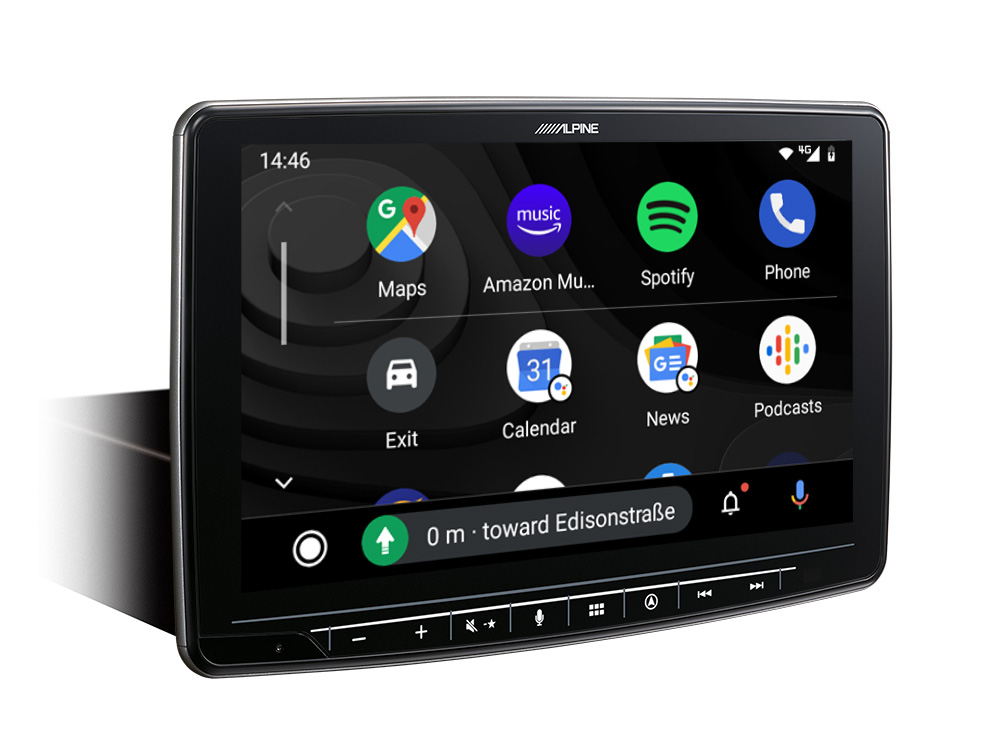

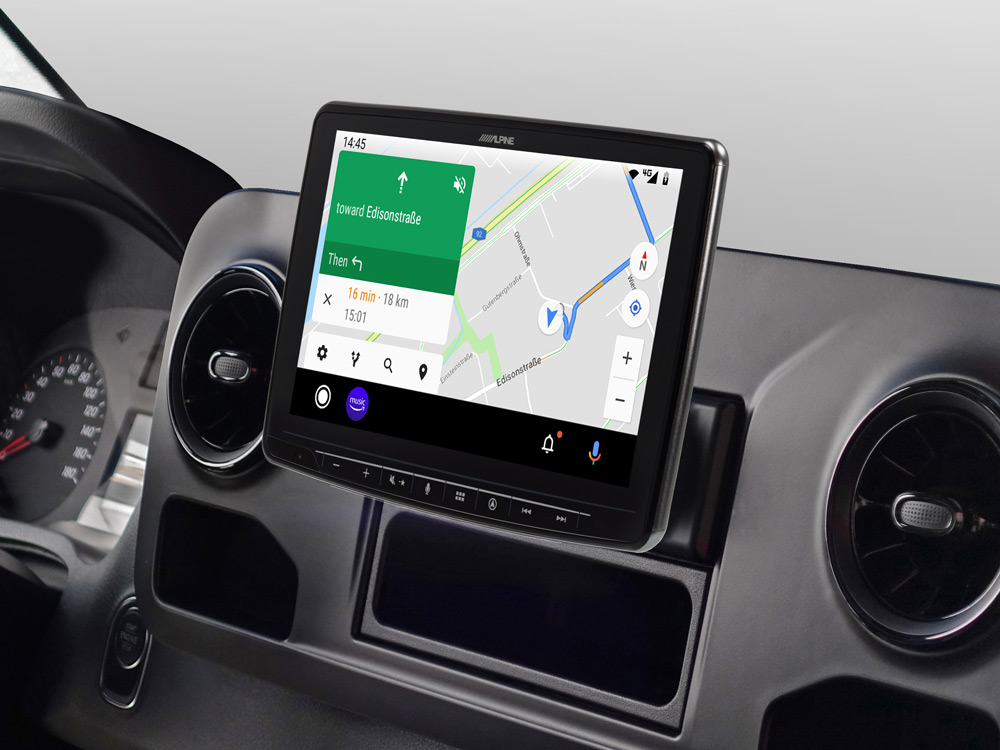

• Works with Android Auto (Android Auto-enabled smartphone required)

Online navigation functions

• Maps: 48 countries (Western and Eastern Europe)
• Menu languages: 29 languages
• Voice guidance in 29 languages, 15 languages for text-to-speech (TTS)
• Advanced address search
• Postcode search
• Free search
• Search with  Word pieces

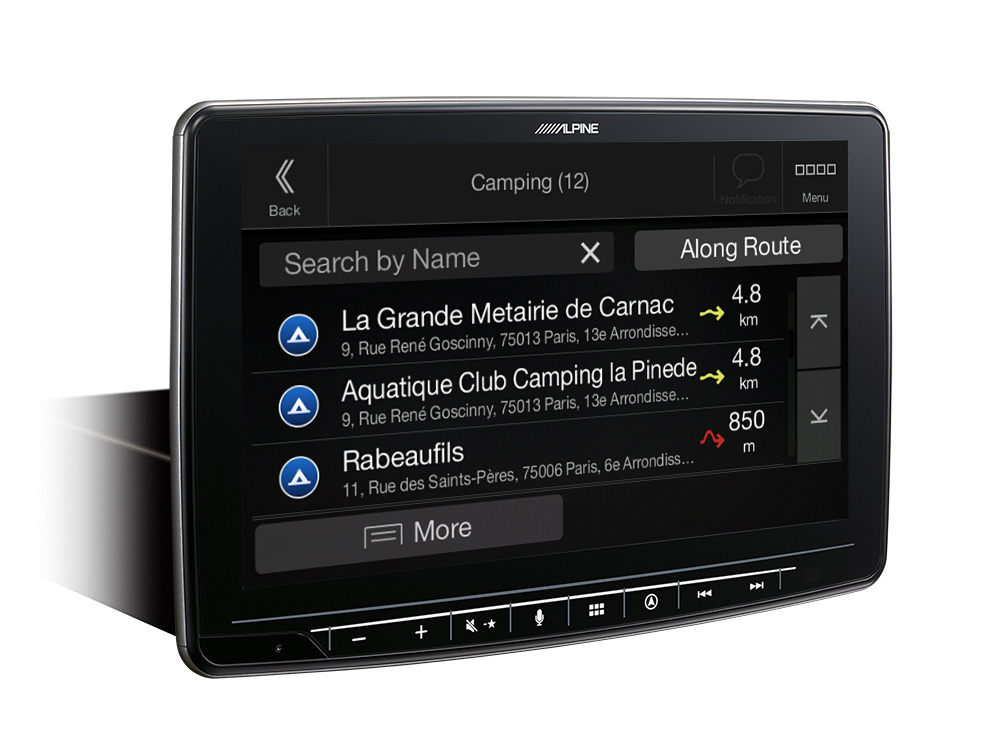

• Extended POI functions
• Smart routes: use of historical traffic data
• Fast route calculation
• Extended route planning
• ECO route guidance
• 7 alternative routes to choose from
• Extended TMC mode
• Map display: 2D top view, 2D north orientation, 3D
• 3D city maps: 3D building views
• Display of elevation profiles
• 3D motorway junctions: 3D display of motorway junctions
• Lane instructions
• Tunnel mode
• Motorway mode
• Navi Mix Mode
• Text-to-Speech
• Direct dialing by phone from POI data
• Hybrid Sensor: GPS, GLONASS, Gyro sensor, vehicle speed pulse

USB port

• USB port on the back
• Music playback formats: FLAC/MP3/WMA/AAC
• Video playback: MP4  Compatible
• File / Folder name search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random play
• Repeat function

Sound tuning

• BASS ENGINE™ Pro
• BASS ENGINE™ SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 4 V preamp output
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band parametric equalizer (separate front/rear))
• 6-channel time correction
• Digital crossover
• Adjustable sound settings according to vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App"-Ready

General

• Output power: Max. power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 9-inch capacitive WVGA high resolution display
• White LED backlight
• Touchscreen with slide function / drag and scroll function
• Individually customizable favorites screen
• 2 user profiles can be created
• High-quality audiophile design
• Preamplifier: 3 PreOuts (4 V, front / rear / Subwoofer)
• AUX-In: 1x A/V input (3.5 mm jack connection)
• Suitable for steering wheel remote control
• Vehicle Display Interface Ready (UART connection)
• Navigation mix announcement
• Camera Connection & Built-in Controls for Multi-View Cameras
• Rear view camera guide lines
• Rear view camera with instant start function (immediate display of the rear view camera when the system starts)
• Direct camera access in the menu
• Simple Mode & Info Mode display
• Visual EQ
• Live contrast adjustment
• Menu language: 24 languages (for AV & Bluetooth)
• Time
• Automatic dimmer
• Anti-theft protection with numeric code
• Firmware updateable
• Antenna control remote (on/off)
• Remote turn-on
• HDMI input (special Alpine HDMI connection cable required)
• Start-Stop Ready

Mounting material for Mercedes Sprinter W907 (VS 30) included

• Includes steering wheel remote control interface, wiring harness, mounting bracket and plastic cover
• Includes Quadlock connector
• Includes antenna adapter with phantom power

Specifications

Screen

• Screen size: 23 cm (9-inch) capacitive WVGA display
• LCD type: Transparent Type TN LCD
• Working system: TFT Active Matrix
• Number of pixels: 1,152,000 pixels (800 x 480 x 3)
• Lighting system: White LED backlight
• Effective number of pixels: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max Power Output: 4x 50 W

FM Tuner

• Frequency range: 87.5 - 108.0 MHz
• Mono usage sensitivity: 8.1 dBf (0.7 µV / 75 Ohm)
• 50 dB sensitivity: 12 dBf (1.1 µV / 75 Ohm)
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S/N): 65 dB
• Stereo channel separation: 35 dB
• Same frequency fluctuation: 2 dB

MW Tuner

• Frequency range: 531 - 1,602 kHz
• Sensitivity (IEC standard): 25.1 µV / 28 dBf

LW tuner

• Frequency range: 153 - 281 kHz
• Sensitivity (IEC standard): 31.6 µV / 30 dBf

USB

• USB requirements: USB 2.0
• Max. Power consumption: 1,500 mA (CDP support)
• USB class: Playback from device / mass storage
• File system: FAT 16/32
• MP3 decoding: MPEG-1/2 AUDIO Layer-3
• WMA decoding: Windows Media™ Audio
• AAC decoding: ACC-LC format ′′.m4a′′ file
• Flac decoding: Free Lossless Audio Codec flac/fla
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 20 kHz ±1 dB *Depending on encoding software and bit rate
• Total Harmonic Distortion - T.H.D. (@ 1 kHz): 0.008%
• Dynamic range (@ 1 kHz): 95 dB
• Signal-to-noise ratio: 100 dB
• Channel separation (@ 1 kHz): 85 dB
• GPS / Glonass
• GPS/Glonass compatible antenna included

Bluetooth

• BLUETOOTH version: Bluetooth V3.0
• Output power: +4 dBm max. (performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP: (Advanced Audio Distribution Profile)
• AVRCP: (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0° or 180°
• BASS ENGINE SQ: 5 modes, level 0 to +6
• High pass filter (frequency): 20/25/31.5/40/50/63/80/100/125/160/200 Hz
• High pass filter (slope): Off / -6 / -12 / -18 / -24 dB/Oct.
• High pass filter (gain): -12 to 0 dB
• Low pass filter (frequency): 20/25/31.5/40/50/63/80/100/125/160/200 Hz
• Low pass filter (slope): Off / -6 / -12 / -18 / -24 dB/oct.
• Low pass filter (gain): -12 to 0 dB
• Time correction: 0.0 to 336.6 cm (3.4 cm steps) or 0.0 - 9.9 ms (0.1 ms steps)
• Dual HD EQ - 9 band parametric equalizer for front + rear
• Parametric equalizer (band 1): 20 - 100 Hz
• Parametric equalizer (band 2): 63 - 315 Hz
• Parametric equalizer (band 3): 125 - 500 Hz
• Parametric equalizer (band 4): 250 - 1k Hz
• Parametric equalizer (band 5): 500 - 2k Hz
• Parametric equalizer (band 6): 1k - 4k Hz
• Parametric equalizer (band 7): 2k - 7.2k Hz
• Parametric equalizer (band 8): 5.8k - 12k Hz
• Parametric equalizer (band 9): 9k - 20k Hz
• Parametric equalizer (gain): ±14
• Parametric equalizer (bandwidth): 1, 2, 3
• Source volume: ±14
• HDMI
• Input format 480p/VGA

General

• Power supply: 14.4 V.DC (11-16 V permissible)
• Preamp output (without clipping): 4 V / 10 kOhm
• Maximum installation angle (black box): 30° to the horizontal

Dimensions

• DIN dimensions: 1-DIN housing and 9-inch capacitive touchscreen
• Housing dimensions (W x H x D) mm: 178 x 50 x 160 mm
• Monitor dimensions (W x H x D) mm: 235.2 x 152.2 x 19 mm

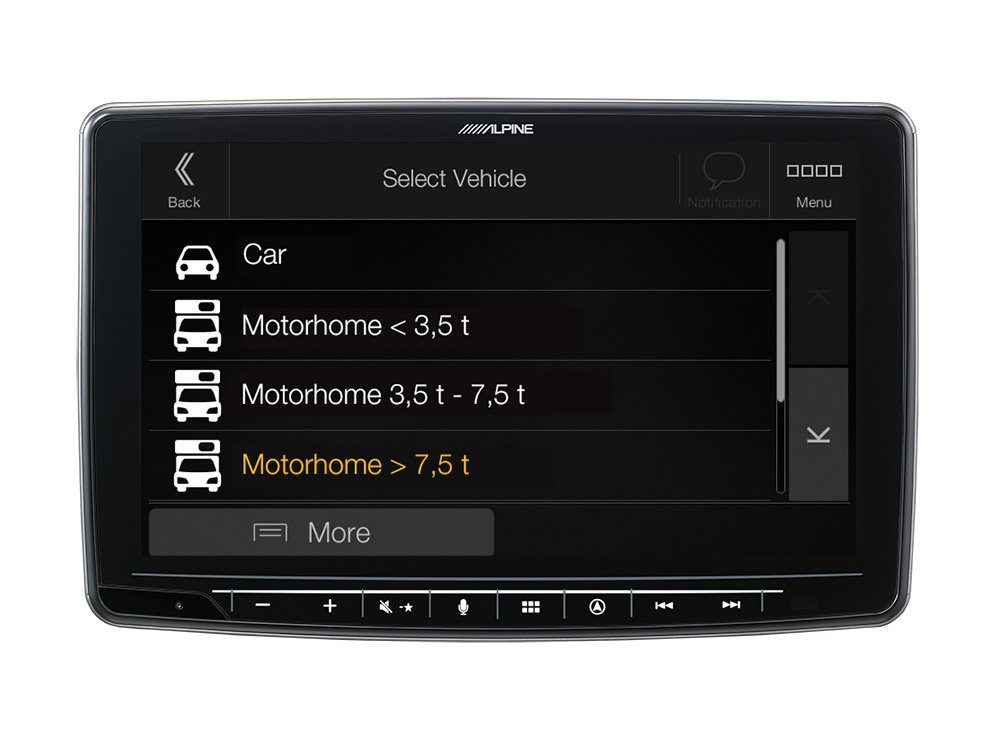

The motorhome, caravan, camper and truck software takes the following restrictions and limitations into account when calculating the route and gives corresponding warnings during the journey for 40 countries*:

• General traffic restrictions for trucks (e.g. B. environmental zones)
• Traffic restrictions for all categories of dangerous goods
• (i.e. explosives, flammable substances)
• Indication of dead ends with no turning possibility for trucks
• Restrictions for trailers
• Restrictions on vehicle length
• Restrictions on vehicle width
• Restrictions on vehicle height
• Restrictions on total weight
• Restrictions on tunnels, bridges, mountain passes and passages
• Max. permissible weight for bridges
• Andorra, Belgium, Bulgaria, Denmark, Germany, Estonia, Finland, France, Gibraltar, Greece, Great Britain, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Croatia, Lithuania, Liechtenstein, Latvia, Luxembourg, Monaco, Netherlands, Norway, Austria, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Czech Republic, Turkey, Hungary, Ukraine

Compatible vehicles

• Mercedes-Benz Sprinter W907 (VS 30) 2018 →

This product is compatible for Mercedes Sprinter (W907) with 1-DIN radio (E1D), vehicles with radio preparation (ER0) also require the KWE-S907 adapter.

Vehicles with original radio and E-Call system: The E-Call system remains functional. However, in some cases an error message may be displayed (vehicles with radio preparation are excluded).
