Ampire KV-KANGOO - Rear view camera for Kangoo 07-21, Citan 12-21

Product information Ampire rear view camera for Kangoo 07-21, Citan 12-21 (with wing doors)

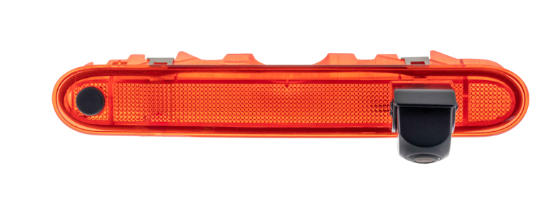

Vehicle-specific rear view camera to replace the factory brake light glass. Suitable for the following vehicles:

• Renault Kangoo 2007-2021 with wing doors (no tailgate)
• Mercedes-Benz Citan 2012-2021 with wing doors (no tailgate)

Technical data

•  Image display mirrored
•  Image sensor: CMD-III. 1/4" High performance Digital Super Clarity Image Sensor
•  Resolution 648x488 pixels
•  Viewing angle 170° diagonal
•  Image format: NTSC
•  580 line resolution
•  IP68 waterproof
•  Operating voltage: 9-16 Volt DC
•  Power consumption: max. 150mA
•  Operating temperature: -30° to 70°C
•  Minimum illumination: 0 lux
•  Cable length: 10 meter cable with 4-pin MINI-DIN connectors
•  E approval E9*10R06/00*22328*00
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

Scope of delivery

• Brake light rear view camera
• AK1001
• AK1014
• AK1020

Installation instructions

Insert a W5W light bulb into the socket provided (included in delivery). Otherwise, the brake light will be displayed as defective in the on-board computer.
Never use the original W21W bulb, as the camera may be damaged by overload.

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor. This item does not fit vehicles with rear doors.
