Ampire KV-VITO-3G - Rear view camera for Mercedes Vito (W447)

Product information Ampire rear view camera for Mercedes Vito (W447) with tailgate

Vehicle-specific rear view camera for the Mercedes-Benz Vito 2016 (W447) with tailgate.
The KV-VITO-3G simply replaces the factory brake light glass.
In the second generation of this camera, an improved camera chip with significantly higher resolution and higher light sensitivity was used.

Technical data

•  Image display mirrored
•  Image sensor: CMD-III. 1/4" High performance Digital Super Clarity Image Sensor
•  Resolution 648x488 pixels
•  Viewing angle 170°
•  Image format: NTSC
•  580 line resolution
•  IP68 waterproof
•  Operating voltage: 9-16 Volt DC
•  Power consumption: max. 150mA
•  Operating temperature: -30° to 70°C
•  Minimum illumination: 0 Lux
•  Cable length: 10 meters with MINI-DIN connectors
•  E approval E9*10R06/00*22328*00
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

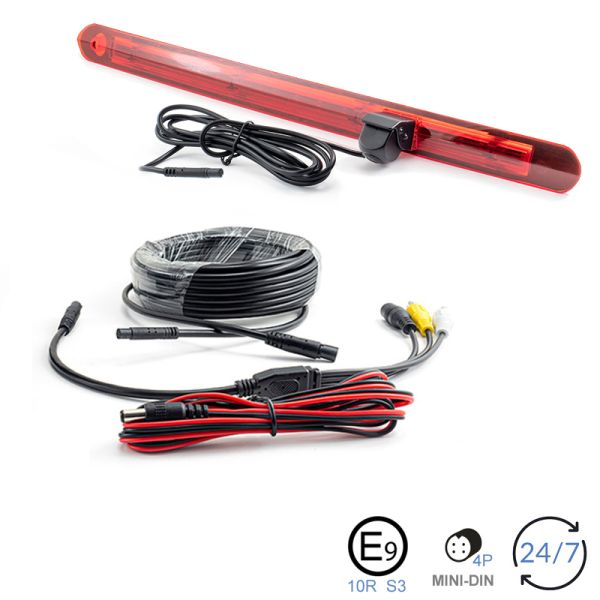

Scope of delivery

• Rear view camera
• AK1001
• AK1014
• AK1020

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor. This item does not fit vehicles with rear doors.
