Ampire KVA-VITO-H - Rear view camera for Mercedes Vito (W447) with tailgate

Product information Ampire KVA-VITO-H - Rear view camera for Mercedes Vito (W447) with tailgate

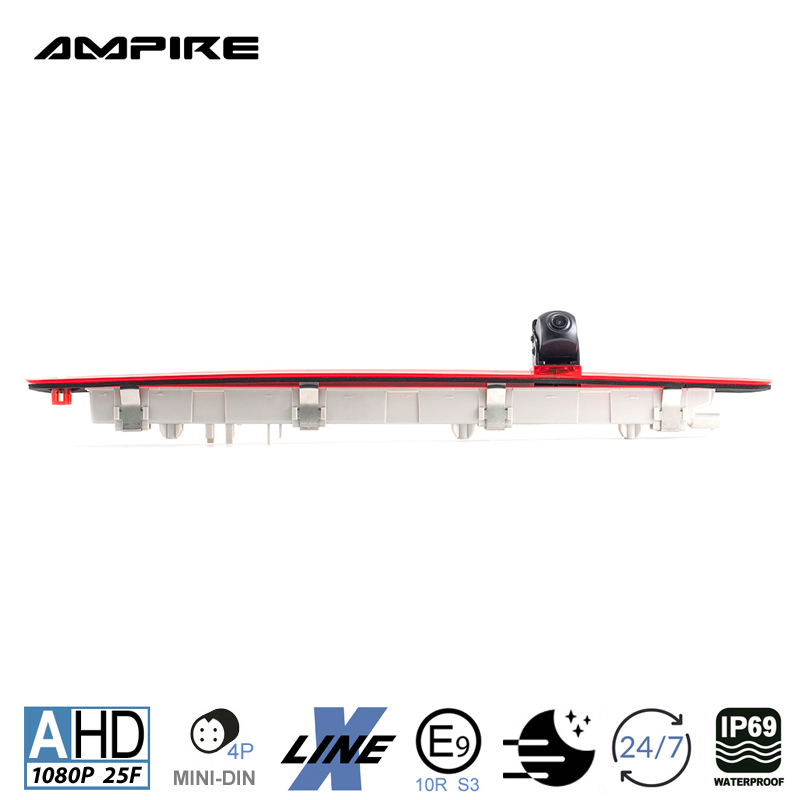

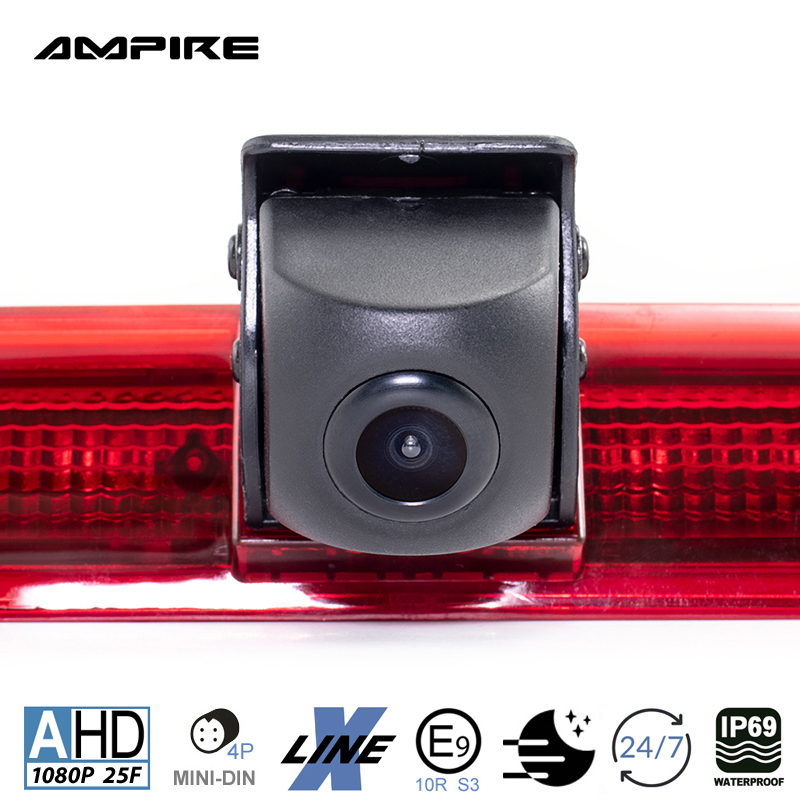

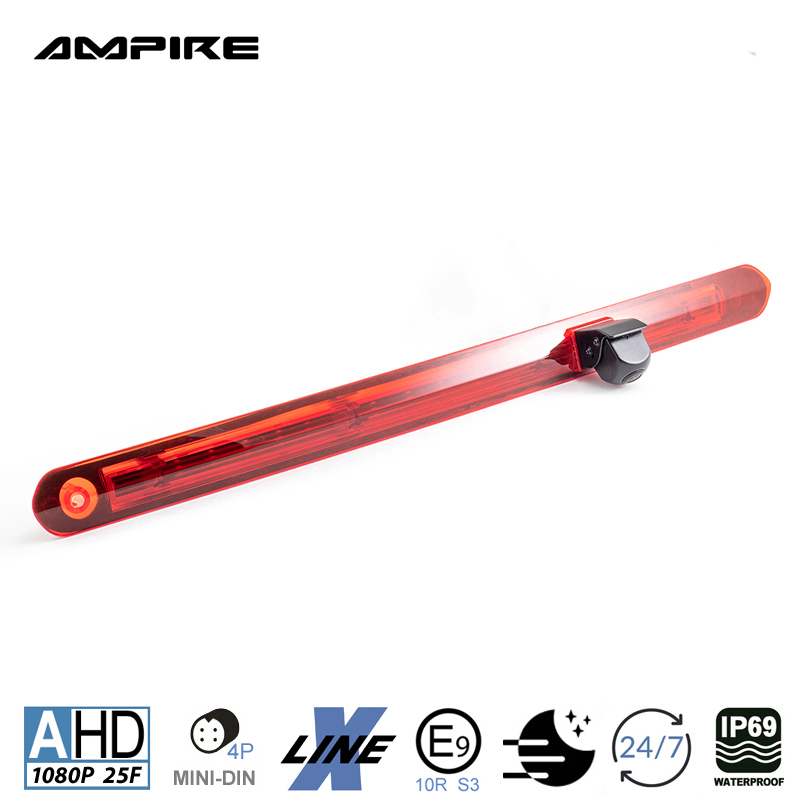

High-resolution AHD rear view camera that is mounted instead of the factory brake light glass.

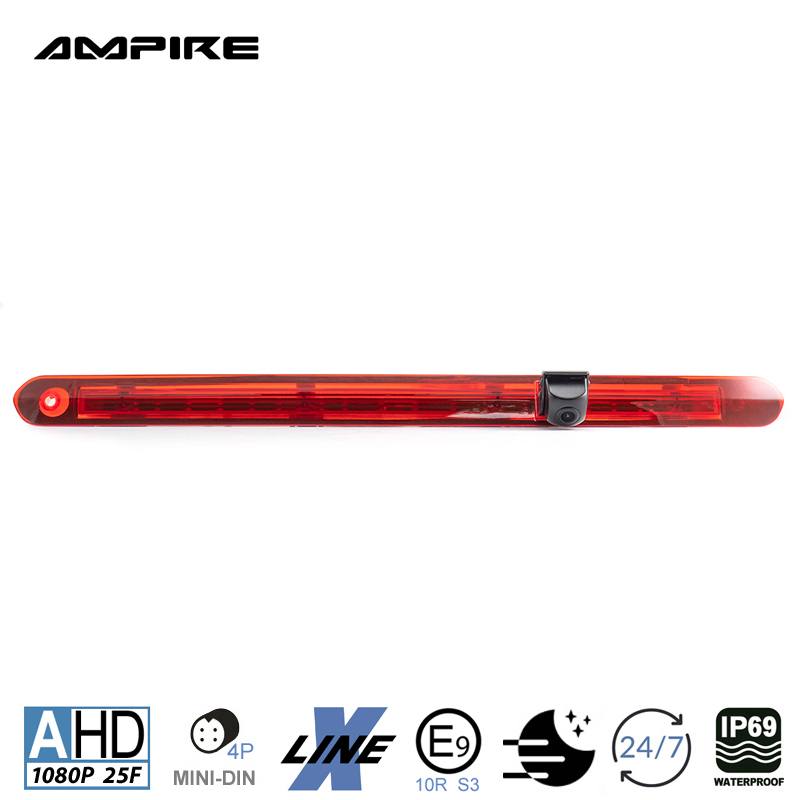

The camera was deliberately not positioned in the middle of the brake light glass so that the camera can also be used when a load carrier is mounted on the tailgate.

Compatibility

•  Mercedes-Benz Vito 2016 (W447) with tailgate

Technical data

•  Video standard AHD 1080P 25F
•  Image sensor: GC2399 (FH8536H)
•  Image sensor size 1/2.7
•  Resolution 1920x1080 pixels
•  3D noise reduction
•  Sequential scanning
•  Minimum illumination: 0.005 lux
•  Signal-to-noise ratio >50dB
•  Automatic white balance
•  Image display horizontal mirrored
•  Guide lines: switched on (can be switched off by disconnecting the cable loop)
•  horizontal viewing angle 155°
•  vertical viewing angle 100°
•  diagonal viewing angle 185°

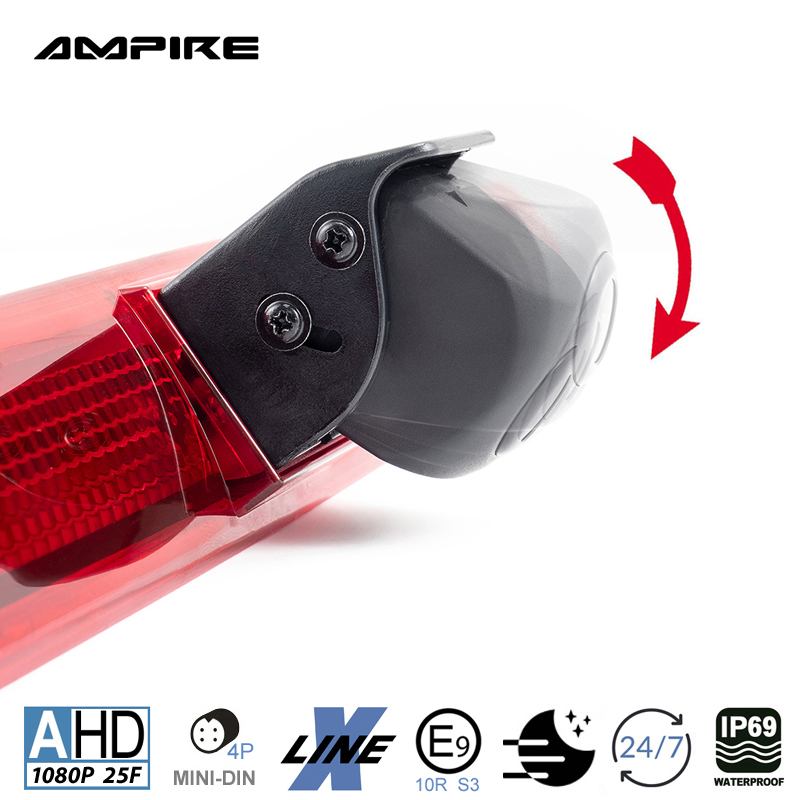

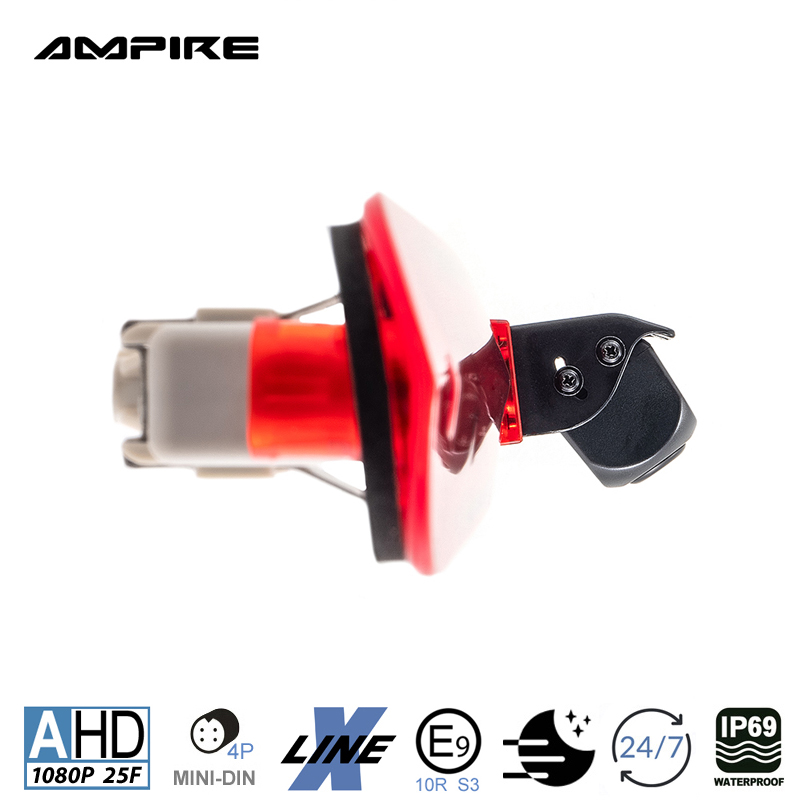

•  camera head adjustable vertically up to 20°
•  protection class IP69 waterproof
•  operating voltage: 9-16 volts DC
•  power consumption: max. 75mA
•  Operating temperature: -20° to 70°C
•  Color: black
•  Cable length: 10 meters with 4-pin MINI-DIN connectors
•  E approval E9*10R06/00*22328*00
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

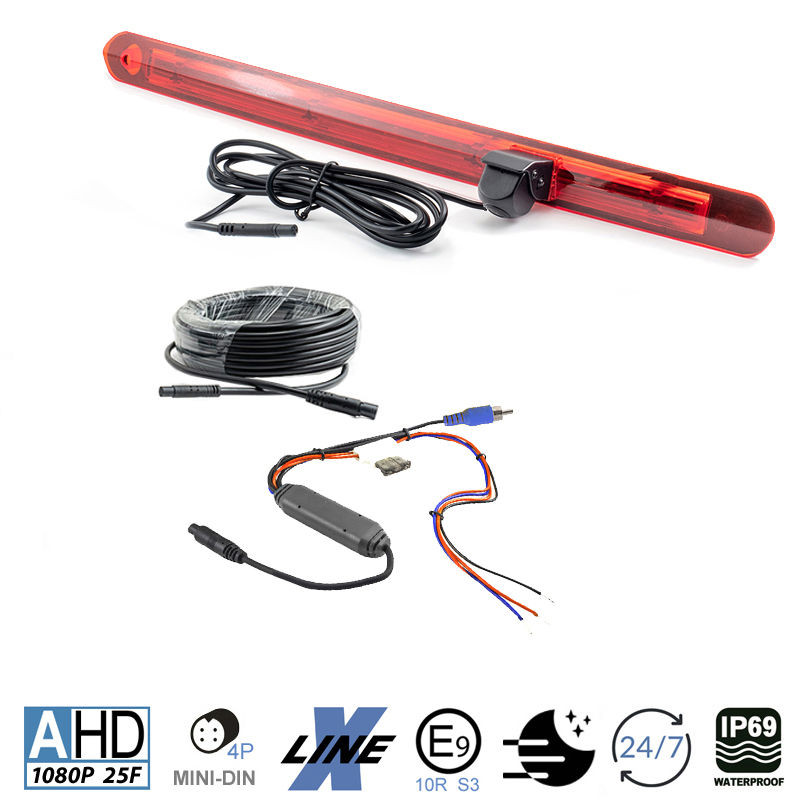

Scope of delivery

• Rear view camera
• AK1035 power supply
• AK1034 mini-DIN extension cable 10m

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.

Note on ordering

This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second.
This camera can only be connected to compatible monitors, car radios or interfaces.
If the camera input on your monitor can only display a video signal in CVBS, FBAS or NTSC, this AHD camera is unsuitable and you should then use the identical CVBS camera with NTSC video signal.
This article does not fit vehicles with rear doors. From vehicles built in 2023, an error message may be displayed in the cockpit after installation that the brake light is defective.
