Product information NavLinkz VSC-E-ME15-B - Handle bar camera Mercedes Vito W447 with OEM camera

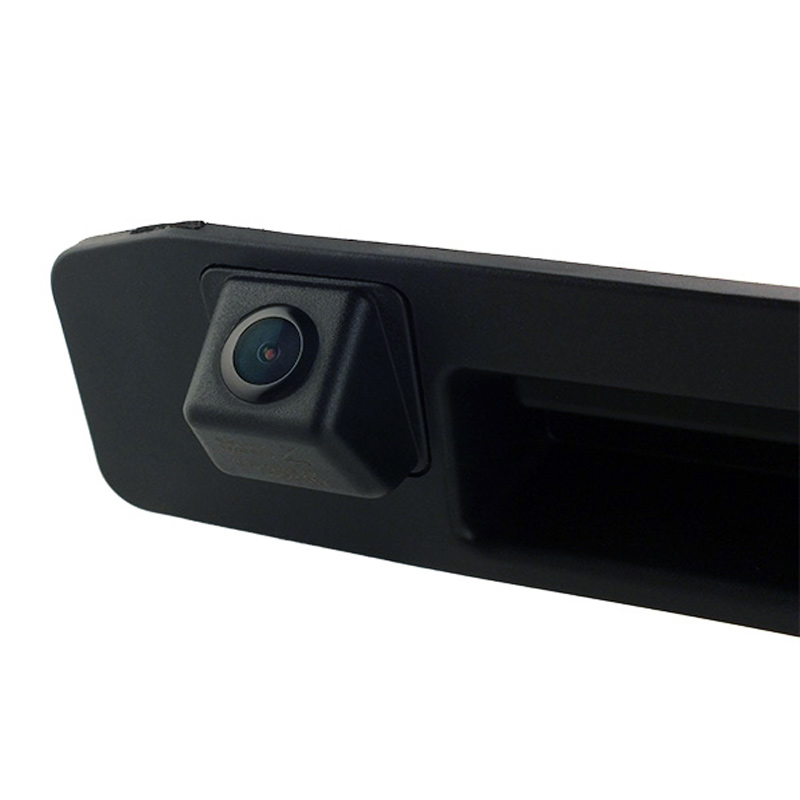

NavLinkz vehicle-specific replacement rear door handle with integrated rear view camera and switchable distance lines.
This set is for replacing the digital factory rear view camera of the W447/W448 when the Audio30/Audio40 (Garmin versions) is replaced with a retrofit head unit.
The set includes cable adapters and connectors that enable the use of the factory camera cable and power supply.
Including factory trunk opening button - this is required when replacing a factory rear view camera.
Product features

• 1/3 inch CMOS NTSC sensor (PC3089)
• Resolution 720 x 480 pixels (700 TV lines)
• 0.1 lux light sensitivity
• F1.2 aperture
• Angle diagonal 170°, horizontal 130°, vertical 90°
• Mirrored image (fixed)
• Distance lines that can be switched off (from the factory switched on)
• Protection class IP68

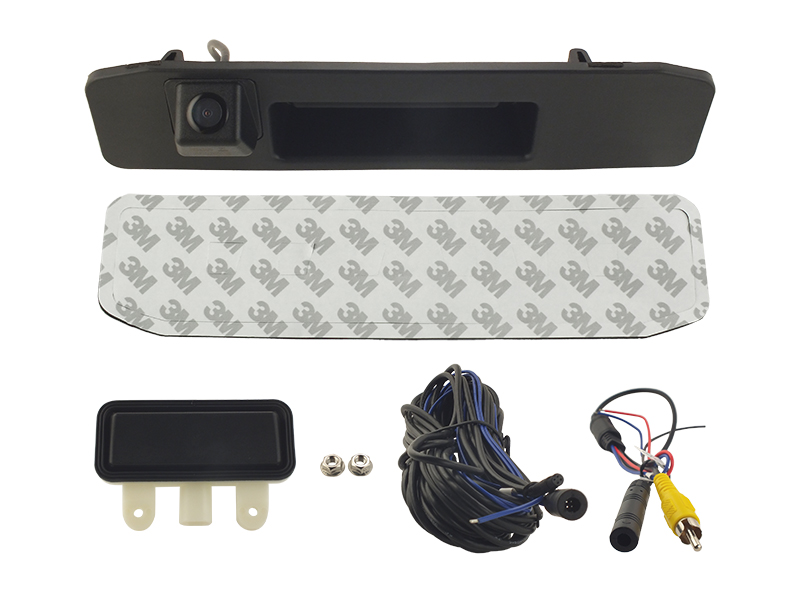

• Black rear door handle and camera

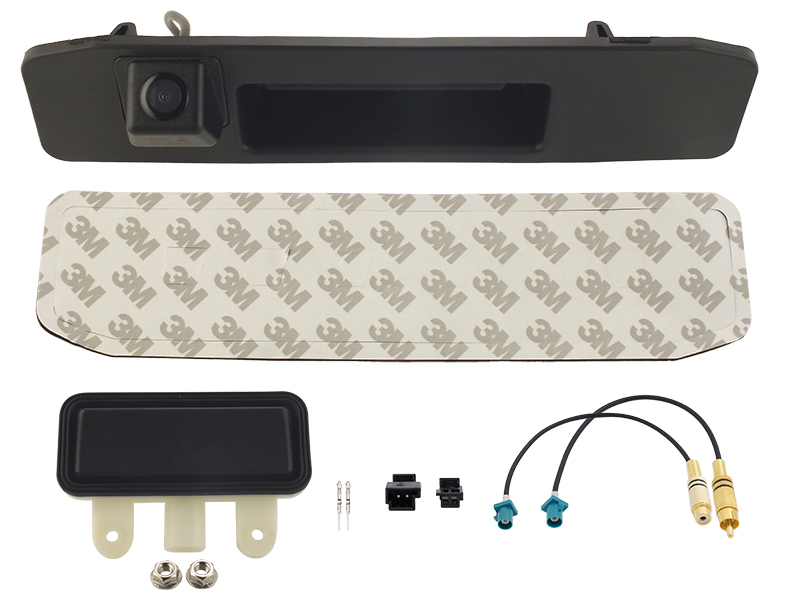

• Incl. Factory trunk opening button
• Adapter Fakra plug to RCA socket (for rear)
• Adapter Fakra plug to RCA plug (for front)
• MQS pins and 2 housings (power tap)
• 1.8m camera cable with 4-pin BM system cable socket (diameter 5mm)
• 8m system extension cable (4-pin BM) with wire for signal transmission
• System connection cable 4-pin BM with RCA plug and fuse

Compatibility

• Mercedes BenzVito (W447/448) with Tailgate
• For vehicles with factory rear view camera

Dimensions

• Complete 215 x 53 x 65mm (W x H x D)
• Installation opening 150 x 42mm (W x H)
• Hole spacing 170mm

Technical data

• Operating voltage 12V DC (6V~16V)
• Current consumption 40mA
• Power consumption 0.5W
• Operating temperature range -20°C to +70°C
• Storage temperature range -40°C to +85°C
• Weight including cable approx. 317g
