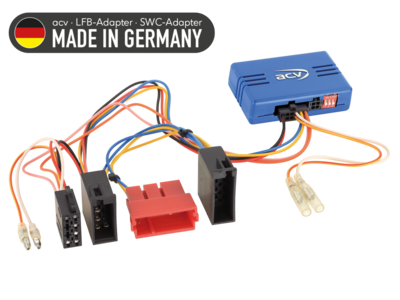

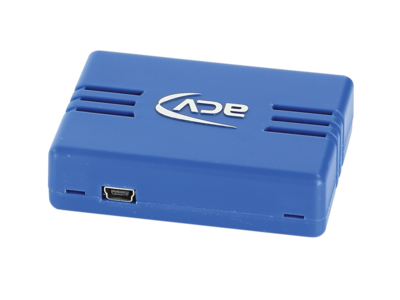

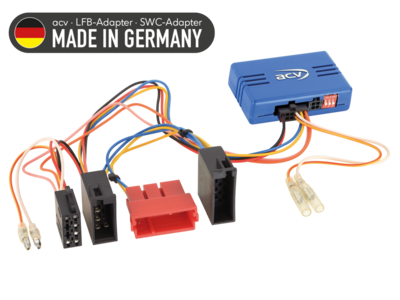

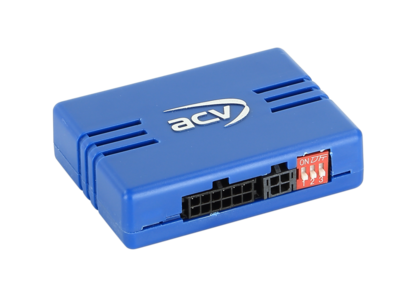

ACV 42a-1190-001 - LFB for Mercedes/VW

Steering wheel remote control adapter Mercedes / VW

Keep the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment and the range of functions and software of the aftermarket device, individual operating functions may be omitted or replaced by other functions.
Compare the adapter plugs shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel remote control for functionality.

Suitable for the following vehicles:

• Mercedes A-Class (W169) 10/2004 - 04/2012
• Mercedes A-Class (C169) 11/2004 - 07/2011
• Mercedes B-Class (T245) 06/2005 - 06/2011
• 2002 - 05/2005
• Mercedes E-Class (W210) 06/1999 - 12/2002
• Mercedes SL-Class (R230) 08/2001 - 02/2006
• Mercedes SLR (C199) 13/2003 - 12/2009
• Mercedes Sprinter (W906) 04/2006 - 08/2013
• Mercedes Sprinter (W906) 08/2013 - 05/2018
• Mercedes Vito/Viano (W639) 07/2003 - 08/2010
• Mercedes Vito/Viano (W639) 09/2010 - 03/2014

VW

• VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
• VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in terms of functions.

• pink: +12V ignition terminal 15 1.5A max.
• orange: +12V lighting terminal 58 0.1A max.
• white: +12V reverse signal 1.5A max.
• yellow/green yellow/red: Speed signal
• Steering wheel remote control
