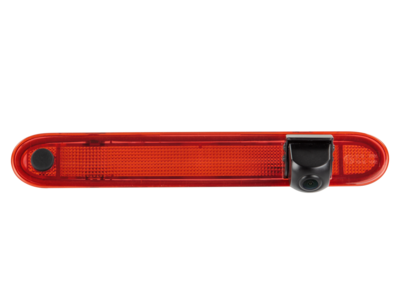

ACV 771190-9001 - Rear view camera for Mercedes Citan/Renault Kangoo

Rear view camera Mercedes / Renault

• Mercedes Citan (W415) 01/2012 - 08/2021
• Renault Kangoo (W) 03/2013 - 12/2020
• Renault Kangoo Rapid (W) 03/2013 - 05/2021
• Renault Kangoo Z.E. (W) 05/2013 - 05/2021
• For replacing the OEM 3rd brake light lens
• With orientation lines / adjustable viewing angle

Product features camera:

• Construction: plastic with metal holder
• Color: black
• Extras: orientation lines via jumper  / adjustable viewing angle
• Sensor type: 1/4" CMOS
• Image system: NTSC color
• Effective pixels: 720 x 576
• Lens: 1, 9mm / F 2.0
• Resolution: 420 TV lines
• Lens angle: diagonal 140°
• Viewing angle: horizontal 115° vertical 80° + 5°
• Dust and water resistant: IP68
• Connection: 4 Pin acv system plug Ø5.2mm
• Operating voltage: +3V DC
• Supply voltage: +12V / + 24V DC voltage > with voltage converter
• Current consumption: 60mA
• Operating temperature range: -30°C - 75° C
• Storage temperature: -40°C - 80°C
• Dimensions: OEM brake light

Connection cable on the camera 1m +/-:

• 4 pin acv system plug(m) Ø5.2mm
• 1 Jumper

Voltage converter +3V:

• 4 pin AC system plug (f) Ø10mm / 4 pin AC system plug (m) Ø5.2mm< /li>

Extension 6.5m +/-:

• 4 pin acv system plug (f) Ø10mm / 4 pin acv system plug (m) Ø5.2mm
• Power cable red 3m +/- wired through: connection to camera / connection reversing light to monitor
• Ground cable/GND black 3m +/- through-wired: Connection body ground/GND to camera / Connection body ground/GND directly to Monitor

Connection cable 20cm +/-:

• 4 pin acv system connector (f) Ø10mm
• red: supply voltage
• black: ground/GND
• Cinch(m) yellow: Video
