NAVLINKZ HDV-MBN7 - Video feeder AHD/FBAS/HDMI for MB MBUX NTG7

The video interface enables the feeding of a rear view camera, an automatic front camera and any two video sources (for side cameras or other retrofit devices, such as USB players, DVB-T2 tuners, ...) to the vehicle manufacturer's factory infotainment system.
The video interface also has an HDMI input that can be used for an HD rear view camera or another HDMI source (e.g. iOS/Android device, laptop, streaming stick).
All video inputs are FBAS and AHD compatible.

Restrictions

CAN bus compatibility - The CAN bus compatibility of the interface may be limited for some vehicles or for individual functions.
This can be noticeable both during installation and later.
The interface with all video inputs can be operated with analog switching signals without being connected to the vehicle CAN bus.
Individual additional functions are not available, see below.
Video-only interface does not feed in audio signals. To feed in audio signals, a factory audio AUX input (if available) or optional products must be used (e.g. FM modulator).
For an HDMI source fed in, audio is output via an analog audio output (3.5mm jack socket).
Factory rear view camera - Automatic switching to the RVC input only occurs as long as reverse gear is engaged.
Optional accessories are required for different switching times.
After-market front camera - Switching to the front camera occurs automatically after the reverse gear is disengaged for 5, 10, 15 or 20 seconds (depending on the OSD menu setting).
Manual switching to the front camera is also possible using the external button.
Guide lines for rear view camera - If the vehicle CAN bus is not fully compatible with the interface or if the connection is analog, the movable guide lines function cannot be used.
Vehicles with active parking assistant system 235 - When using the factory active parking assistant system 235, the camera image cannot be displayed.

Product features

• Video feeder for factory infotainment systems
• 1 FBAS/AHD input for rear view camera
• 1 FBAS/AHD input for front camera
• 2 FBAS/AHD input for side cameras or other retrofit devices (e.g. USB devices, DVB-T2 tuner, etc.)
• All inputs NTSC and PAL compatible
• Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
• 1 HDMI input for HD rear view camera or other HDMI source (e.g. iOS/Android device, laptop, streaming stick, DVB-T2 tuner, etc.)
• Analog audio output for the HDMI source
• Automatic switching to rear view camera input in Reverse gear
• Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
• Adjustable guide lines (fixed or movable) can be activated for the rear view camera (movable guide lines not available for all vehicles)
• Image free while driving (ONLY for input video sources)

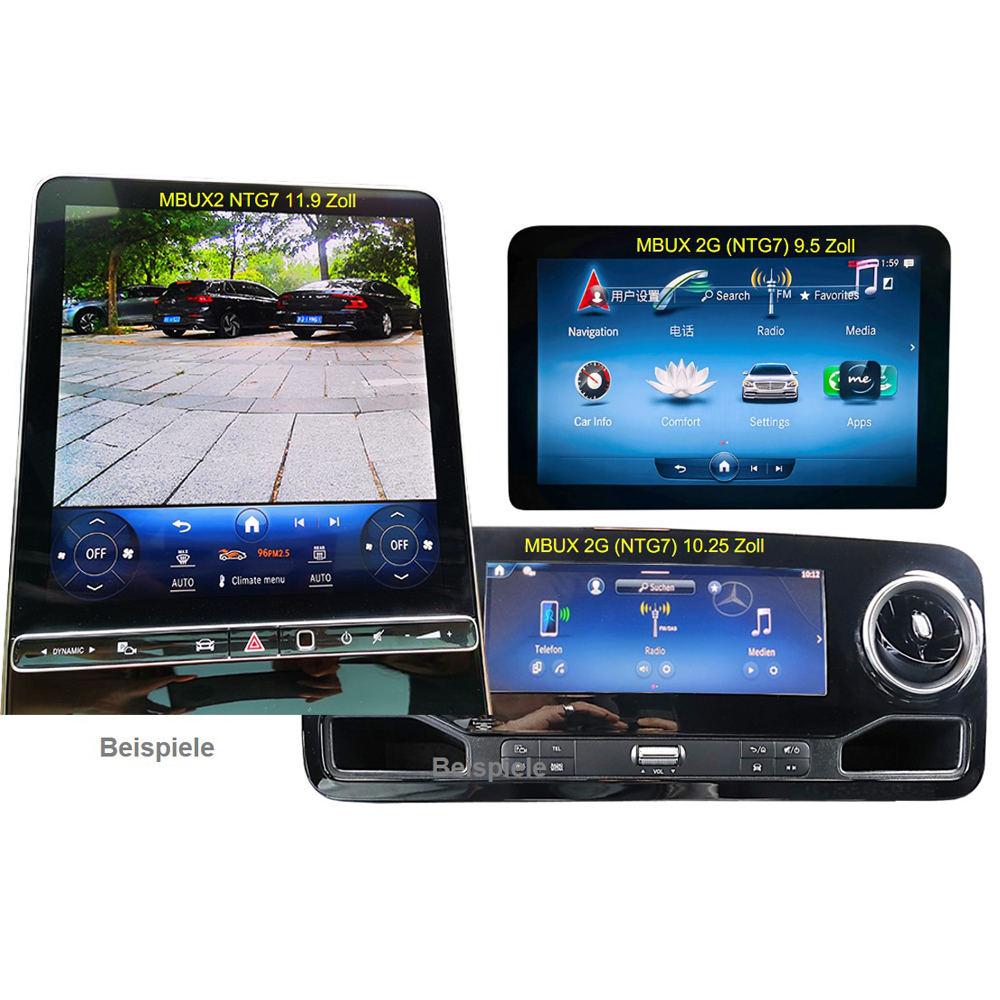

Compatibility

• A-Class (W177), MBUX2 NTG7 multimedia system with 10.25 inch monitor
• B-Class (W247), MBUX2 NTG7 multimedia system with 10.25 inch monitor
• C-Class T-Model/Estate (S206) from 06/2021, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• C-Class All-Terrain (X206) from 10/2021, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• CLE Coupé (C236) from 11/2023, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• CLE Cabrio (A236) from 2024, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• E-Class (W214) from 08/2023, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inches Monitor
• E-Class T-Model/Estate (S214) from 08/2023, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• E-Class All-Terrain (X214) from 09/2013, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• EQE (V295) from 03/2022, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• EQE SUV (X294) from 12/2022, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• EQS (V297) from 08/2021, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• EQS SUV (X296) from 08/2022, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• GLC Coupé (C254) from 07/2023, MBUX2 NTG7 Multimedia system with 9.5 or 11.9 inch monitor
• GLC SUV (X254) from 07/2022. MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• GT AMG Coupé (C192) from 10/2023, MBUX2 NTG7 multimedia system with 9.5 or 11.9 inch monitor
• SL AMG (R232) from 11/2021, MBUX2 NTG7 multimedia system with 9.5 or. 11.9 inch monitor
• Sprinter (W907/W910), MBUX2 NTG7 multimedia system with 10.25 inch monitor
• Vito (W447) MBUX2 NTG7 multimedia system with 10.25 inch Monitor

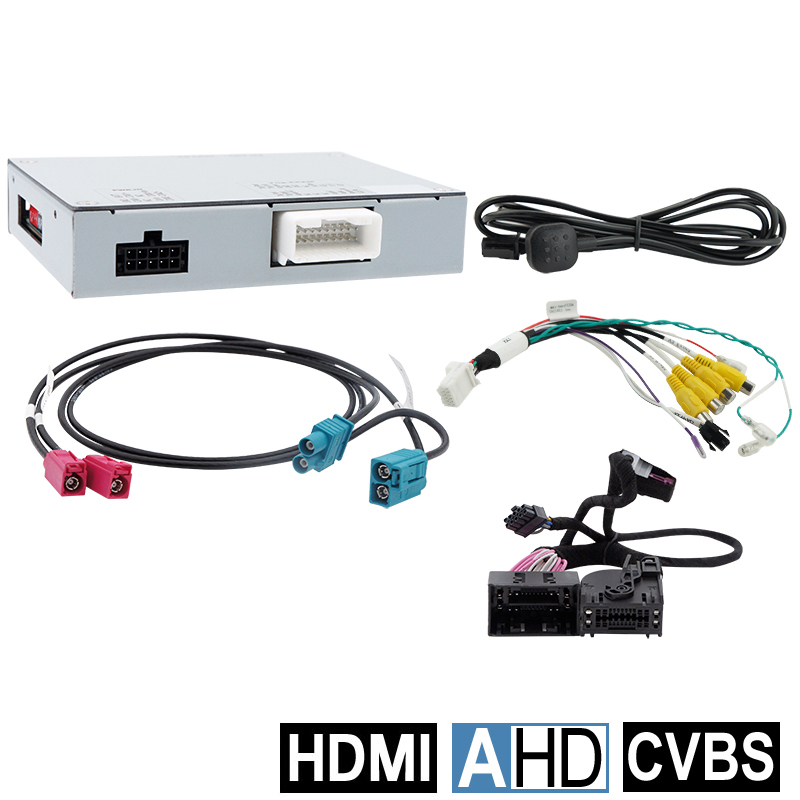

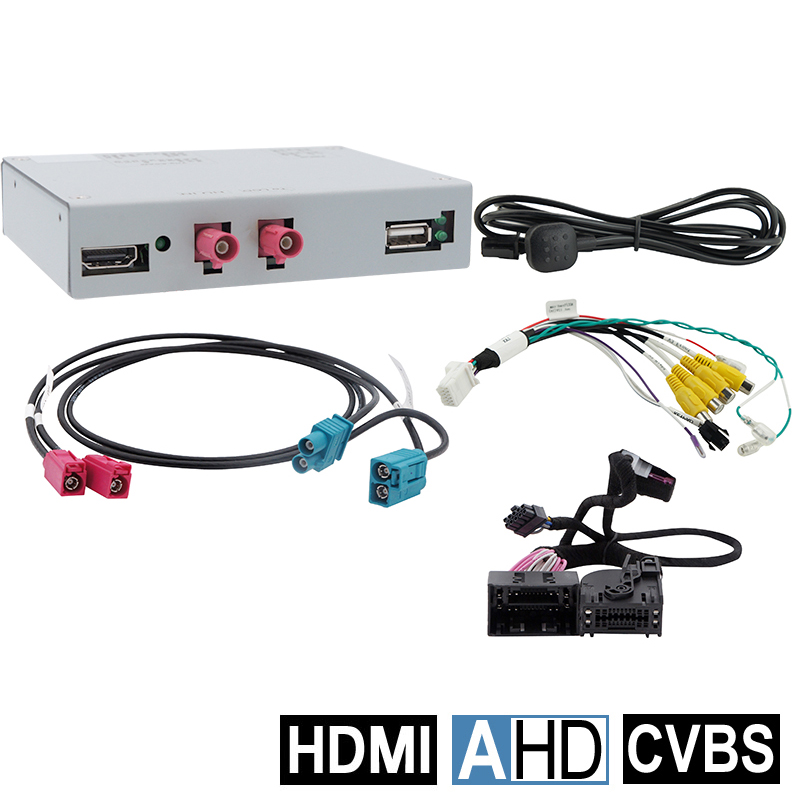

Connections

• Image input: Double Fakra
• Power and CAN bus: Open cable ends
• Video inputs (2x): Cinch sockets
• Rear view camera input: Cinch socket
• Front camera input: Cinch socket
• Trigger lines (4x): Open cable ends
• Additional video input: HDMI
• HDMI audio output: 3.5mm jack socket

Technical Data

• Operating voltage - 12V DC (9~16V)
• Quiet current - approx. 5mA
• Current consumption - 280mA
• Video input - 0.7~1V
• Video input signal types - FBAS/AHD/HDMI
• Signal standards FBAS/AHD - NTSC/PAL
• Temperature range - -40°C to +85°C
• Dimensions video box - 117 x 25 x 109mm (W x H x D)
